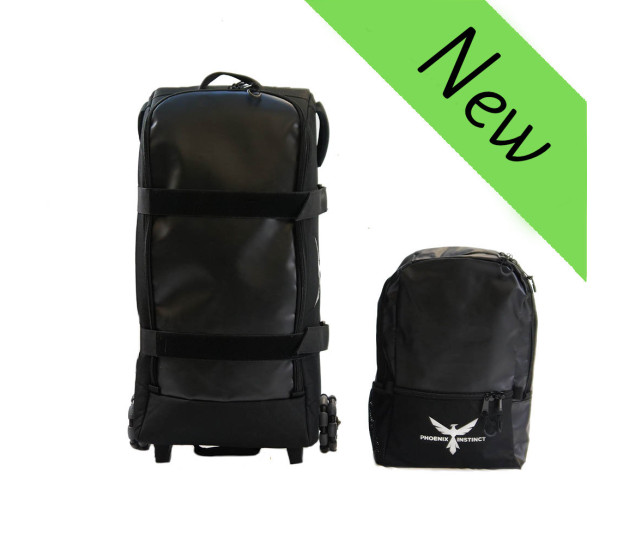

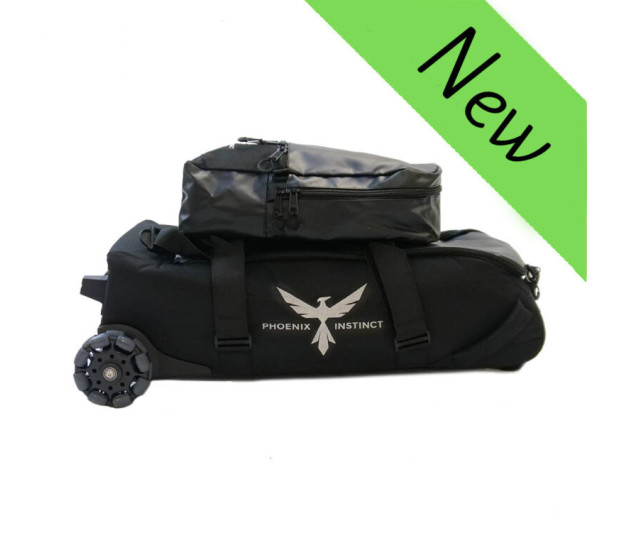

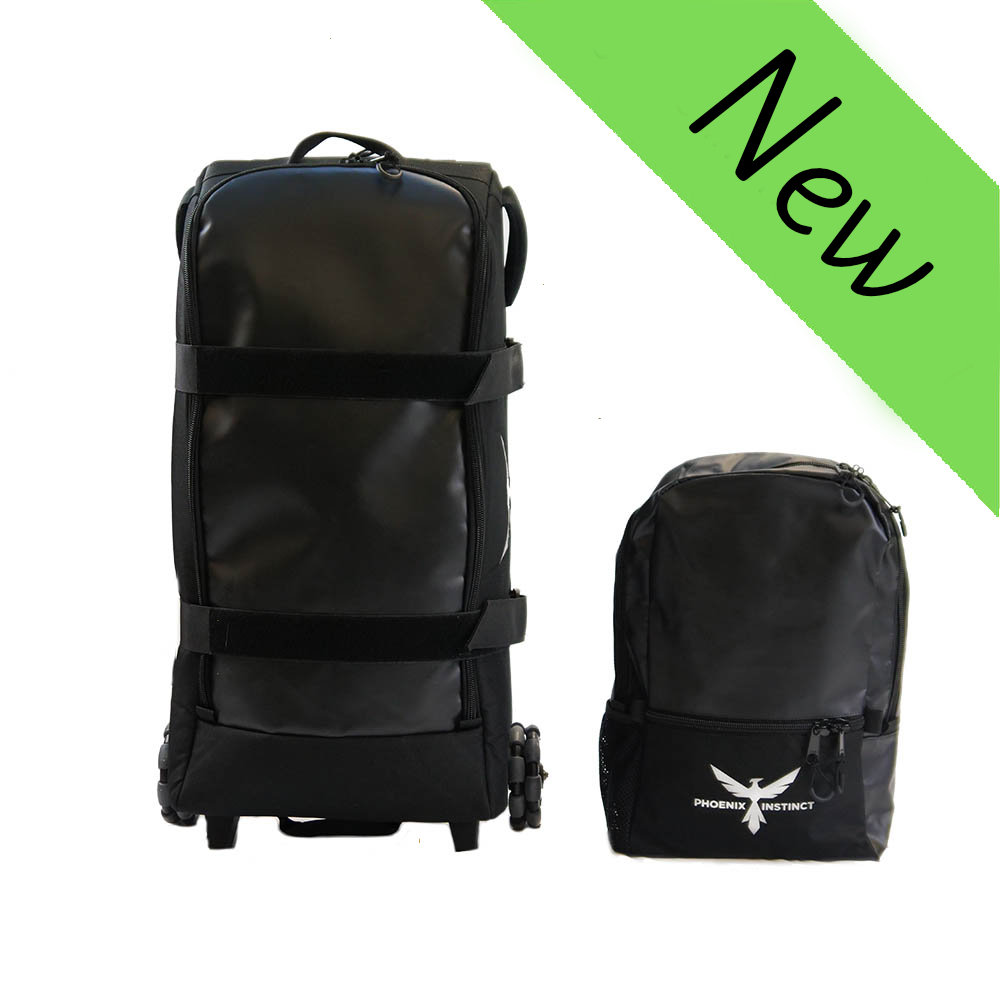

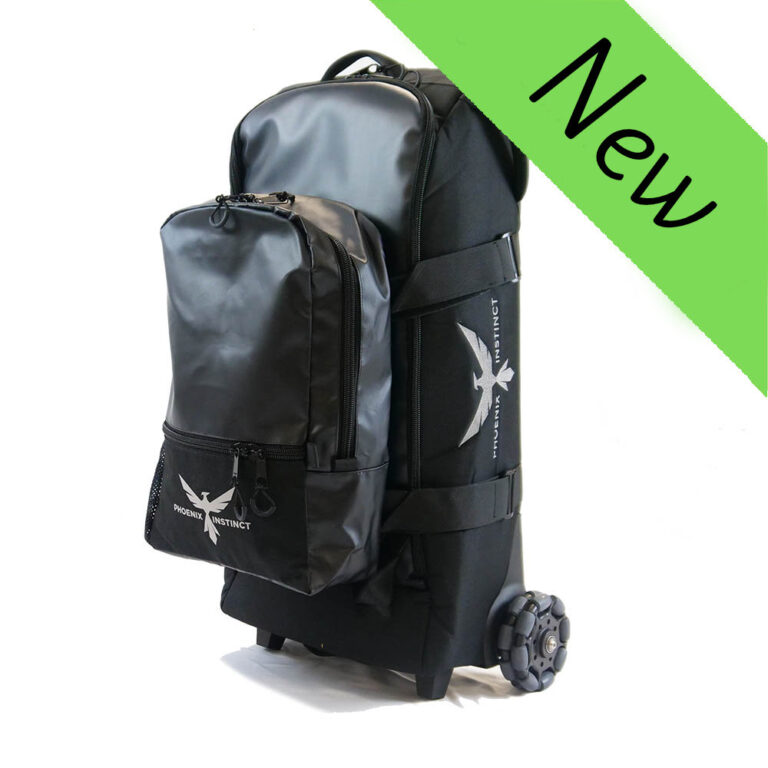

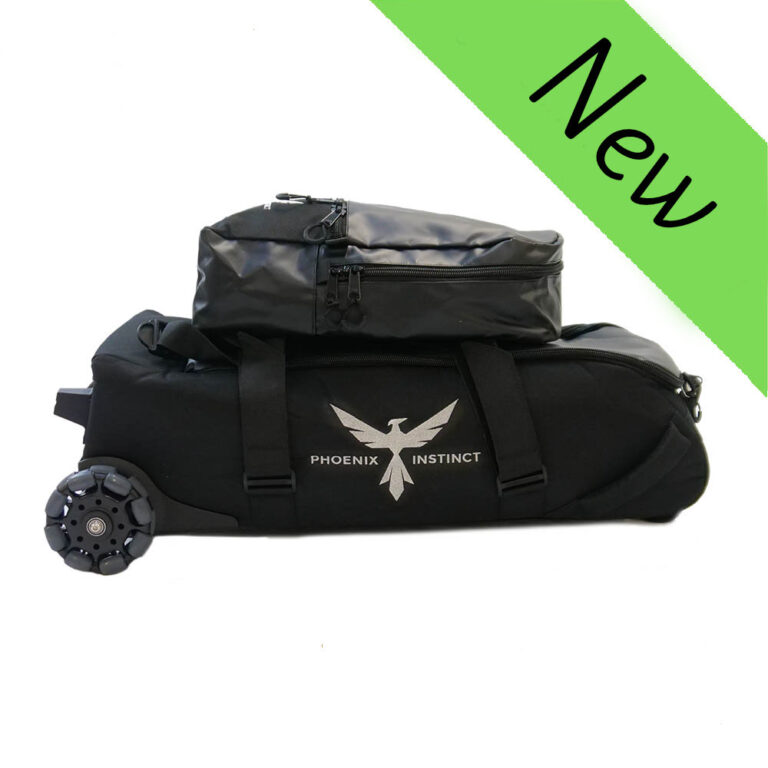

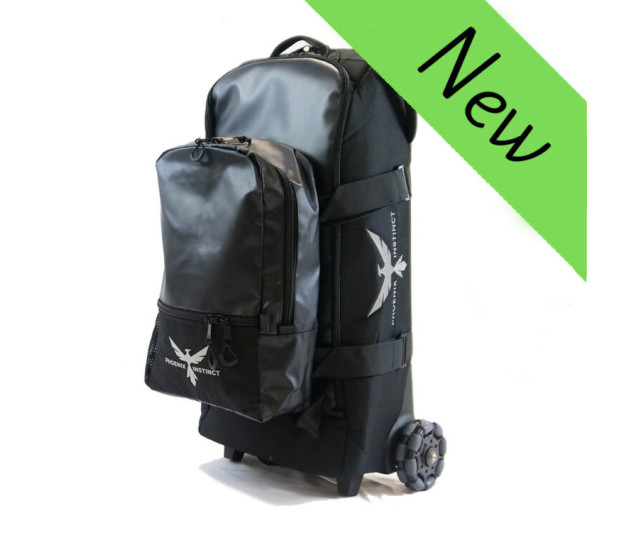

Phoenix Twinset Lite

Bag dimensions:

• Roller bag 78cm x 46cm x 25cm – Weight 4.6kg
• Inside Dimensions: 75cm x 40cm x 19cm – 55L Capacity
• Rucksack 44cm x 26cm x 11cm – Weight: 0.4kg 12L Capacity

Compatibility Information

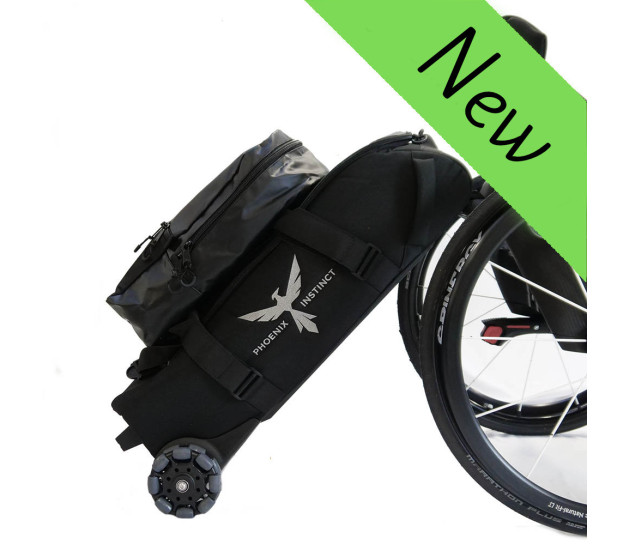

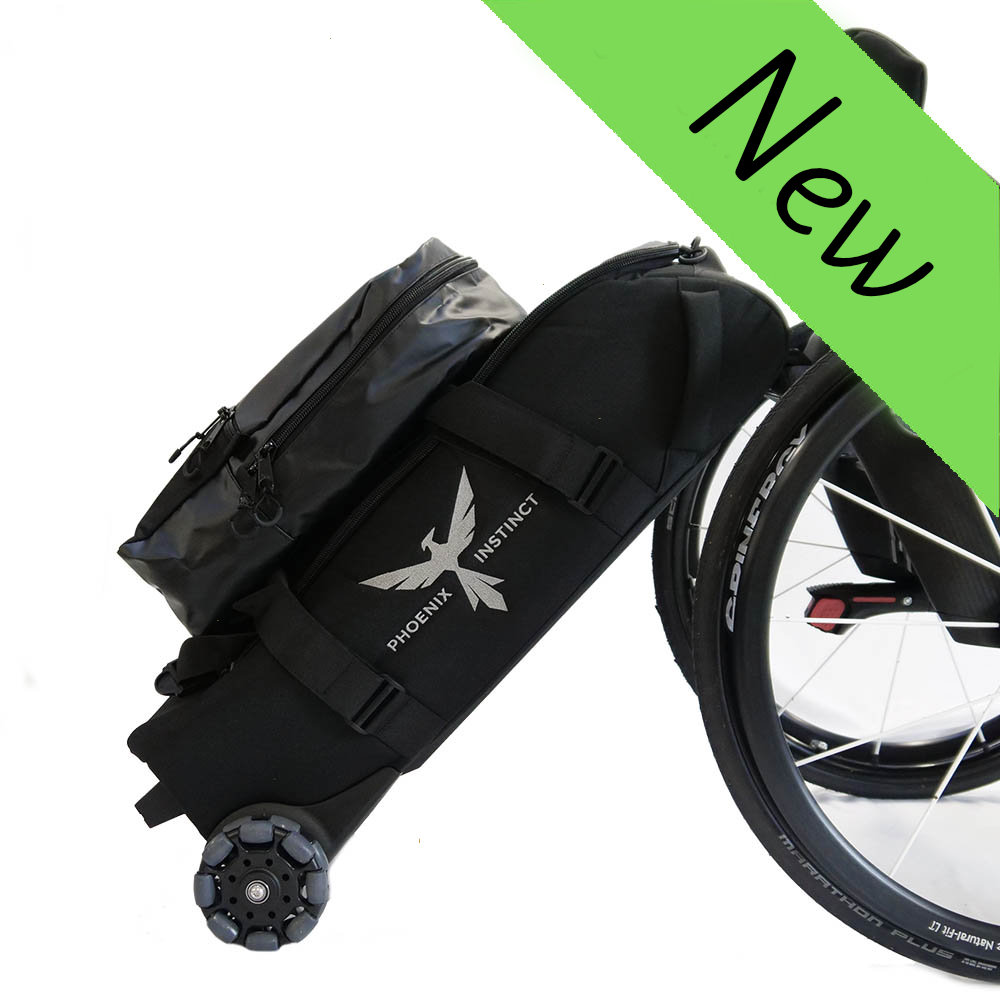

Most wheelchairs with a straight backrest bar (rigidiser) are easy click compatibility with All in One Twinset Lite. However, some wheelchair brands use sizes and shapes of tubing that require an adapter or don’t have a backrest bar. A minimum of 25mm is needed between backrest and backbar. If an aftermarket backrest is used, you may not have the min 25mm clearance and require a low clearance adapter sold separately.

To check if you require an adapter, please contact us and we will send you the downloadable Measuring Tool and instructions.

All in One Twinset Lite prices vary as they include different adaptors.

Quick guide to choosing compatibility.

• If your chair does not have a backrest bar or the bar is not round in shape a universal adapter will be included with your order. These include all folding frames and some rigid frames – Kuschall K, Panthera X, Motion Composites Apex, Aria.
• Straight bar options connect directly to your backrest bar 23mm and 25mm diameter bars will include a wide fitting. Includes some Quickie / Sopur, Ottobock models.
• Curved bar (the bar is not straight in the middle) includes some Ti-lite and RGK models. Quickie / Sopur oval tube/rubber grip, Nitrum, Krypton models will include an adapter to fit to the wheelchair.

The Twinset Lite is only compatible with the Phoenix System Cabin Bag (Trolley required) and the System Rucksack. It is not compatible with other bags in the System range.

RGK SUB 4 – As SUB4 chairs are made to measure it can be difficult for us to make a one size fits all compatibility option. Sub 4 chairs tend to have either a 19mm or 22mm round tubed diameter back bar so we have made up a kit which will give you options to fit these bar sizes. Please note you must have a space of at least 30mm between bar and backrest to use this adaptor kit. If you dont or have a different bar diameter you will require a universal adaptor and should order compatibility option “folding and frames with no back bar” so you receive this adaptor with your order.
