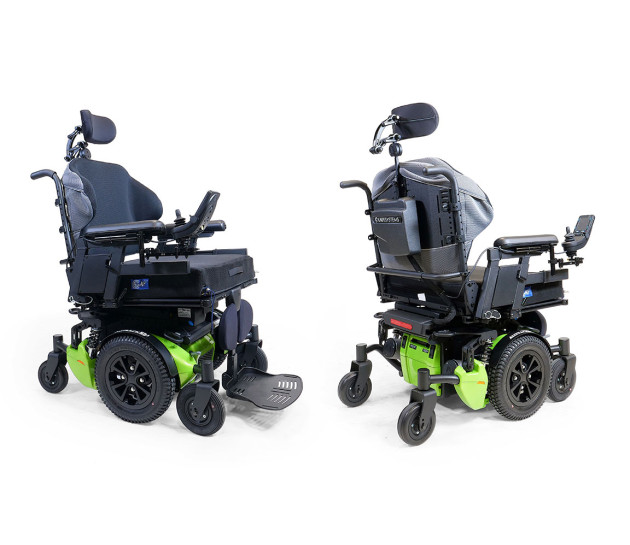

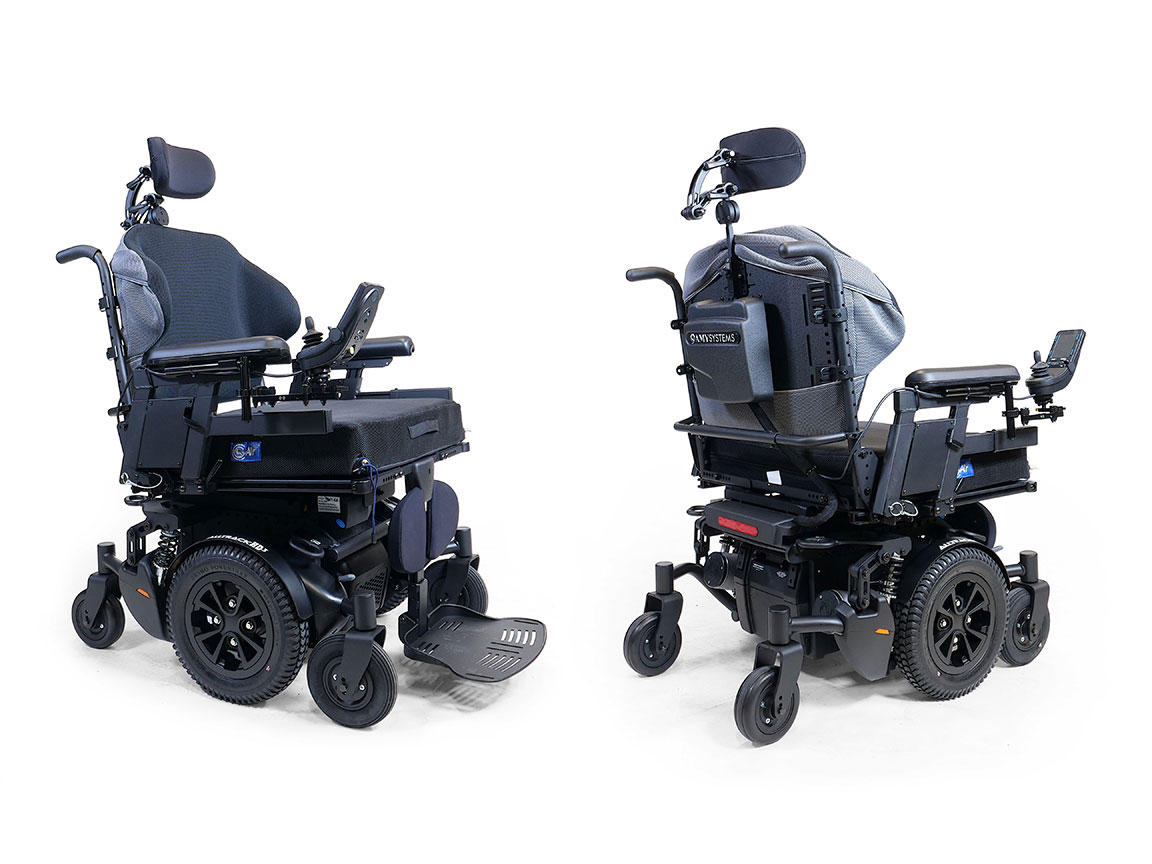

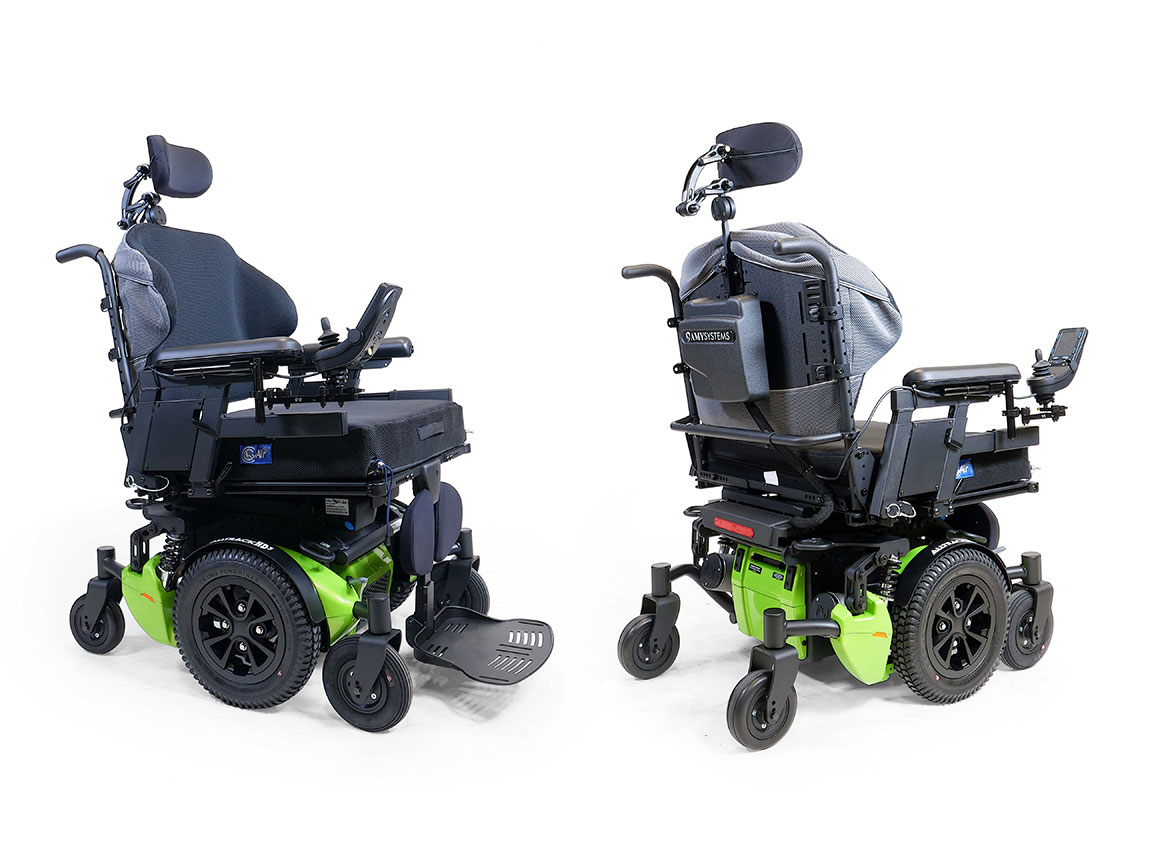

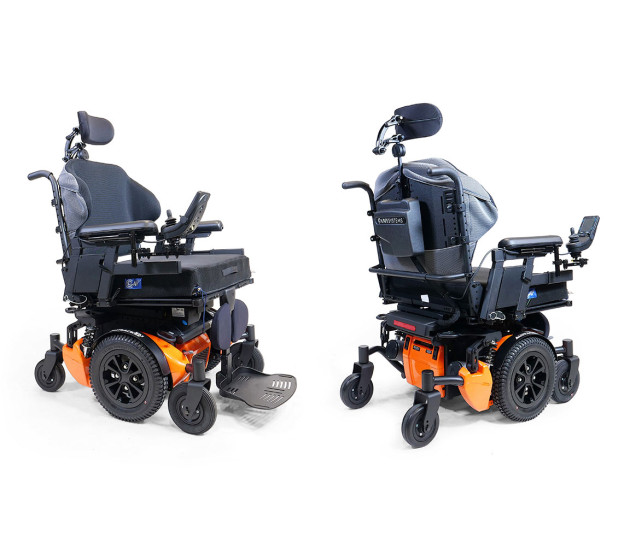

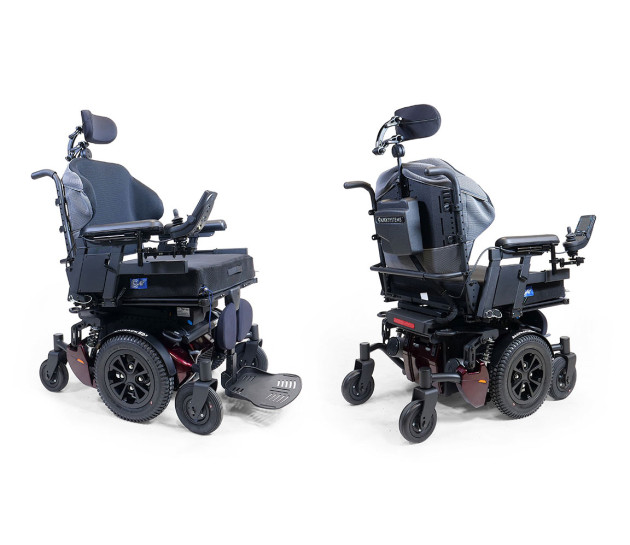

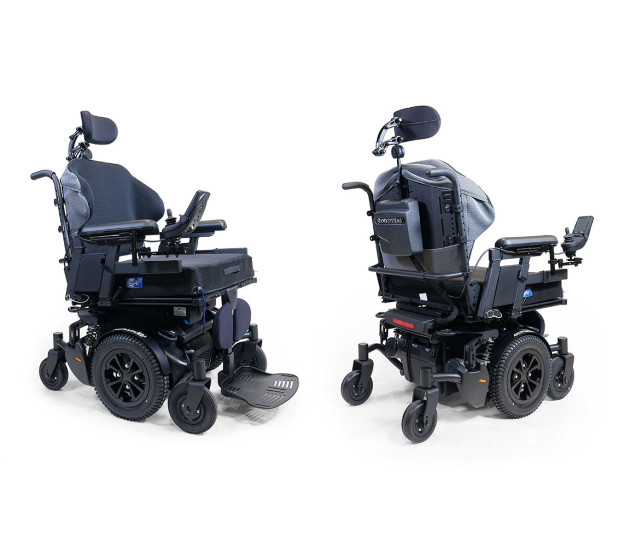

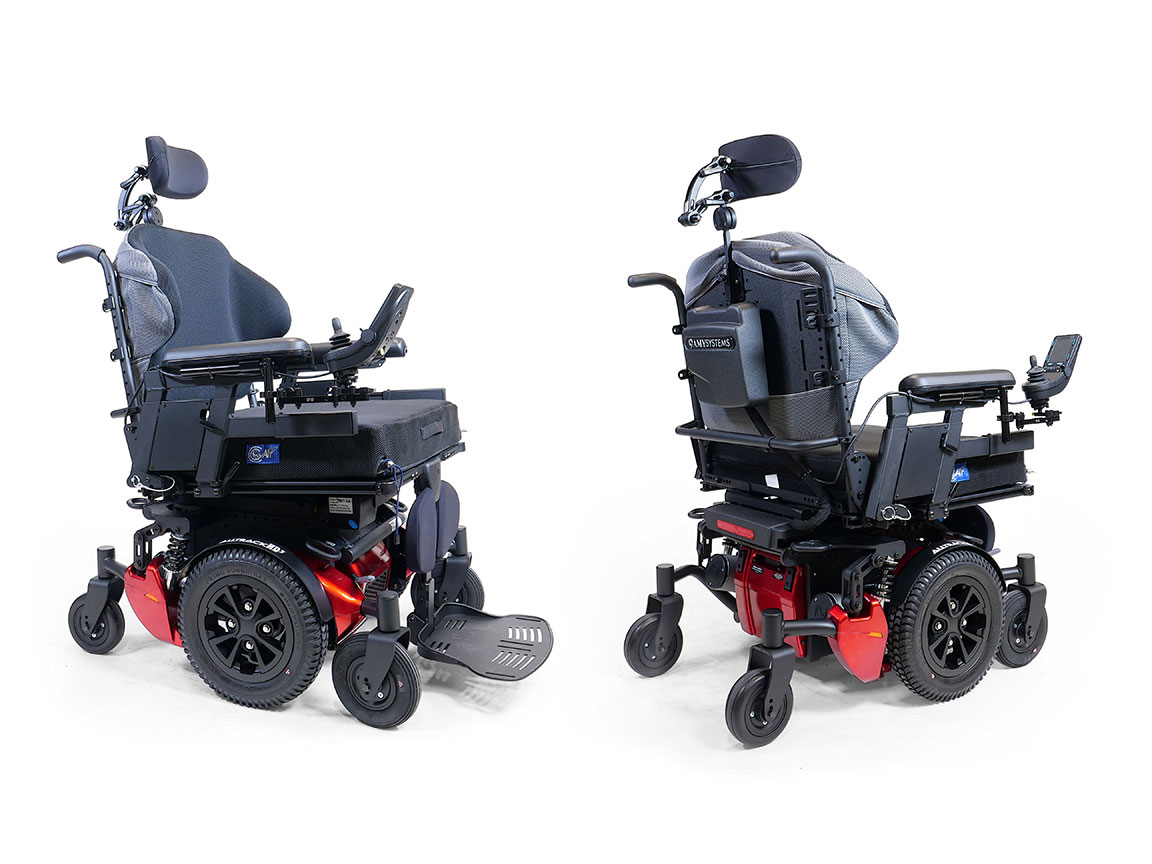

Alltrack HD3 Signature

Name: Alltrack HD3 Signature
Brand: Amylior
SKU: 3273
Availability: InStock

Brand: Amylior

Enquire Now

If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.

Leading Worldwide Brands

Australia Wide Shipping

High Quality Manufacturing

Custom Made to Measure

Description
Specifications
Signature
Review

UNIQUE VERY HEAVY-DUTY POWER WHEELCHAIRS

Very Heavy Duty Capabilities.Compact Package.

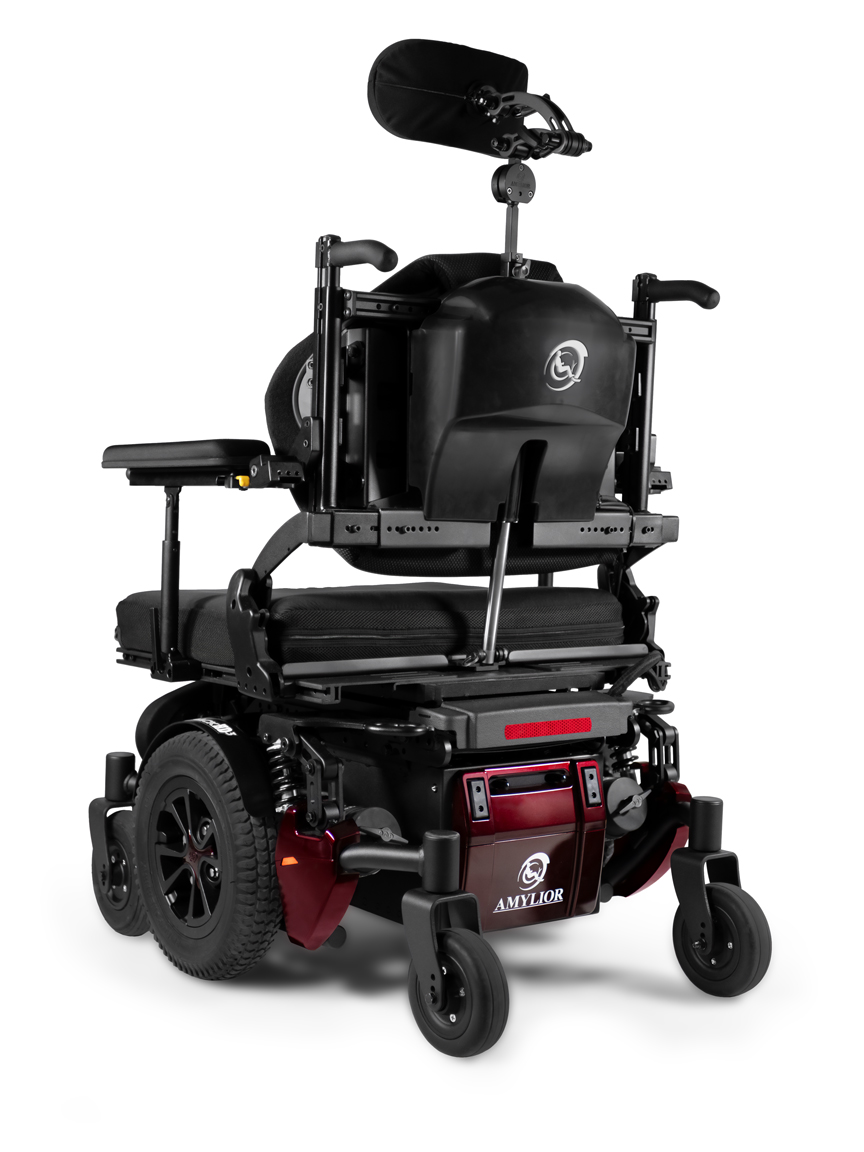

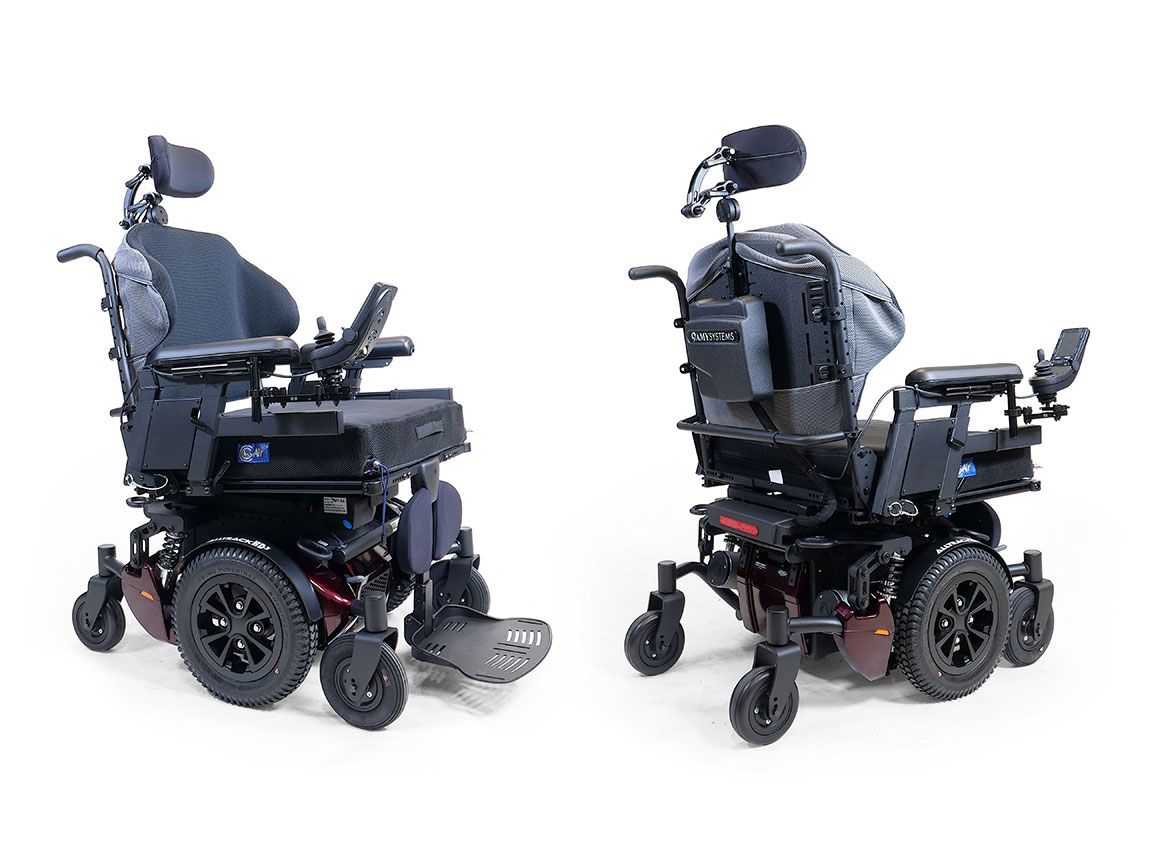

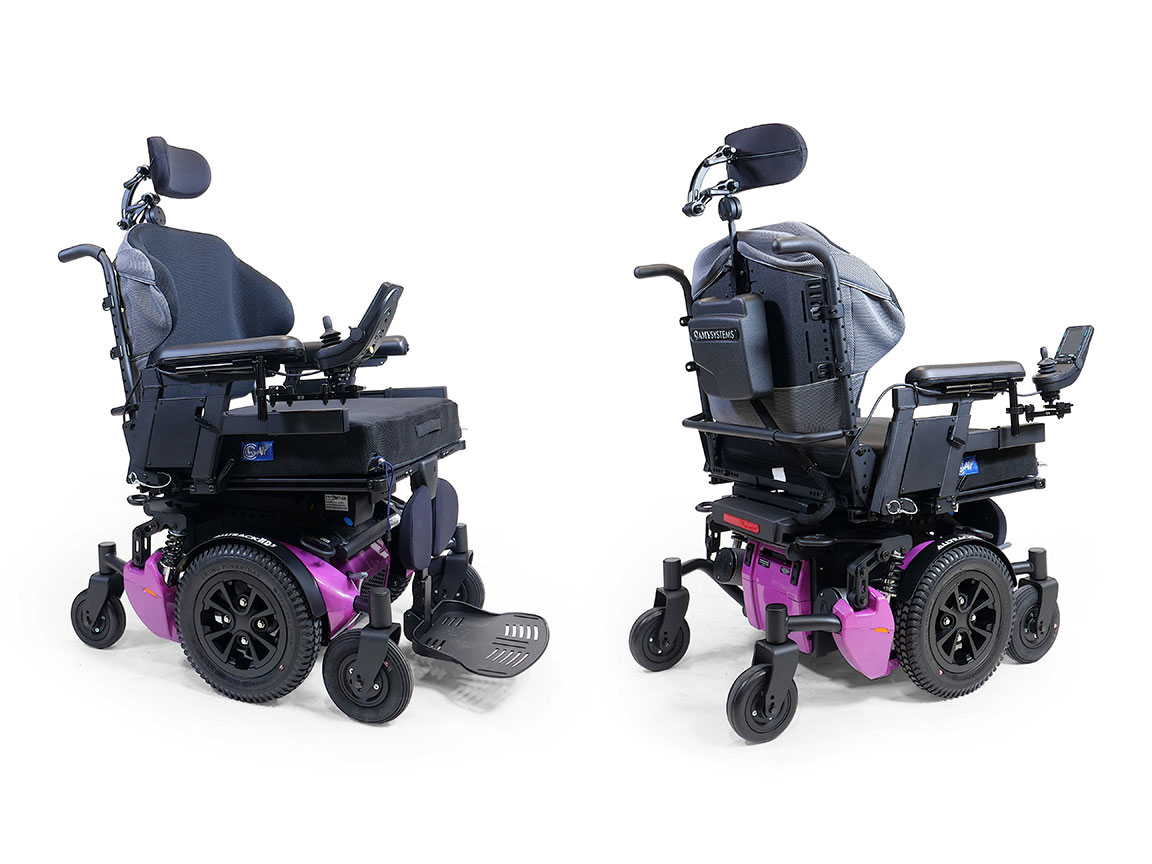

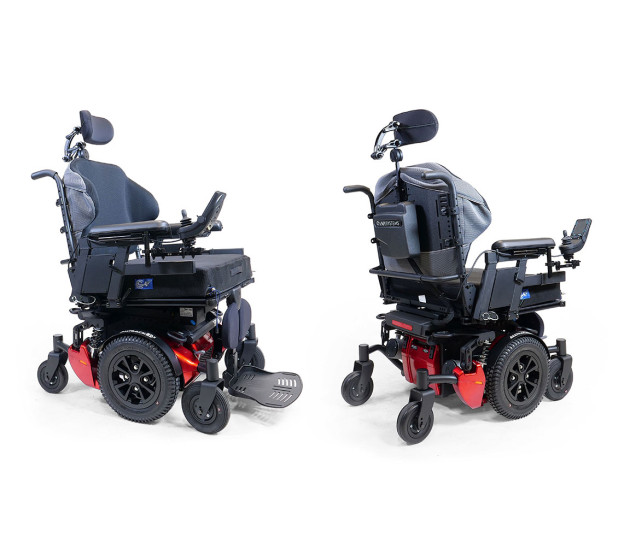

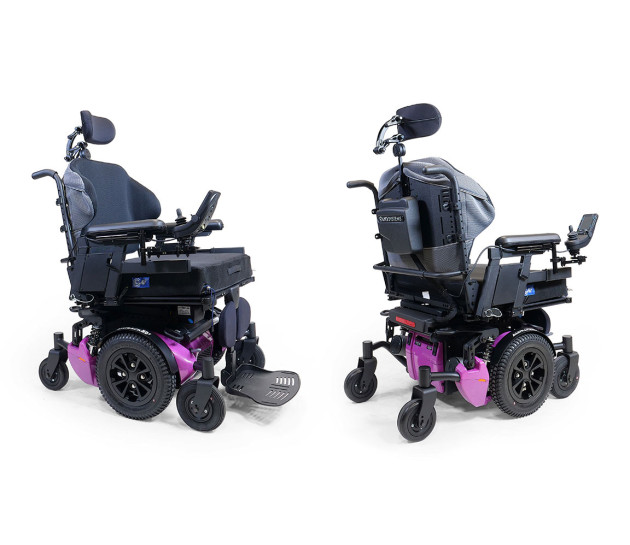

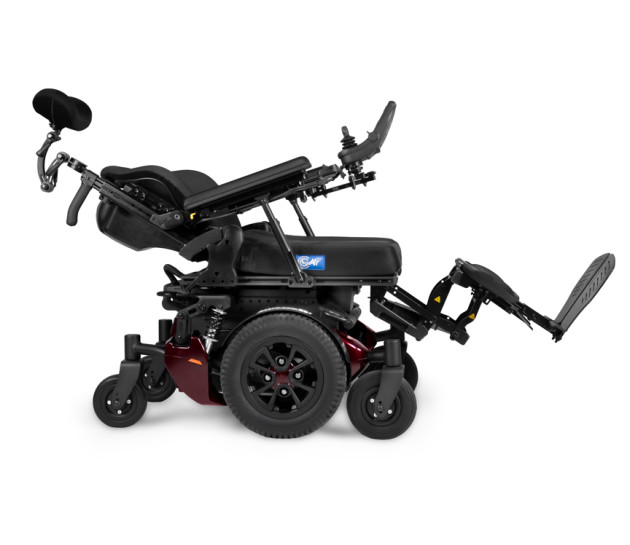

The Alltrack HD3 is a true powerhouse in a maneuverable, highly-functional package — a Very Heavy-Duty (VHD) mid-wheel drive power wheelchair designed to support users up to 550 lb (250 kg) without compromising on comfort, performance, or maneuverability. Built on our proven MWD platform, the HD3 features our patented Dual-Action Suspension system, specifically tuned for heavier users, delivering a smooth and stable ride across indoor and outdoor environments. Whether it’s navigating through your daily routine or going the extra mile, the HD3 gives you the confidence and support to go further.

HIGHLIGHTS

The only Very Heavy-Duty mid-wheel drive (MWD) power wheelchair providing a compact turning radius of 20.5” (520 mm )
Supports user weights up to 550 lb (250 kg)

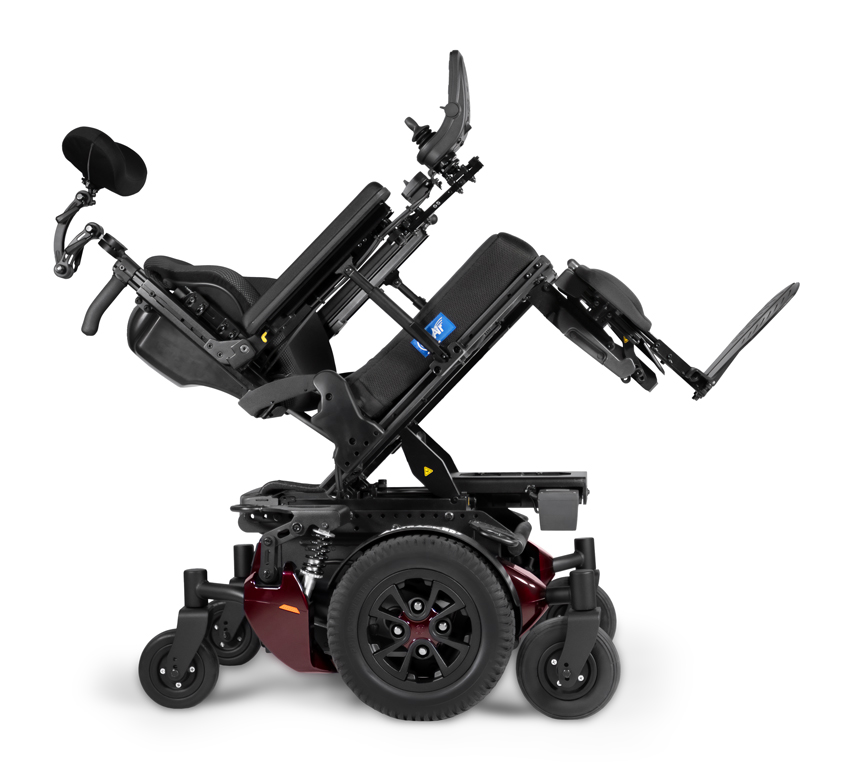

Full range of power positioning options specially designed to support higher weights and unique body types: 45° VHD tilt, 165° VHD power recline, VHD power center mount elevating & articulating foot platform and VHD independent power elevating and articulating legrests
Available standard seat widths up to 30” (762 mm)
Seat-to-floor height as low as 17” (430 mm) with VHD power tilt and recline

Click here to watch the video

Brand	AMYLIOR
Configuration	Mid-wheel drive – Very Heavy-Duty (Alltrack HD3)
HCPCS Codes	K0852/K0860/K0863
Suspension system	Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
Ground clearance¹	3.5” (90 mm) with 14” (355 mm) drive wheels
Base width²	27.375” (695 mm) with GP 24 batteries
Base length²	35.125” (890 mm)
Base turning radius	20.5” (520 mm)
Weight capacity	Up to 550 lb (250 kg)
4-Pole motor options	5.4 mph (9 km/h)
Transit option	4-point tie-down attachment points compliant with ISO 7176-19
Battery type	Two 12 V, deep cycle Gel cell Group 22NF (50 Ah) or Group 24 (70 Ah)
Battery charger	8 A, off board
Electronics	VR2 (non-expandable 90 A) and Rnet (expandable 90 A or 120 A)
Assistive driving package	Available with Smart-Track technology
Specialty controls	Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems
Seat width range	Adjustable from 20” to 28” wide (510 mm to 710 mm) (Custom seat sizes are available)
Power seating options and HCPCS codes³	Bariatric Very HD CG Power Tilt (E1002), VHD Power Recline with Mechanical Shear Reduction (MSR) (E1004), Combination VHD Power Tilt and VHD Power Recline with (MSR) (E1007), VHD Power Center Mount Elevating & Articulating Foot Platform (E1012), HD Independent Power Elevating & Articulating Legrests (E1010)
Seat to floor height range (Seat only OR with VHD power tilt – With or without recline)	17″ to 20″ (430 mm to 510 mm)
Component weights⁴	Wide base width 27.375” (695 mm): 133 lb (60 kg) Batteries: Group 24: 2 x 54 lb (24.5 kg)
Drive wheel diameter	14” (355 mm)
Caster wheel diameter	8” (205 mm)

1. Subject to variances depending on configuration and manufacturing tolerances.
2. Dimensions listed are for power base only.
3. Custom specialized power seating options available.
4. Contact Customer Service for additional weight information.

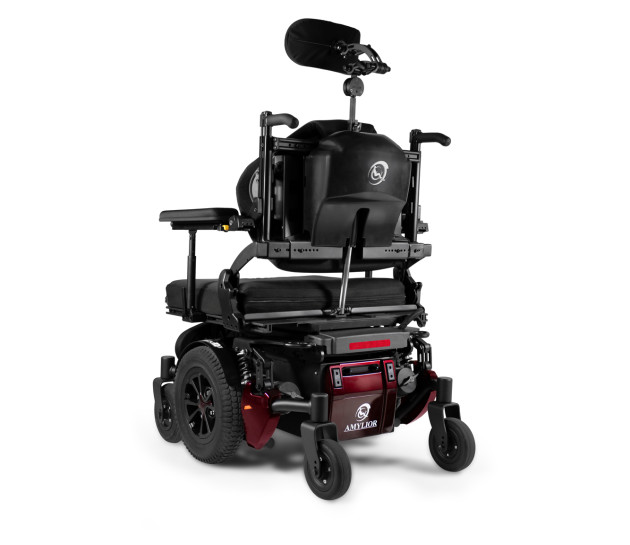

SIGNATURE – Tailored Positioning Solutions

Why Signature?

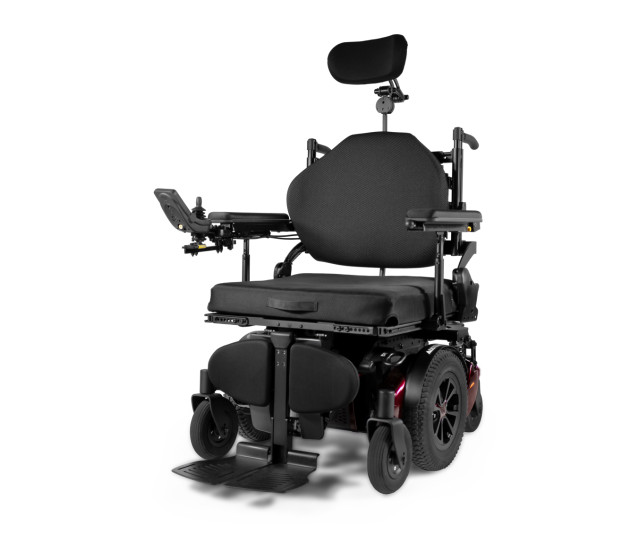

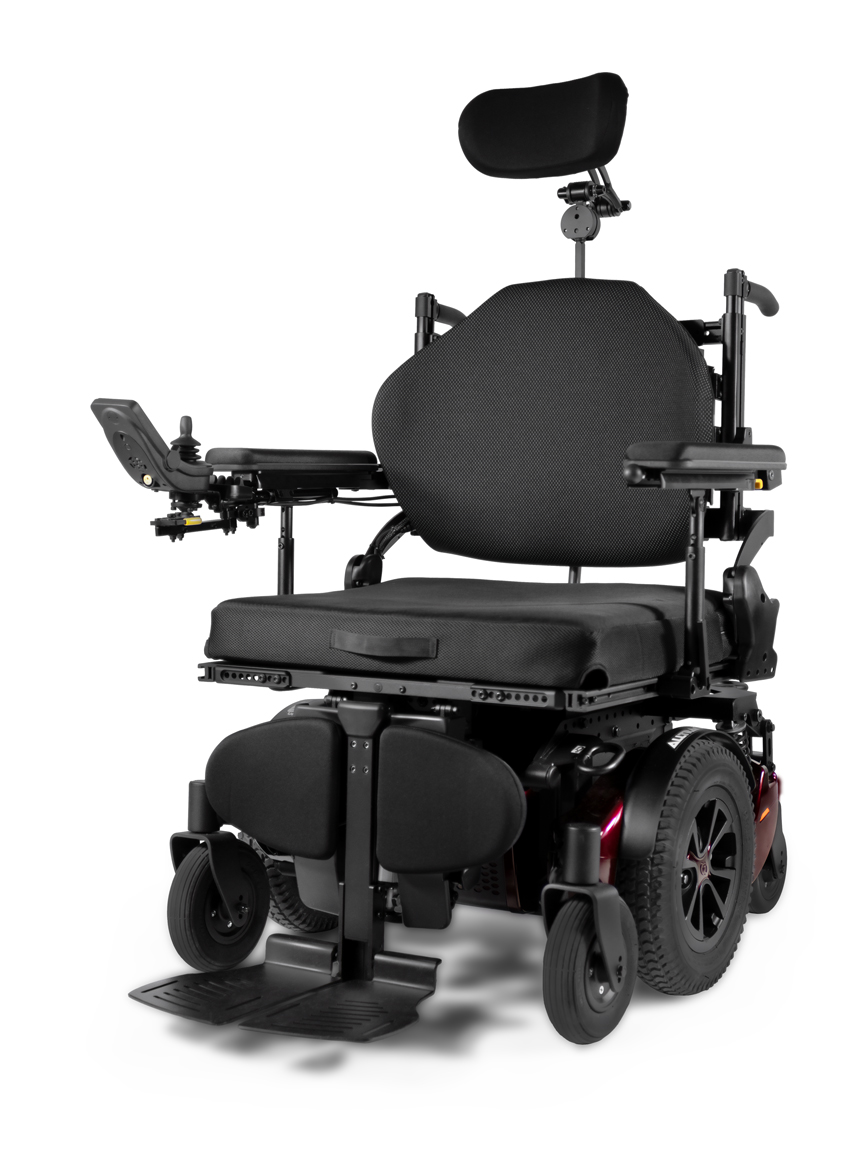

Our all-new Signature power positioning system has been completely re-imagined, delivering a new modern aesthetic, enhanced adjustability and all the durability and reliability Amylior is known for. Available on every Alltrack model, Signature boasts industry leading modularity and the capability to provide Tailored Solutions for even the most complex positioning needs.

Tailored for the user	Highly modular with adjustments to meet the unique needs of virtually any user. Easier and faster adjustments—without compromising structural integrity.
Durability meets design	High-quality, durable construction designed to maintain structural integrity. Improved aesthetics with a sleek, modern look. Lighter weight for easier handling and transport, yet stronger than ever.
Adjustable and adaptable	Offering adaptable capabilities and high weight capacities up to 550 lb. Minimum seat-to-floor heights remain unchanged and start at 15.5″ on Standard and HD models, and as low as 17″ on VHD model Compact and narrow base options are perfect for pediatric users. Designed to evolve and grow with the user. Simplified, faster and easier adjustment.
Efficiency and reliability	Improved efficiency in production and delivery for quicker lead times and order accuracy. Thoughtfully designed for seamless integration of a wide range of electronic, seating and positioning accessories, making sure both users and technicians experience ease and reliability. Signature is built with the future in mind, with a single manufacturer for your seating, power mobility, and power positioning needs.
Exclusively Amylior	All of our products are engineered and assembled in North America. One manufacturer that can handle all your power mobility needs from simple to complex, pediatric to bariatric.
Custom Solutions	Built with versatility at its core, Signature features a modular design that supports a wide range of custom seating and positioning configurations—including specialized cushions, backrests, and lateral supports. Offers full integration of advanced power positioning solutions including lateral tilt, latitude systems, power headrests, power swing-away mounts, and vertical or flip-up foot platforms — with configurations designed to meet a wide variety of user needs. Extensive adjustability in height, width, depth, and length ensures a truly tailored fit, supporting complex clinical needs while promoting posture, comfort, and long-term mobility.
