Pressure Redistribution

Pressure Redistribution

Brand: Dreamline

Enquire Now

Enquire Now

Important Note: Available only in NSW. Not available in VIC, SA, or WA.

    call

    If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.

    leading-worldwide-brands

    Leading Worldwide Brands

    australia-wide-shipping

    Australia Wide Shipping

    guaranteed

    High Quality Manufacturing

    custom-measure

    Custom Made to Measure

    • Description
    • Review

    Dreamline pressure redistribution cushions have been carefully designed to effectively redistribute pressure while maintaining a stable base for the user.
    Dreamline uses two main mediums for pressure for effective redistribution; Air and Gel Fluid packs.
    These two mediusm have a very different feel but achieve a similar result.
    Gel Fluid packs have a solid feel making the cushion very stable but are heavier while Air cushions have a more spongy feel and are lightweight but some stability is lost.


    “Flotation without inflation”
    The Dreamline Woven Air cushion offers excellent lateral stability and true flotation pressure redistribution. It is very low maintenance and does not require ongoing inflation. If damaged, individual air tubes can be replaced.Positioning pads such as Pelvic Obliquity pads are able to be attached to the underside of the Woven Air cushion or to the Contour Base.

    INCLUDED
    • FLO2™ Outer WATER RESISTANT Cover
    • Inner air Pocket
    • For cushions 14” and 15” wide, 16 Woven Air tubes 70mm high
    • For cushions >16” wide, 16 Woven Air tubes 90mm high (apart from 18”x22” and 20”x20” which have 20 Air Tubes)

    Max User
    Weight: 180kg

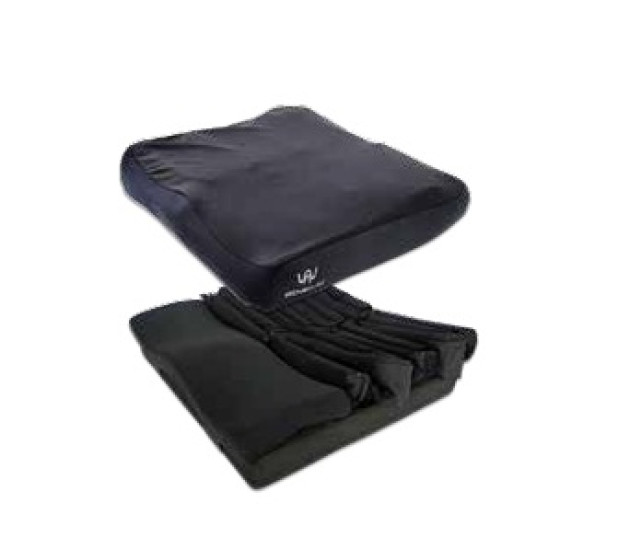

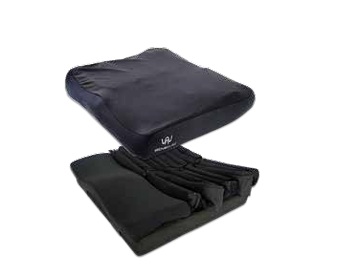

    The Dreamline Woven Air Sprint Cushion is an ultra lightweight, slim cushion that features a stable closed cell foam base. It provides extra support under the thighs and incorporates Woven Air technology in the ischial region, making it an excellent choice for self propelling users.

    INCLUDED
    • FLO2™ Outer WATER RESISTANT Cover
    • Positioning base
    • Comfort wrap for thigh region
    • Air Pocket insert
    • Air Tubes x 8 70mm high

    Max User
    Weight: 180kg

    PELVIC OBLIQUITY PAD SIZING CHART – WOVEN AIR AND SPRINT CUSHIONS

    CUSHION (shortest width or length of cushion) 14″ 16″ 18″ 20″
    PAD WIDTH / LENGTH (mm) 160×160 185×185 210×210 235×235
    PAD HEIGHT (mm) 10 10 10 10
    CODE (Set of 4) DCOP14 DCOP16 DCOP18 DCOP20

    Custom pads available, use code – DCOPCUST

    WOVEN AIR CUSHION







    WAC1414 WAC1416 WAC1418 WAC1515 WAC1516 WAC1517 WAC1616
    WAC1618 WAC1620 WAC1717 WAC1719 WAC1816 WAC1818 WAC1820
    WAC1822 WAC1919 WAC2018 WAC2020 WACCUST WACCUSTXL

    Accessories – Outer Cover only add “OC” to end of code • Inner Cover only add “IC” to end of code
    Spare Parts – Air Pocket only add “AP” to end of the code

    WOVEN AIR CONTOUR BASE (fits inside the cover and adds mild contouring to the woven Air Cushion)







    WAC1414CB WAC1416CB WAC1418CB WAC1515CB WAC1516CB WAC1517CB WAC1616CB
    WAC1618CB WAC1620CB WAC1717CB WAC1719CB WAC1816CB WAC1818CB WAC1820CB
    WAC1822CB WAC1919CB WAC2018CB WAC2020CB WACCUSTCB WACCUSTXLCB

    WOVEN AIR SPRINT CUSHION







    WSC1414 WSC1416 WSC1418 WSC1515 WSC1516 WSC1517 WSC1616
    WSC1618 WSC1620 WSC1717 WSC1719 WSC1816 WSC1818 WSC1820
    WSC1822 WSC1919 WSC2018 WSC2020 WSCCUST WSCCUSTXL

    Accessories – Outer Cover only add “OC” to end of code • Inner Cover only add “IC” to end of code
    Spare Parts – Air Pocket only add “AP” to end of the code • Thigh Pad only add “CW” to the end of the code

    WOVEN AIR TUBES SPARE PARTS







    CODE DESCRIPTION TUBE LENGTH (mm) QTY
    WAT1470 Woven Air Tube 14” x 70mm (for Sprint/Woven Air Cushions) 870 4pk
    WAT1570 Woven Air Tube 15” x 70mm (for Sprint/Woven Air Cushions) 930 4pk
    WAT1670 Woven Air Tube 16” x 70mm (for Sprint Cushions) 990 4pk
    WAT1770 Woven Air Tube 17” x 70mm (for Sprint Cushions) 1050 4pk
    WAT1870 Woven Air Tube 18” x 70mm (for Sprint Cushions) 1110 4pk
    WAT1970 Woven Air Tube 19” x 70mm (for Sprint Cushions) 1150 4pk
    WAT2070 Woven Air Tube 20” x 70mm (for Sprint Cushions) 1200 4pk
    WAT70CUSTXL Woven Air Tube from 22” x 70mm (for Sprint Cushions) up to 1400 4pk
    WAT1690 Woven Air Tube 16” x 90mm (for Woven Air Cushions) 990 4pk
    WAT1790 Woven Air Tube 17” x 90mm (for Woven Air Cushions) 1050 4pk
    WAT1890 Woven Air Tube 18” x 90mm (for Woven Air Cushions) 1100 4pk
    WAT1990 Woven Air Tube 19” x 90mm (for Woven Air Cushions) 1150 4pk
    WAT2090 Woven Air Tube 20” x 90mm (for Woven Air Cushions) 1200 4pk
    WAT90CUSTXL Woven Air Tube from 22” x 90mm (for Woven Air Cushions) up to 1400 4pk

    G7 CUSHION- with Woven Air

    D7CW1414 D7CW1416 D7CW1418 D7CW1515
    D7CW1516 D7CW1517 D7CW1616 D7CW1618
    D7CW1620 D7CW1717 D7CW1719 D7CW1816
    D7CW1818 D7CW1820 D7CW1822 D7CW1919
    D7CW2018 D7CW2020 D7CWCUST D7CWCUSTXL

    ACCESSORIES

    • Outer Cover only add “OC” to end of ORIGINAL STX2 code
    • Inner Cover only add “IC” to end of ORIGINAL STX2 code

    SPARE PARTS

    • Comfort Wrap only add “CW” to end of code

    STX2 CUSHION – with Woven Air

    DX2CW1414 DX2CW1416 DX2CW1418 DX2CW1515
    DX2CW1516 DX2CW1517 DX2CW1616 DX2CW1618
    DX2CW1620 DX2CW1717 DX2CW1719 DX2CW1816
    DX2CW1818 DX2CW1820 DX2CW1822 DX2CW1919
    DX2CW2018 DX2CW2020 DX2CWCUST DX2CWCUSTXL

    ACCESSORIES

    • Outer Cover only add “OC” ORIGINAL G7 code
    • Inner Cover only add “IC” ORIGINAL G7 code

    SPARE PARTS

    • Comfort Wrap only add “CW” to end of code

    WOVEN AIR INSERT for STX2 and G 7 (6cm high)





    WAI1414 WAI1416 WAI1418 WAI1515 WAI1516 WAI1517 WAI1616
    WAI1618 WAI1620 WAI1717 WAI1719 WAI1816 WAI1818 WAI1820
    WAI1822 WAI1919 WAI2018 WAI2020 WAICUST WAICUSTXL

    Spare Parts

    • Air Pocket only add “AP” to end of the code

    WOVEN AIR TUBES SPARE PARTS







    CODE DESCRIPTION TUBE LENGTH (mm) QTY
    WAT1460 Woven Air Tube 14″ x 60mm (for STX2/G7 Cushions) 750 4pk
    WAT1560 Woven Air Tube 15″ x 60mm (for STX2/G7 Cushions) 810 4pk
    WAT1660 Woven Air Tube 16″ x 60mm (for STX2/G7 Cushions) 870 4pk
    WAT1760 Woven Air Tube 17″ x 60mm (for STX2/G7 Cushions) 930 4pk
    WAT1860 Woven Air Tube 18″ x 60mm (for STX2/G7 Cushions) 990 4pk
    WAT1960 Woven Air Tube 19″ x 60mm (for STX2/G7 Cushions) 1050 4pk
    WAT2060 Woven Air Tube 20″ x 60mm (for STX2/G7 Cushions) 1110 4pk
    WAT60CUSTXL Woven Air Tube from 22″ x 60mm (for STX2/G7 Cushions) up to 1200
