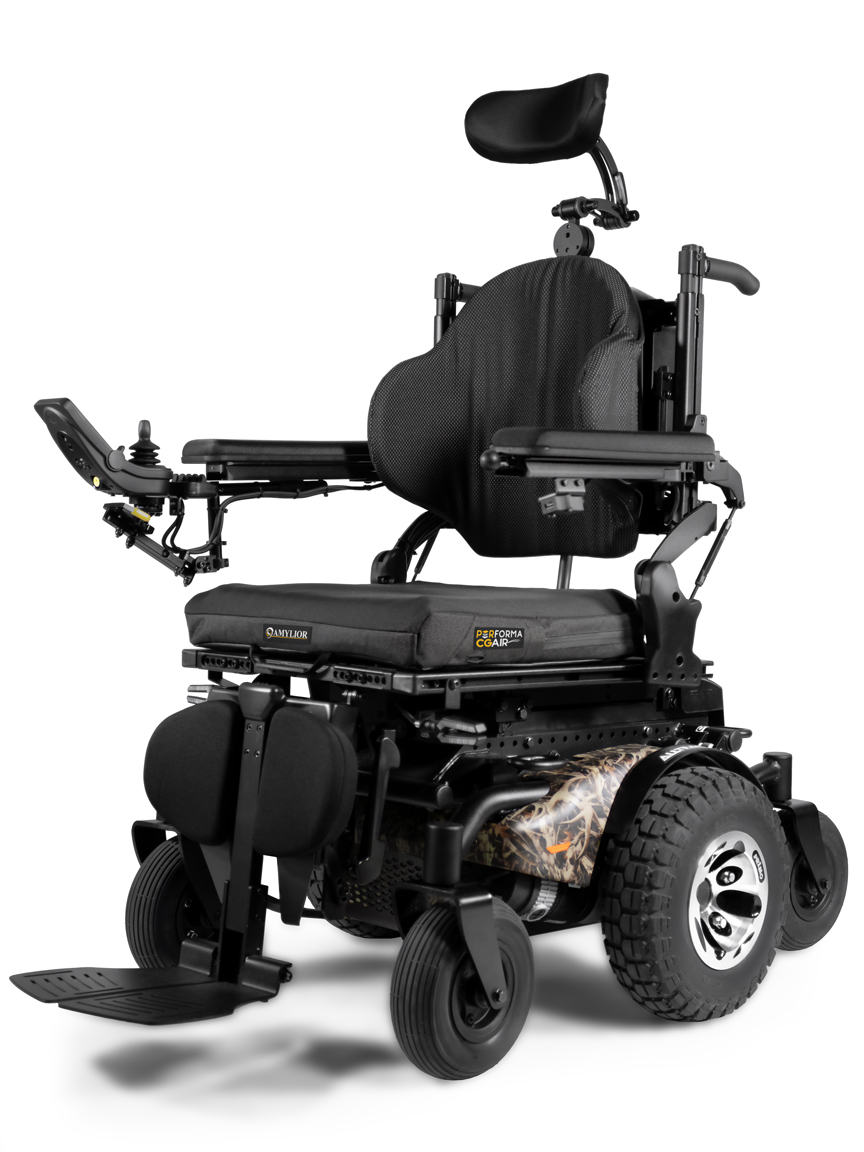

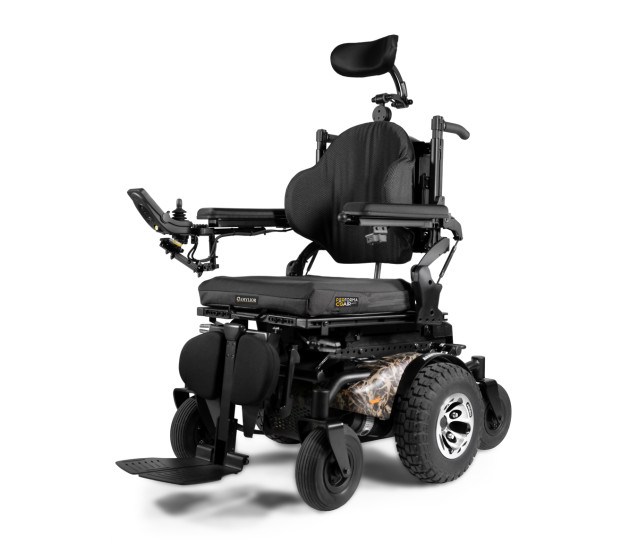

Alltrack R3 Signature with Custom All-Terrain Package

Alltrack R3 Signature with Custom All-Terrain Package

Name: Alltrack R3 Signature with Custom All-Terrain Package
Brand: Amylior
SKU: 3272
Availability: InStock

Brand: Amylior

Enquire Now

If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.

Leading Worldwide Brands

Australia Wide Shipping

High Quality Manufacturing

Custom Made to Measure

Description
Specifications
Signature
Review

Hybrid-wheel drive power wheelchairs Custom All-Terrain Package

Next-level outdoor performance. No compromise indoors.

No Compromise! – The award-winning Alltrack R3 Outdoor is engineered for users who require tight quarters maneuverability but need a chair to handle challenging rural and/or urban environments. With its one of a kind HWD footprint, extra-wide tires, larger casters and advanced suspension, it delivers unstoppable traction and control over uneven, unpredictable terrain. Whether it’s dirt paths, gravel roads, or snowy trails, this powerhouse keeps you moving forward with confidence. Despite its off-road capabilities, the R3 Outdoor still delivers the compact agility needed indoors – making it the ultimate all-terrain companion for everyday adventurers.

HIGHLIGHTS

Outdoor-ready Hybrid-Wheel Drive Technology for all-terrain performance and indoor maneuverability
Award-winning, rugged design tested by real users in real environments
Powerful 4-pole motors deliver speeds up to 8.5 mph (13,5 km/h)
9” (230 mm) front and rear casters offer excellent grip and enhanced ride comfort
Can be ordered with standard 14” (355 mm) drive wheels or sider, 14”x 4” (355 mm x 100 mm) drive wheels for added comfort and grip on loose, soft terrain
Optional flared front-end for enhanced caster clearance and added stability

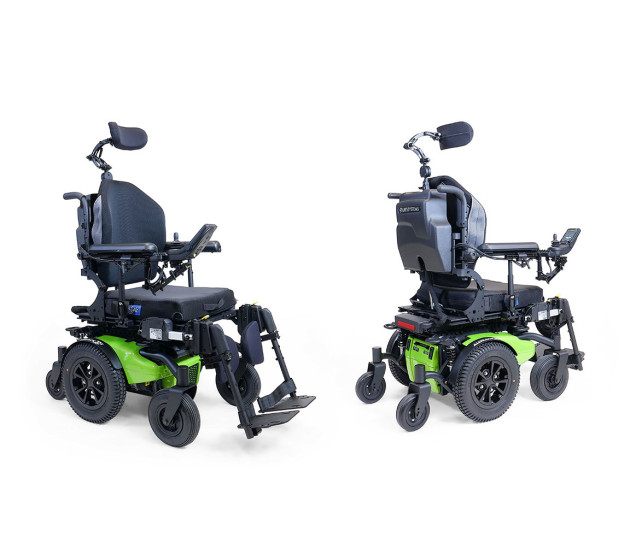

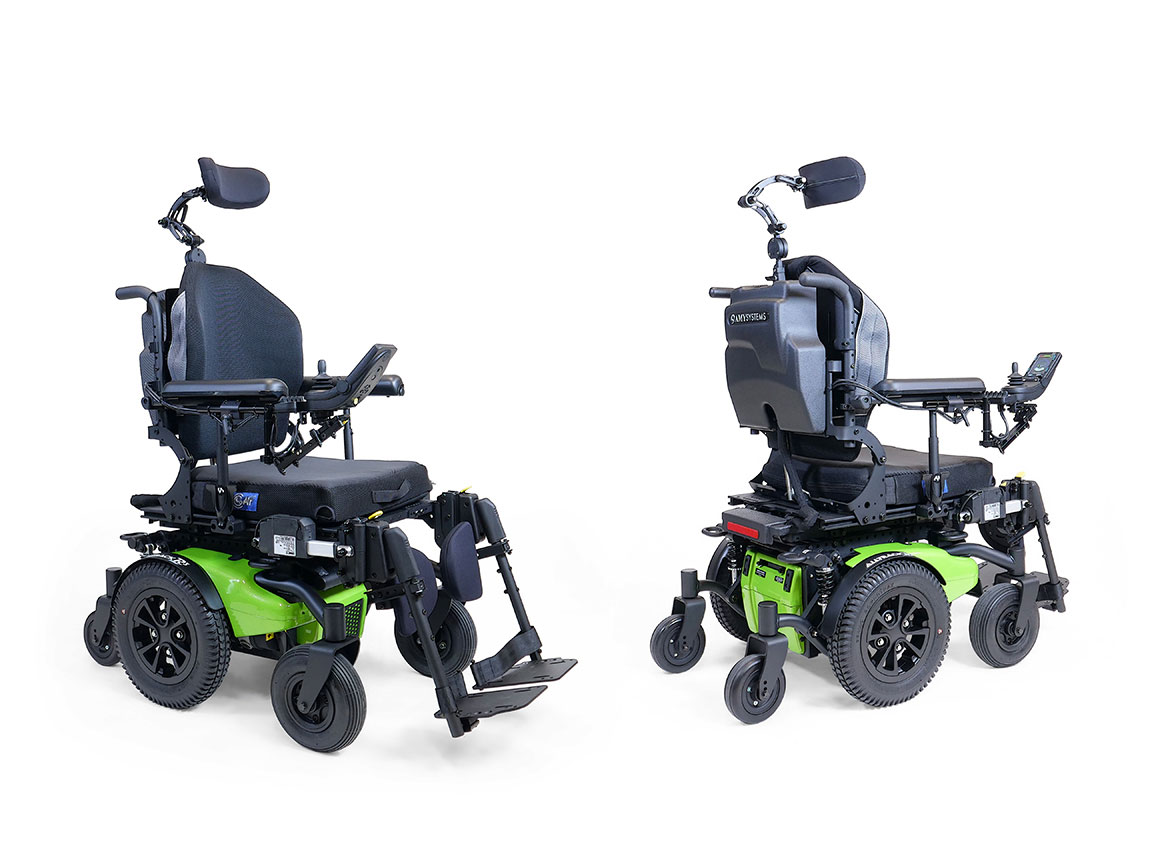

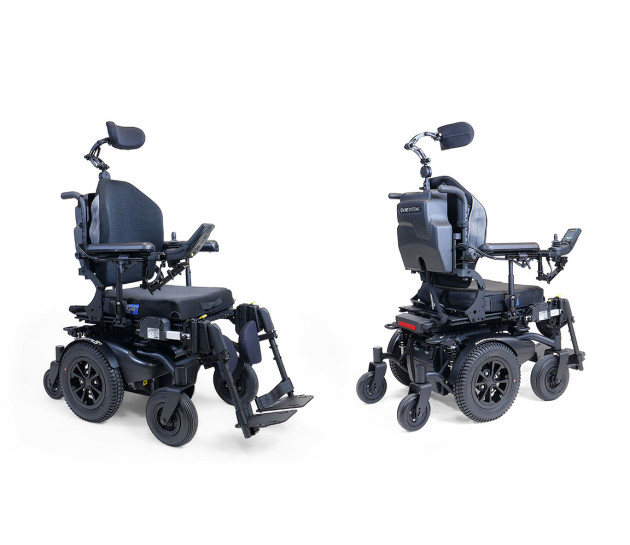

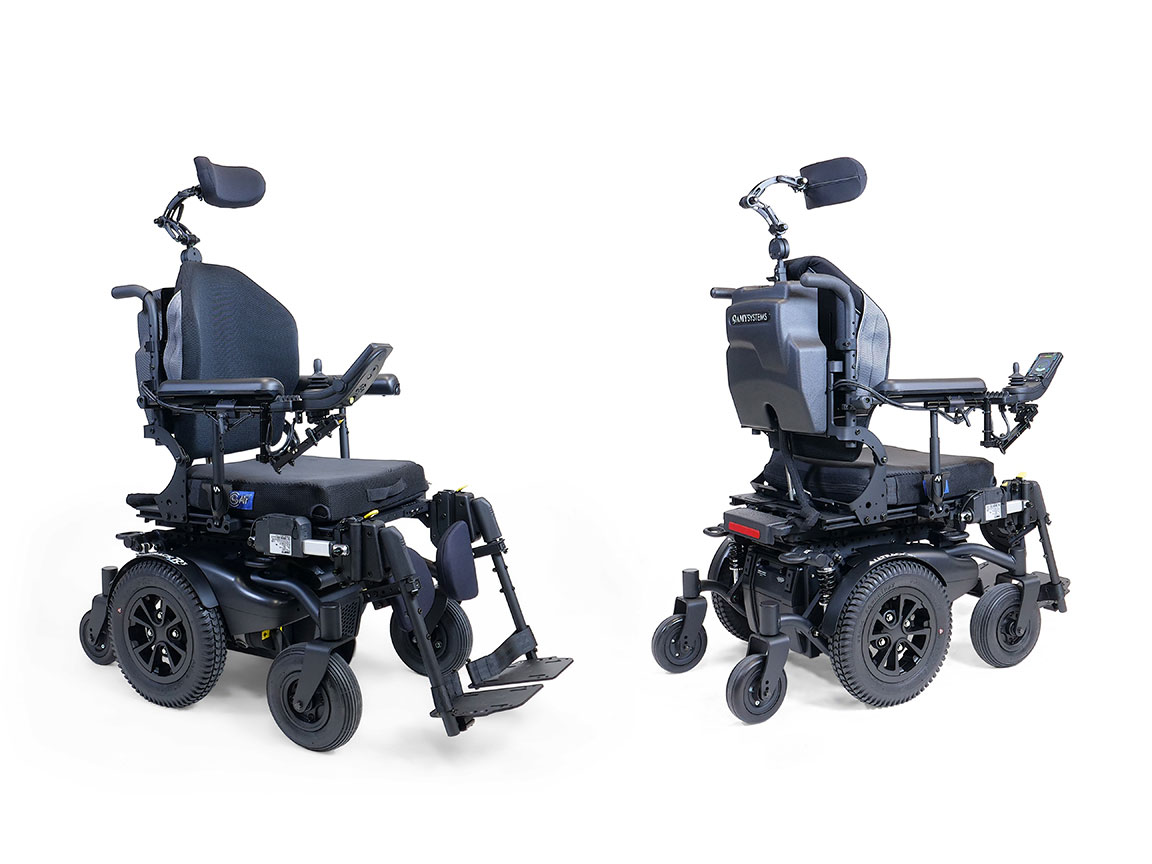

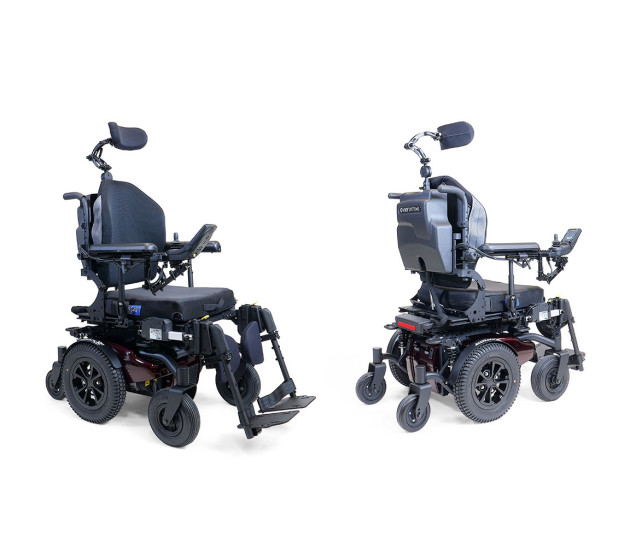

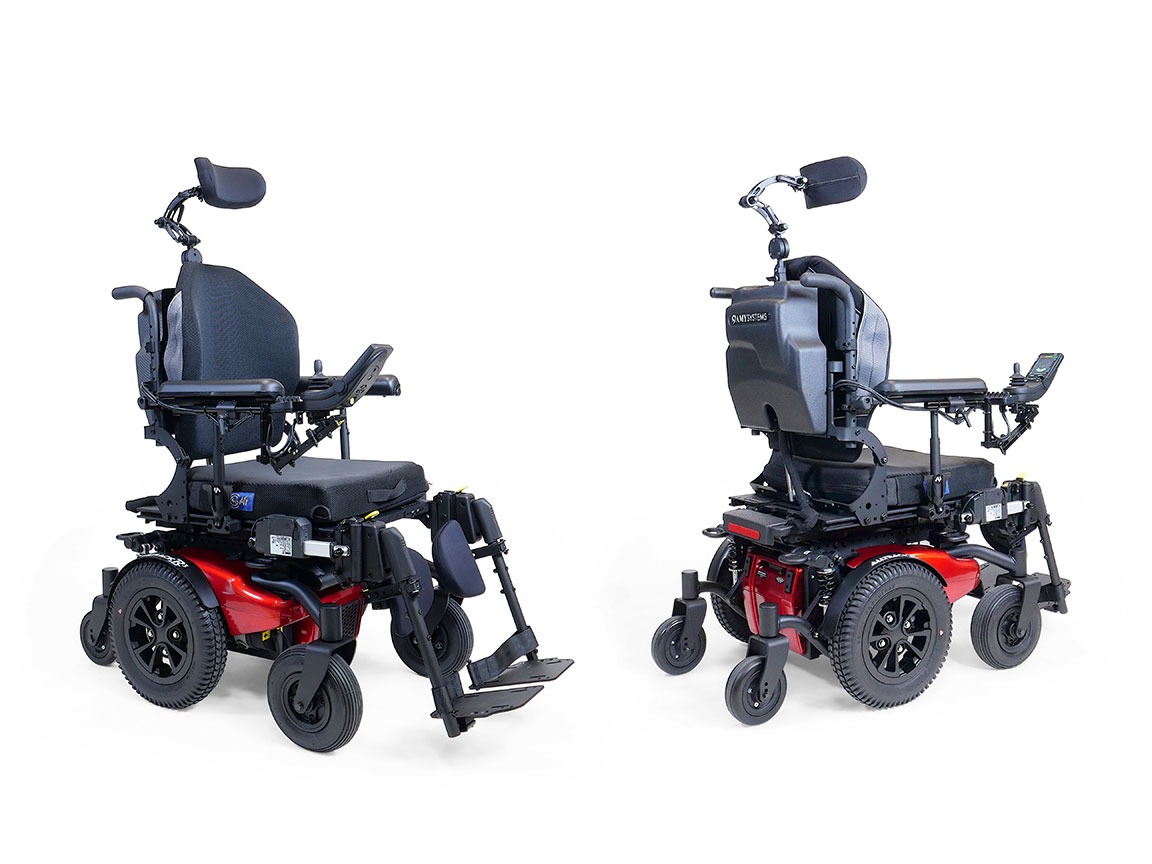

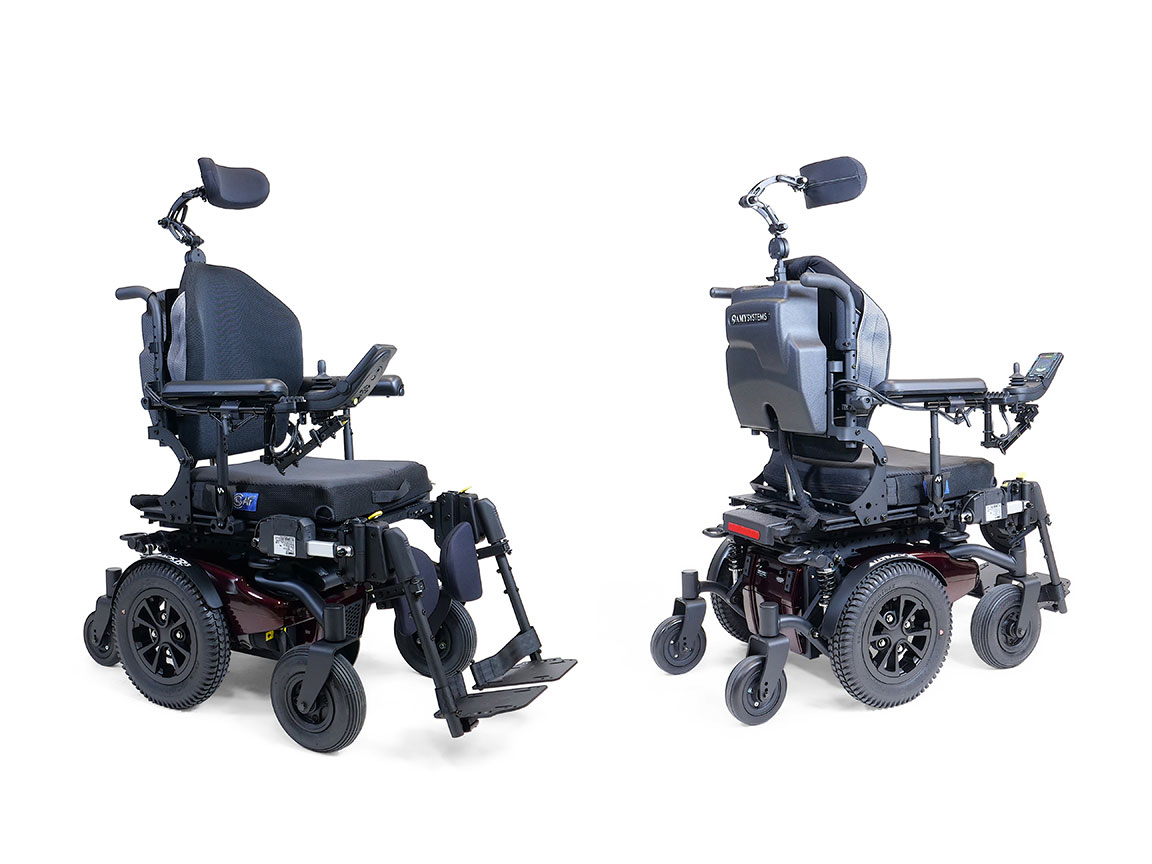

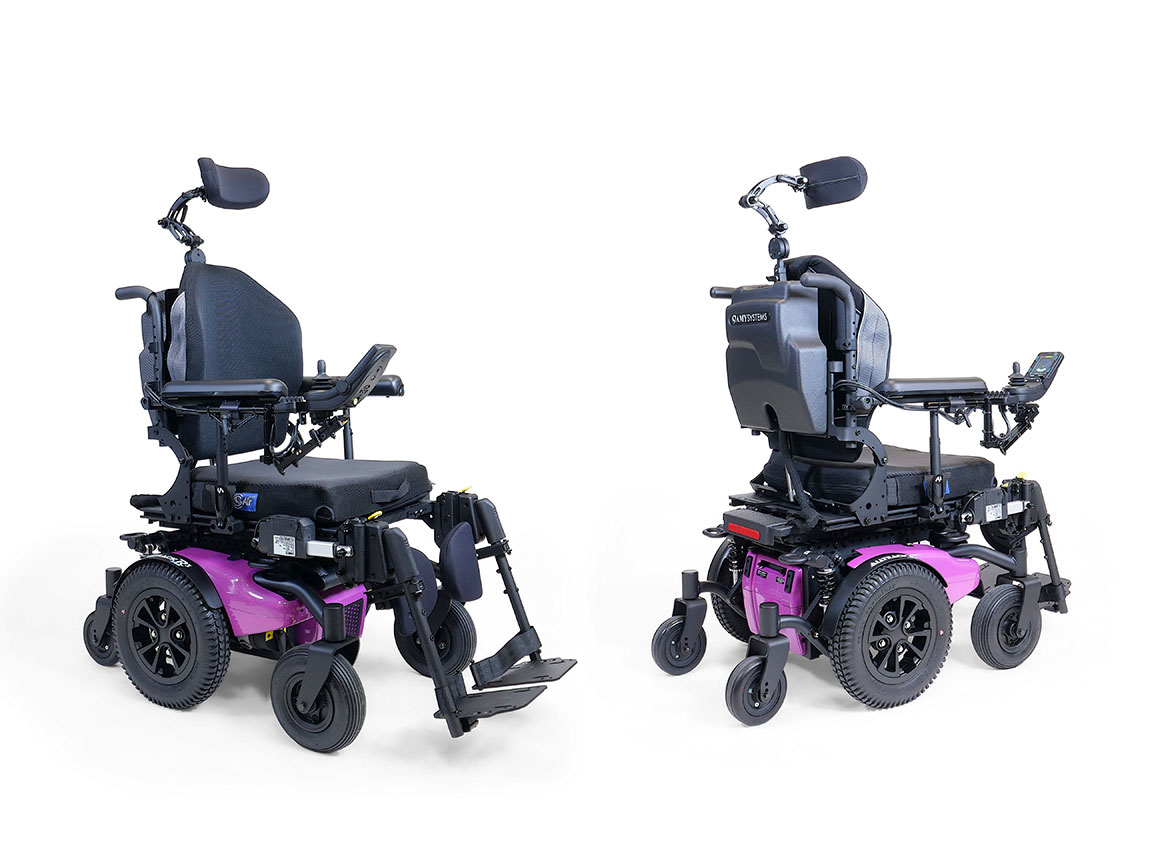

NEW color and hydrographic finishes to match your style

Click here to watch the video

Brand	AMYLIOR
Configuration	Hybrid-wheel drive – Standard (Alltrack R3 Hybrid with All-Terrain Package)
HCPCS Codes	K0848/K0856/K0861
Suspension system	Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
Ground clearance¹	3.5” (90 mm) with 14” (355 mm) drive wheels
Base width²	23.375” (595 mm) with GP 22 batteries or 25.375” (645 mm) with GP 24 batteries
Base length²	40.9″ (1040 mm)
Base turning radius	21.75” (550 mm)
Weight capacity	0-300 lb (0-136 kg)
4-Pole motor options	6.5 mph (10 km/h)
Transit option	4-point tie-down attachment points compliant with ISO 7176-19
Battery types	Two 12 V, deep cycle Gel cell Group 22NF (50 Ah) or Group 24 (70 Ah)
Battery charger	8 A, off board
Electronics	Rnet (expandable 120 A)
Assistive driving package	Available with Smart-Track technology
Specialty controls	Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems
Seat width range	Adjustable from 14” to 26” (355 mm to 660 mm) wide

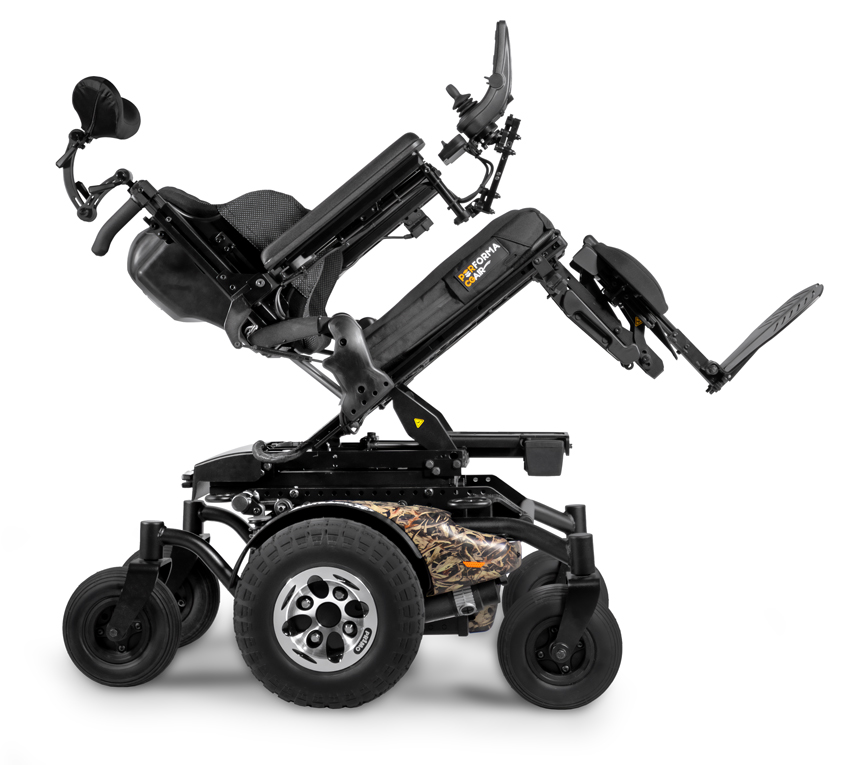

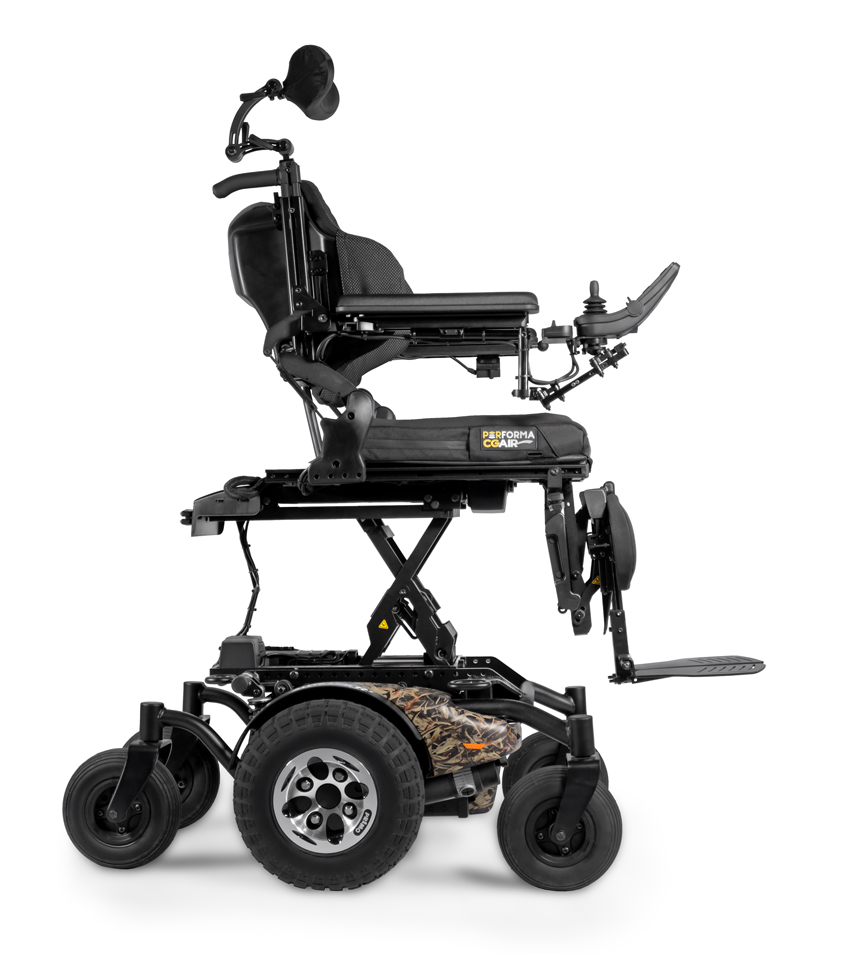

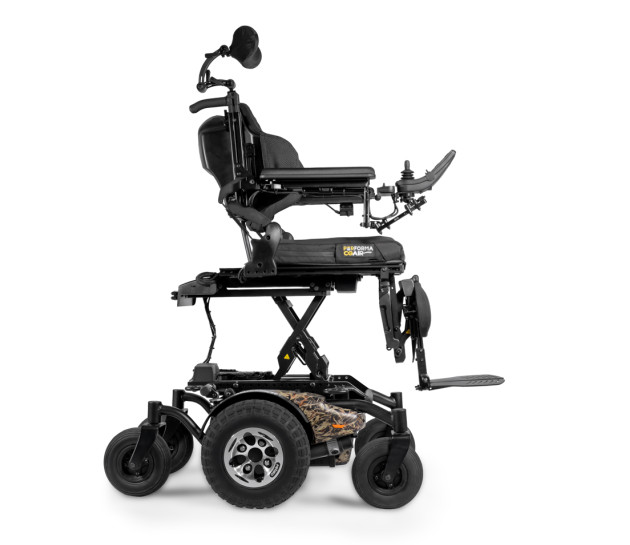

Power seating option and HCPCS codes³	Standard weight capacity for Power Tilt (E1002), Power Recline with Mechanical Shear Reduction (MSR) (E1004), Combination Power Tilt and Recline with MSR (E1007), Center Mount Elevating & Articulating Foot Platform (E1012), Independent Power Elevating & Articulating Legrests (E1010), Alta Power Seat Elevation (E2298)
Seat to floor height range (Tilt OR Seat Elevate)	16.75″ to 19.75” (425 mm to 500 mm)
Seat to floor height range (Tilt AND Seat Elevate)	18.75” or 19.75” (475 mm or 500 mm)
Component weights⁴	Compact base width 23.375”(595 mm): 127 lb (57 kg) Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg)Standard base width 25.375”(645 mm): 132 lb (59 kg) Batteries: Group 24: 2 x 54 lb (24.5 kg)
Drive wheel diameter	14” (320 mm or 355 mm)
Caster wheel diameter	9” (205 mm or 230 mm)

1. Subject to variances depending on configuration and manufacturing tolerances.
2. Dimensions listed are for power base only.
3. Custom specialized power seating options available.
4. Contact Customer Service for additional weight information.

SIGNATURE – Tailored Positioning Solutions

Why Signature?

Our all-new Signature power positioning system has been completely re-imagined, delivering a new modern aesthetic, enhanced adjustability and all the durability and reliability Amylior is known for. Available on every Alltrack model, Signature boasts industry leading modularity and the capability to provide Tailored Solutions for even the most complex positioning needs.

Tailored for the user	Highly modular with adjustments to meet the unique needs of virtually any user. Easier and faster adjustments—without compromising structural integrity.
Durability meets design	High-quality, durable construction designed to maintain structural integrity. Improved aesthetics with a sleek, modern look. Lighter weight for easier handling and transport, yet stronger than ever.
Adjustable and adaptable	Offering adaptable capabilities and high weight capacities up to 550 lb. Minimum seat-to-floor heights remain unchanged and start at 15.5″ on Standard and HD models, and as low as 17″ on VHD model Compact and narrow base options are perfect for pediatric users. Designed to evolve and grow with the user. Simplified, faster and easier adjustment.
Efficiency and reliability	Improved efficiency in production and delivery for quicker lead times and order accuracy. Thoughtfully designed for seamless integration of a wide range of electronic, seating and positioning accessories, making sure both users and technicians experience ease and reliability. Signature is built with the future in mind, with a single manufacturer for your seating, power mobility, and power positioning needs.
Exclusively Amylior	All of our products are engineered and assembled in North America. One manufacturer that can handle all your power mobility needs from simple to complex, pediatric to bariatric.
Custom Solutions	Built with versatility at its core, Signature features a modular design that supports a wide range of custom seating and positioning configurations—including specialized cushions, backrests, and lateral supports. Offers full integration of advanced power positioning solutions including lateral tilt, latitude systems, power headrests, power swing-away mounts, and vertical or flip-up foot platforms — with configurations designed to meet a wide variety of user needs. Extensive adjustability in height, width, depth, and length ensures a truly tailored fit, supporting complex clinical needs while promoting posture, comfort, and long-term mobility.
