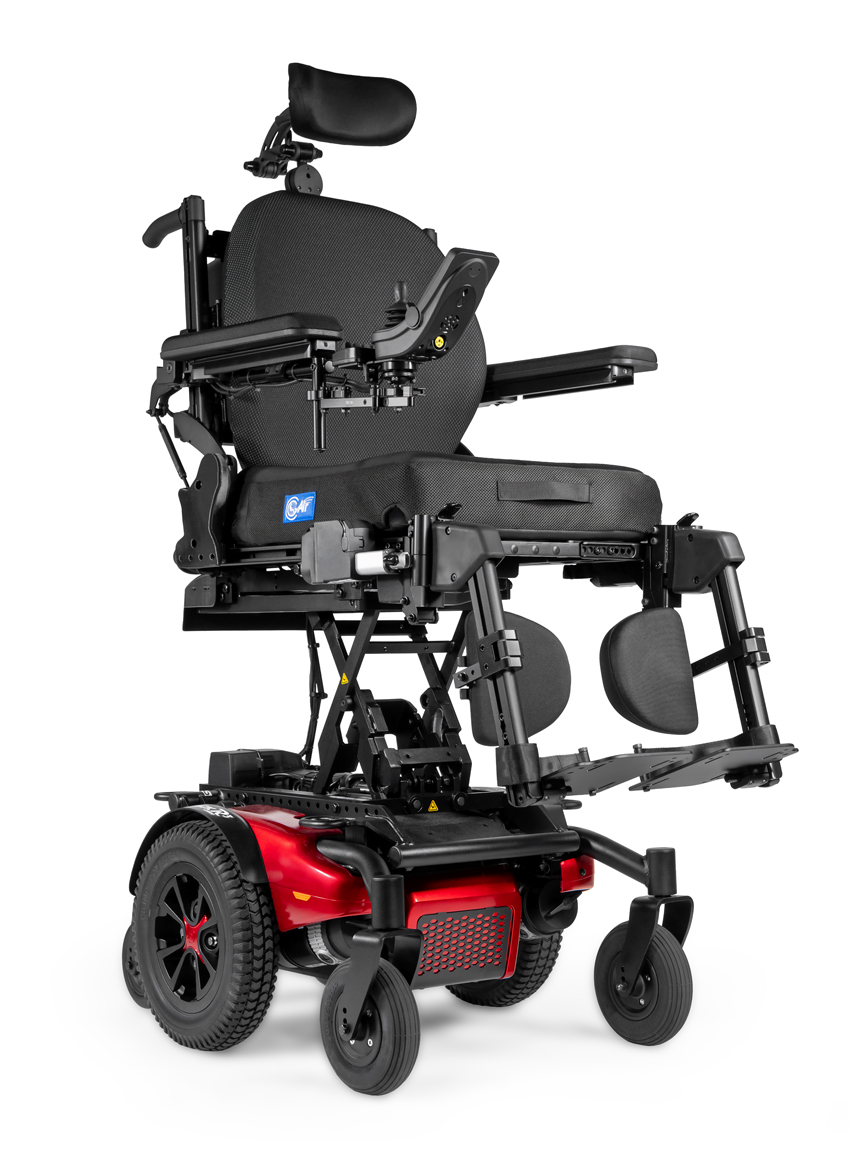

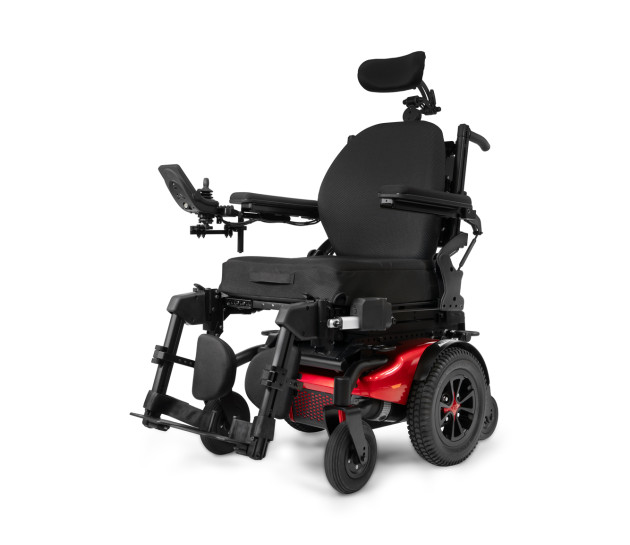

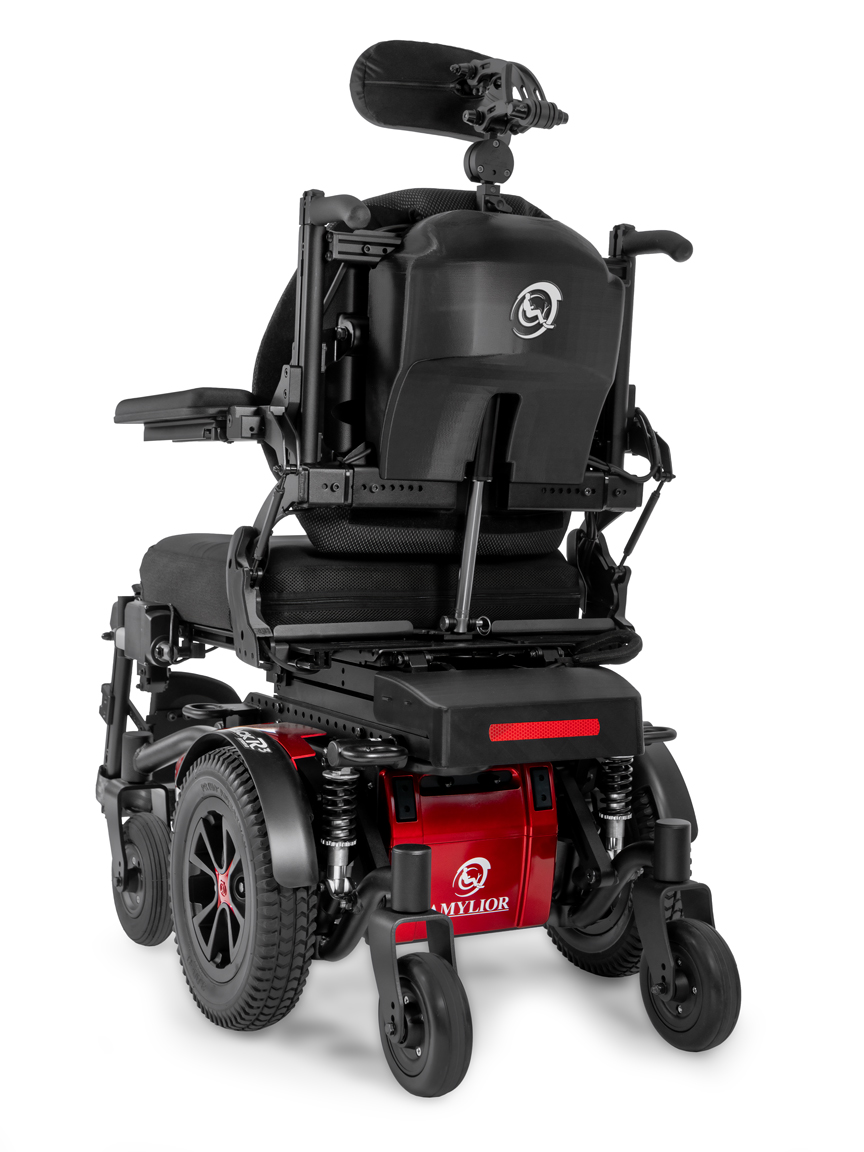

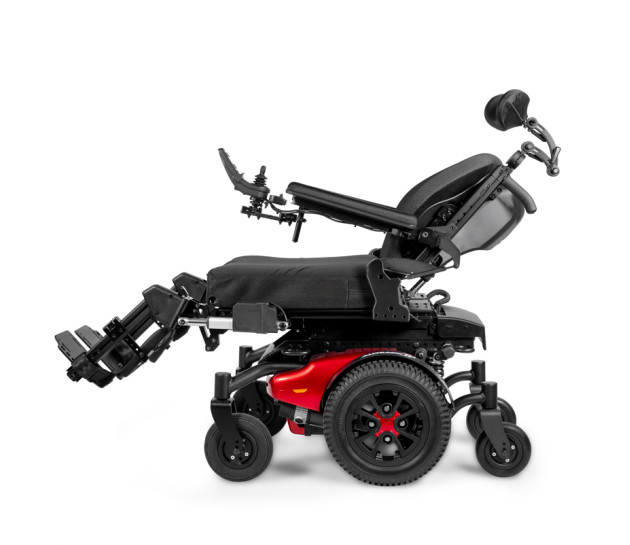

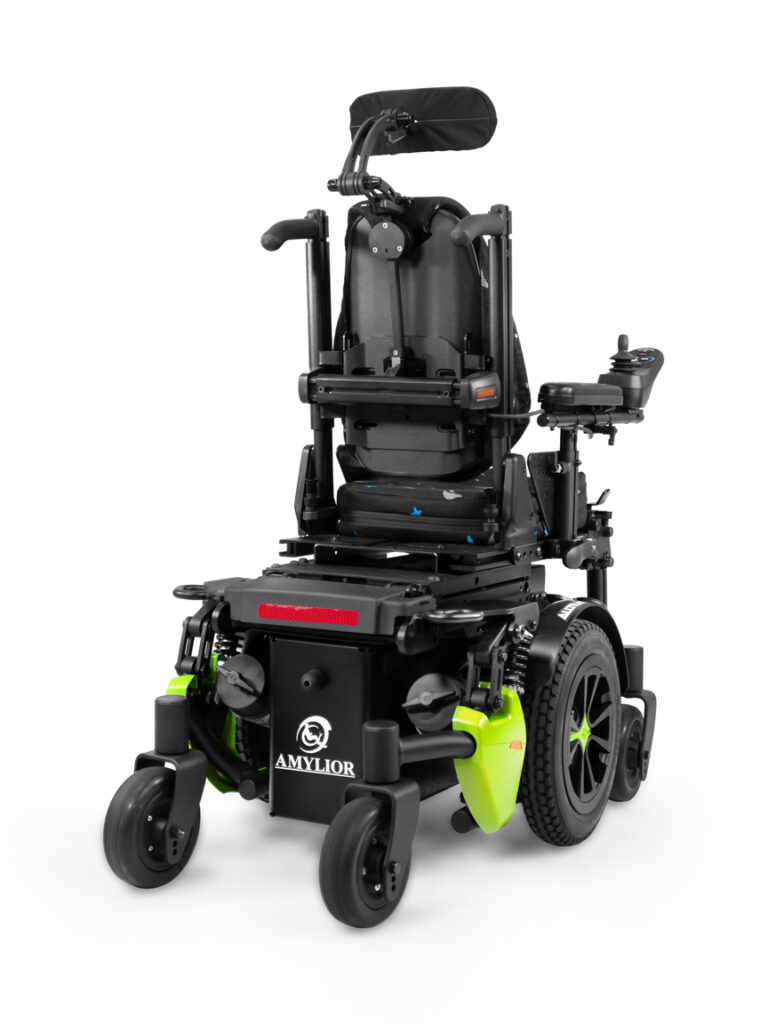

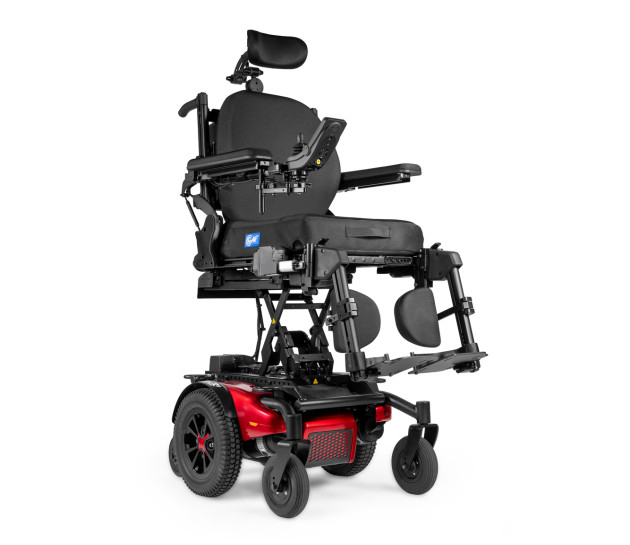

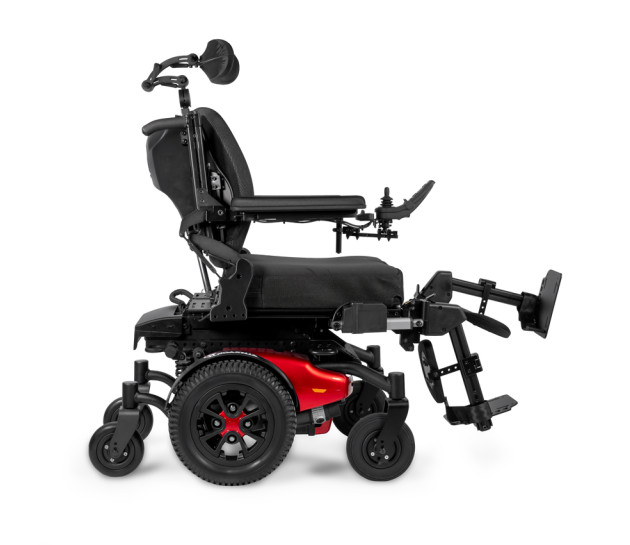

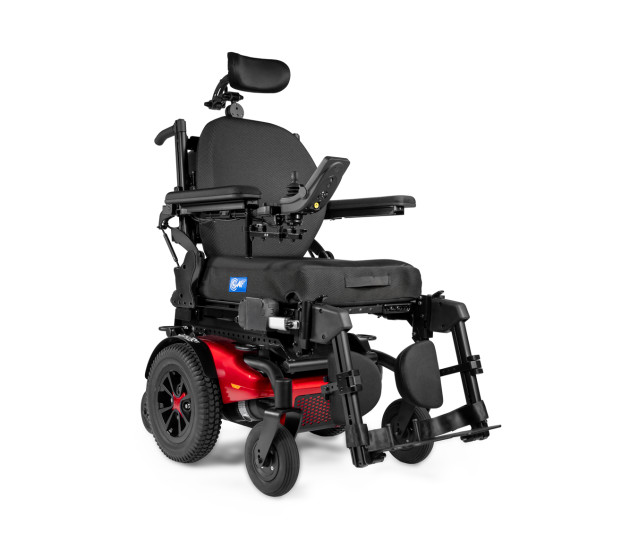

Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)
Alltrack R3 Signature (Standard)

Alltrack R3 Signature (Standard)

Brand: All The Alltrack

Enquire Now

Enquire Now

Important Note: Available only in NSW. Not available in VIC, SA, or WA.

    call

    If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.

    leading-worldwide-brands

    Leading Worldwide Brands

    australia-wide-shipping

    Australia Wide Shipping

    guaranteed

    High Quality Manufacturing

    custom-measure

    Custom Made to Measure

    • Description
    • Specifications
    • Review

    HYBRID-WHEEL DRIVE POWER WHEELCHAIRS STANDARD

    The Best of Both Worlds. Engineered for More.

    Why choose between outdoor performance and tight indoor control when you can have both? The Alltrack R3 redefines what a rear-wheel style power wheelchair can be, thanks to its true Hybrid-Wheel Drive design. Positioned between mid- and rear-wheel drive, the R3 delivers impressive speed, stability, and comfort on challenging terrain—without compromising on maneuverability. Its compact footprint, combined with our patented dual-action suspension, allows users to navigate everyday life with confidence, inside and out. Whether you’re turning tight corners or cruising across open spaces, the R3 adapts to your lifestyle.

    HIGHLIGHTS

    • True Hybrid-Wheel Drive (HWD) design
    • Outdoor performance and driving feel of rear-wheel drive with compact mid-wheel agility
    • Ultra-Compact 21.75” (550 mm) turning radius for excellent indoor maneuverability
    • Weight capacity up to 300 lb (136 kg)
    • Seat-to-Floor Height as low as 15.5”, supporting easier transfers and better access to daily environments.
    Configuration Hybrid-wheel drive – Standard (Alltack R3 Hybrid)
    HCPCS Codes K0848/K0856/K0861
    Suspension system Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
    Ground clearance1 3.5” (90 mm) with 14” (355 mm) drive wheels,
    2.875” (75 mm) with 12.5” (320 mm) drive wheels
    Base width2 23.375” (595 mm) with GP 22 batteries or 25.375” (645 mm) with GP 24 batteries
    Base length2 35.875” (910 mm)
    Base turning radius 21.75” (550 mm)
    Weight capacity 0-300 lb (0-136 kg)
    4-Pole motor options 6.5 mph (10 km/h) Std
    8.5 mph (13.7 km/h) option max. user weight 250 lb (113 kg)
    Transit option 4-point tie-down attachment points compliant with ISO 7176-19
    Battery types Two 12 V, deep cycle Gel cell Group 22NF (50 Ah) or Group 24 (70 Ah)
    Battery charger8  A, off board
    Electronics  VR2 (non-expandable 90 A) and Rnet (expandable 90 A or 120 A)
    Assistive driving package Available with Smart-Track technology
    Specialty controls Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems
    Seat width range Adjustable from 14” to 24” (355 mm to 610 mm) wide
    Power seating option and HCPCS codes³ Power Tilt (E1002),
    Power Recline with Mechanical Shear Reduction (MSR) (E1004),
    Combination Power Tilt and Recline with MSR (E1007),
    Center Mount Elevating & Articulating Foot Platform (E1012),
    Independent Power Elevating & Articulating Legrests (E1010),
    Alta Power Seat Elevation (E2298)
    Seat to floor height range
    (Tilt OR Seat Elevate)    		 15.5” to 19.5” (395 mm to 495 mm)
    Seat to floor height range
    (Tilt AND Seat Elevate)    		 17.5″, 18.5” or 19.5” (445 mm, 470 mm or 495 mm)
    Component weights4 Compact base width 23.375” (595 mm): 127 lb (57 kg)
    Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg)Standard base width 25.375”(645 mm): 132 lb (59 kg)
    Batteries: Group 24: 2 x 54 lb (24.5 kg)
    Drive wheel diameter 12.5” or 14” (320 mm or 355 mm)
    Caster wheel diameter 8” or 9” (205 mm or 230 mm)

    1. Subject to variances depending on configuration and manufacturing tolerances.
    2. Dimensions listed are for power base only.
    3. Custom specialized power seating options available.
    4. Contact Customer Service for additional weight information.
