Alltrack P3 MWD Signature

Name: Alltrack P3 MWD Signature
Brand: Amylior
SKU: 3290
Availability: InStock

Brand: Amylior

Enquire Now

If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.

Leading Worldwide Brands

Australia Wide Shipping

High Quality Manufacturing

Custom Made to Measure

Description
Specifications
Signature
Review

PEDIATRIC POWER WHEELCHAIRS
MID-WHEEl DRIVE (MWD)

Built for adventure. Engineered for independence.

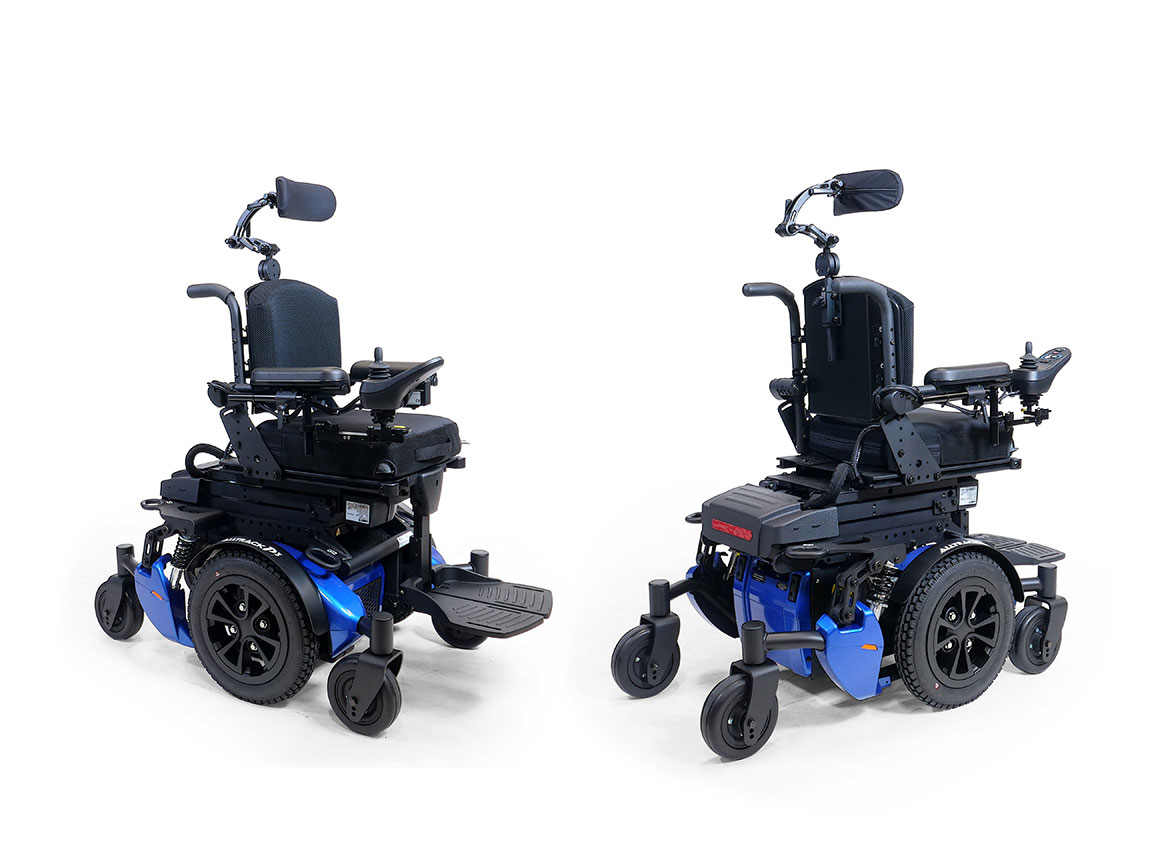

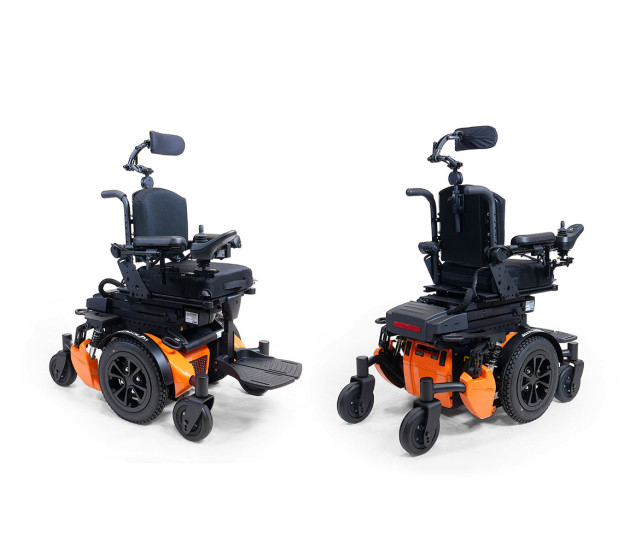

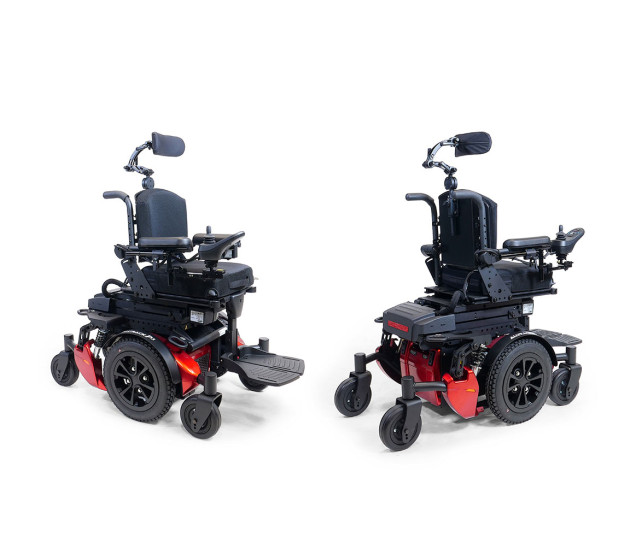

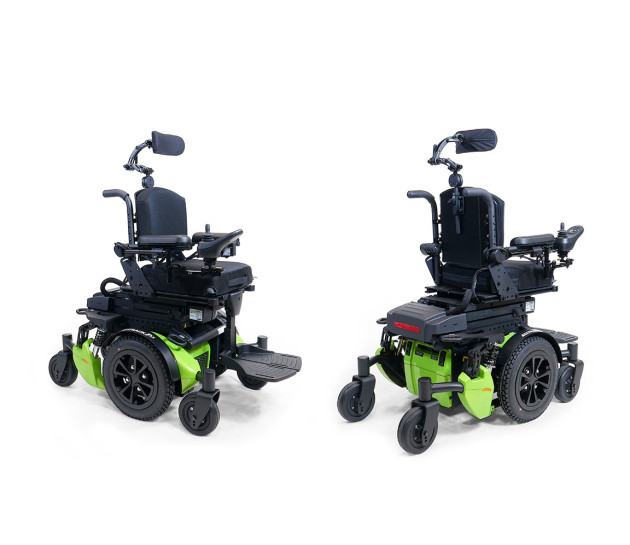

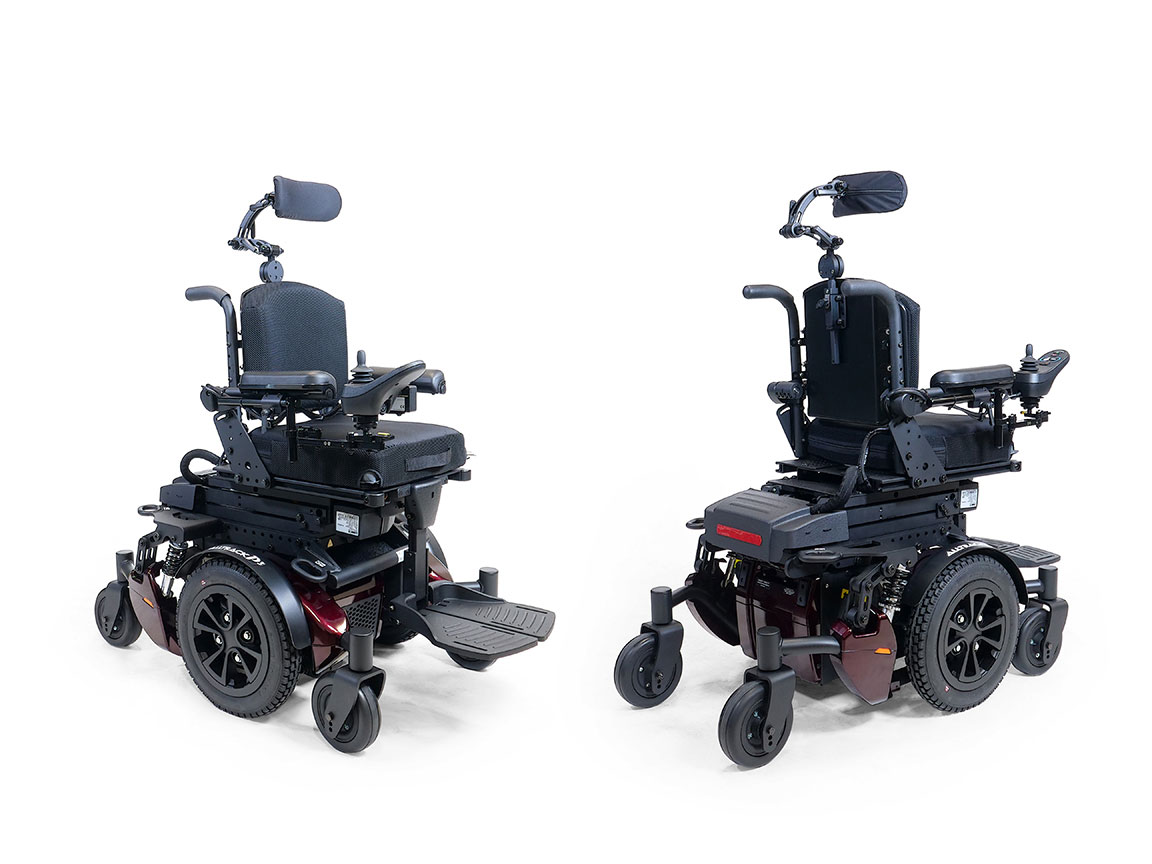

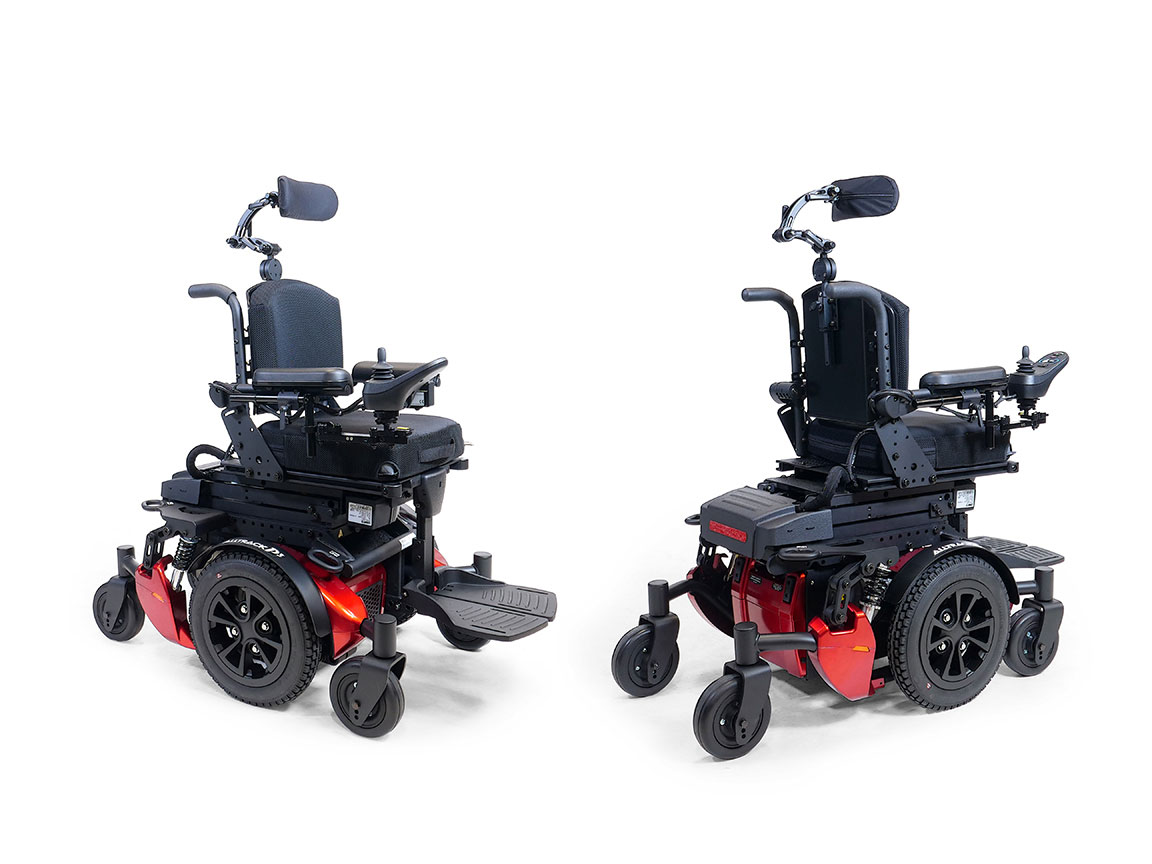

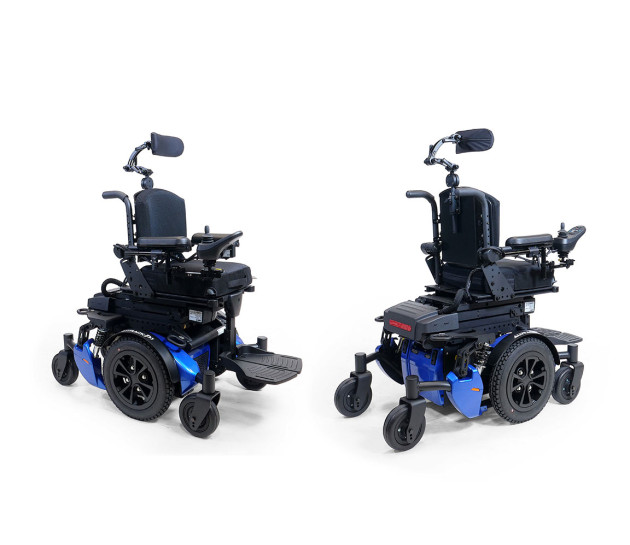

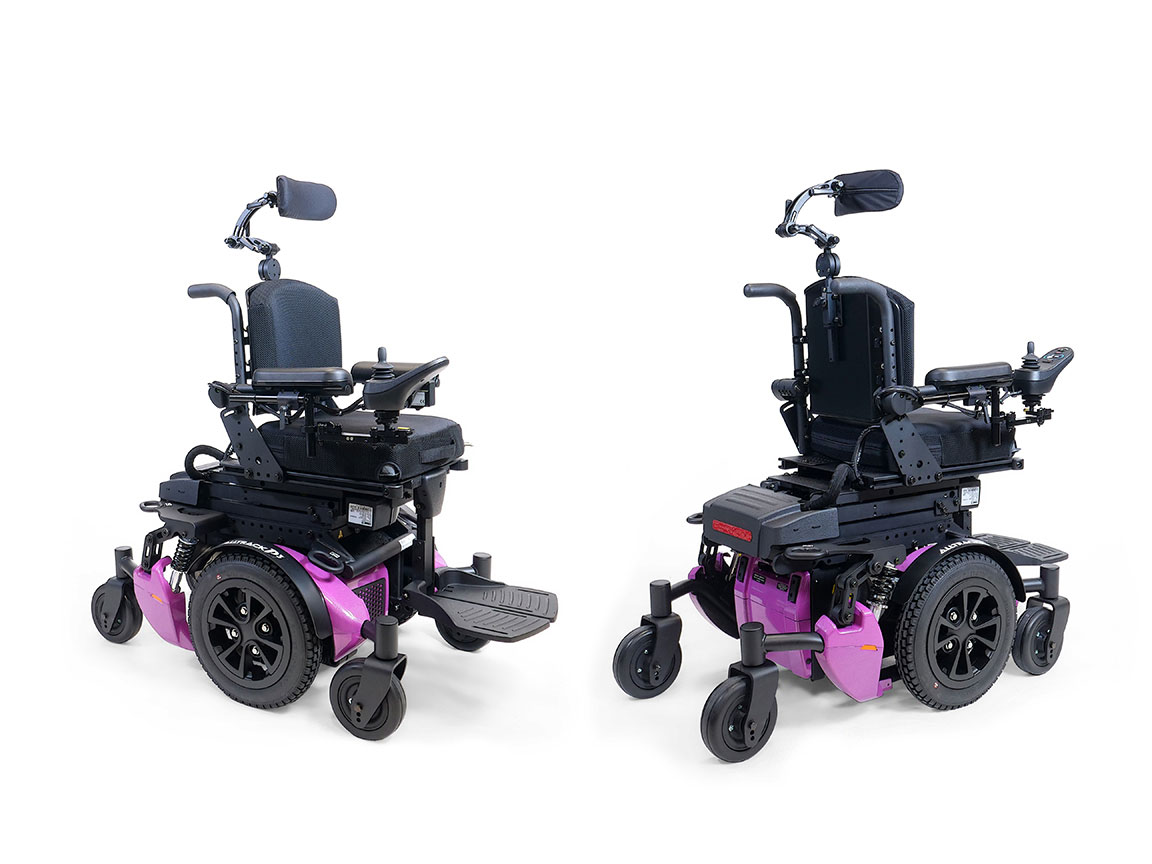

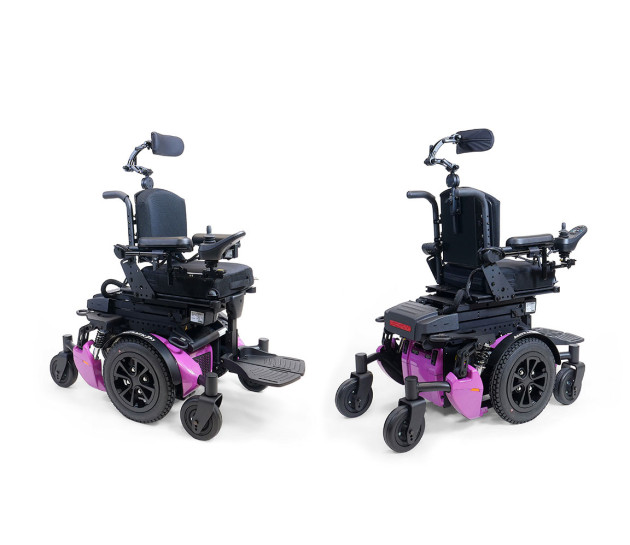

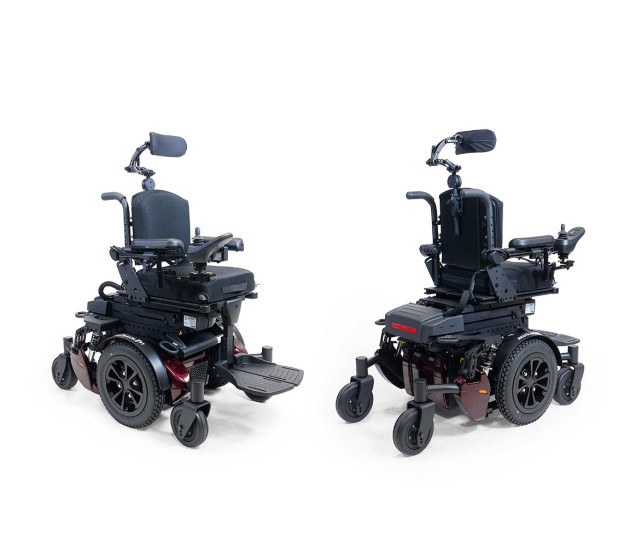

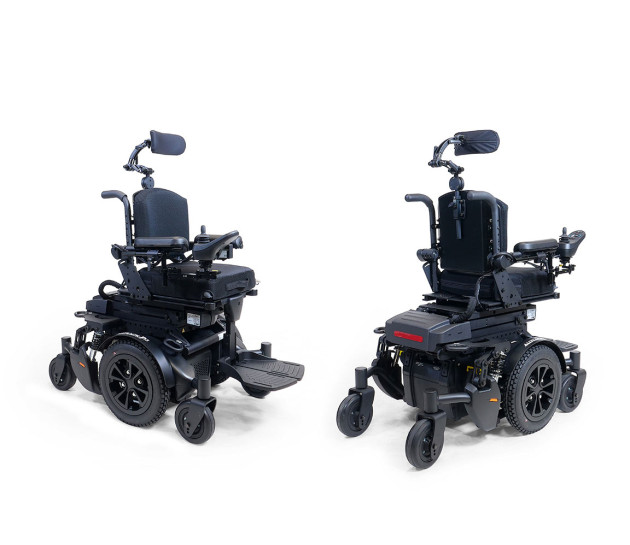

The Alltrack P3 MWD offers the same proven performance and durability as our full-size Alltrack M3 in a compact kid-friendly package designed for exploration and growth. Engineered on our robust M3 base, the P3 delivers unmatched stability, comfort, and maneuverability with a suspension system specifically tuned for lighter users. Its compact footprint and customizable features make it an ideal solution for children who need reliable mobility that adapts with them.

HIGHLIGHTS

Base widths as narrow as 21” (535 mm ) with Group 22 batteries, and 14” (355 mm) drive wheels
Seat-to-floor height as low as 15.5” (395 mm)
Versatile and compact design ideal for both indoor and outdoor environments

Click here to watch the video

Brand	AMYLIOR
Configuration	Pediatric Mid-wheel drive (Alltrack P3 MWD)
HCPCS Codes	K0848/K0856/K0861
Suspension system	Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
Ground clearance¹	2.875” (75 mm) with 12.5” (320 mm) drive wheels, 3.5” (90 mm) with 14” (355 mm) drive wheels
Base width²	Compact base width 23.375” (595 mm) with GP 22 batteries N2221 base width 21” (535 mm) with GP 22 batteries (MWD Only) N2424 base width 24” (910 mm) with GP 24 batteries (MWD Only)
Base length²	35.125” (890 mm)
Base turning radius	20” (510 mm)
Weight capacity	0-300 lb (0-136 kg)
4-Pole motor options	6.5 mph (10 km/h)
Transit option	4-point tie-down attachment points compliant with ISO 7176-19
Battery types	Two 12 V, deep cycle Gel cell Group 22NF (50 Ah) or Group 24 (70 Ah)
Battery charger	8 A, off board
Electronics	VR2 (non-expandable 90 A) and R-net (expandable 90 A or 120 A)
Assistive driving package	Available with Smart-Track technology
Specialty controls	Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems
Seat width range	Adjustable from 11” to 19” wide (290 mm to 480 mm)
Power seating options and HCPCS codes³	Power Tilt (E1002), Power Recline with Mechanical Shear Reduction (MSR) (E1004), Combination Power Tilt and Recline with MSR (E1007), Center Mount Elevating & Articulating Foot Platform (E1012), Independent Power Elevating & Articulating Legrests (E1010), Alta Power Seat Elevation (E2298)
Seat to floor height range (Tilt OR Seat Elevate)	15.5” to 19.5” (395 mm to 495 mm)
Seat to floor height range (Tilt AND Seat Elevate)	17.5″, 18.5” or 19.5” (445 mm, 470 mm or 495 mm)
Component weights³	Compact base width 23.375″(595 mm): 128 lb (58 kg) Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg)N2221 base width 21″(535 mm): 126 lb (57 kg) Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg)N2424 base width 24″(610 mm): 137 lb (62 kg) Batteries: Group 24: 2 x 54 lb (24.5 kg)
Drive wheel diameter	12.5” or 14” (320 mm or 355 mm)
Caster wheel diameter	6” or 8” (150 mm or 205 mm)

1. Subject to variances depending on configuration and manufacturing tolerances.
2. Dimensions listed are for power base only.
3. Custom specialized power seating options available.
4. Contact Customer Service for additional weight information.

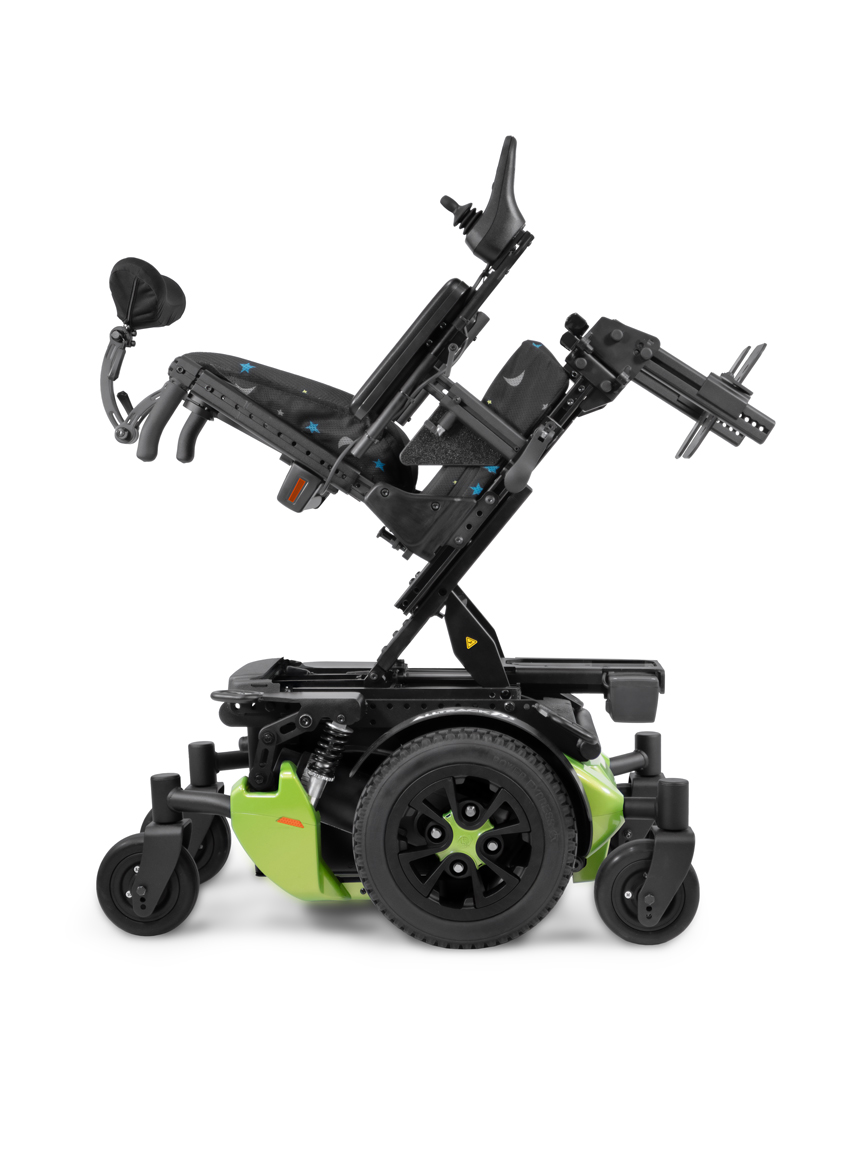

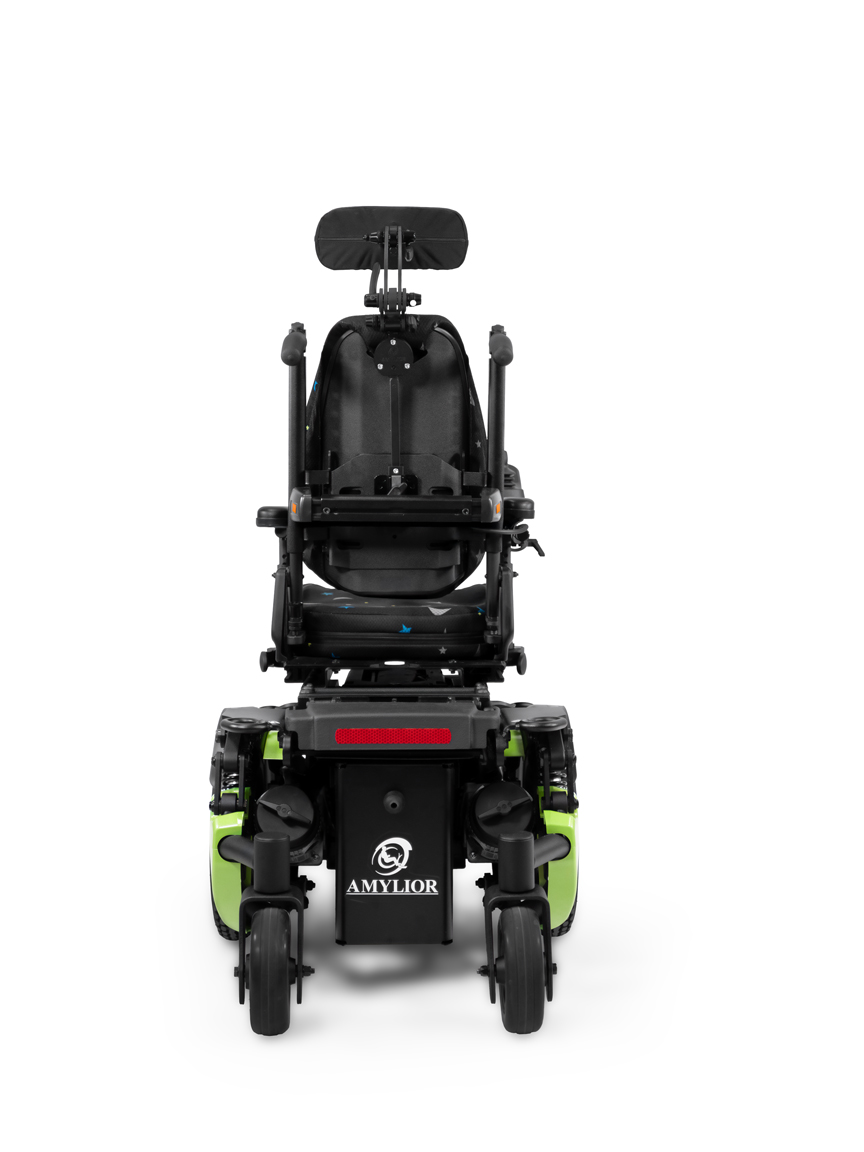

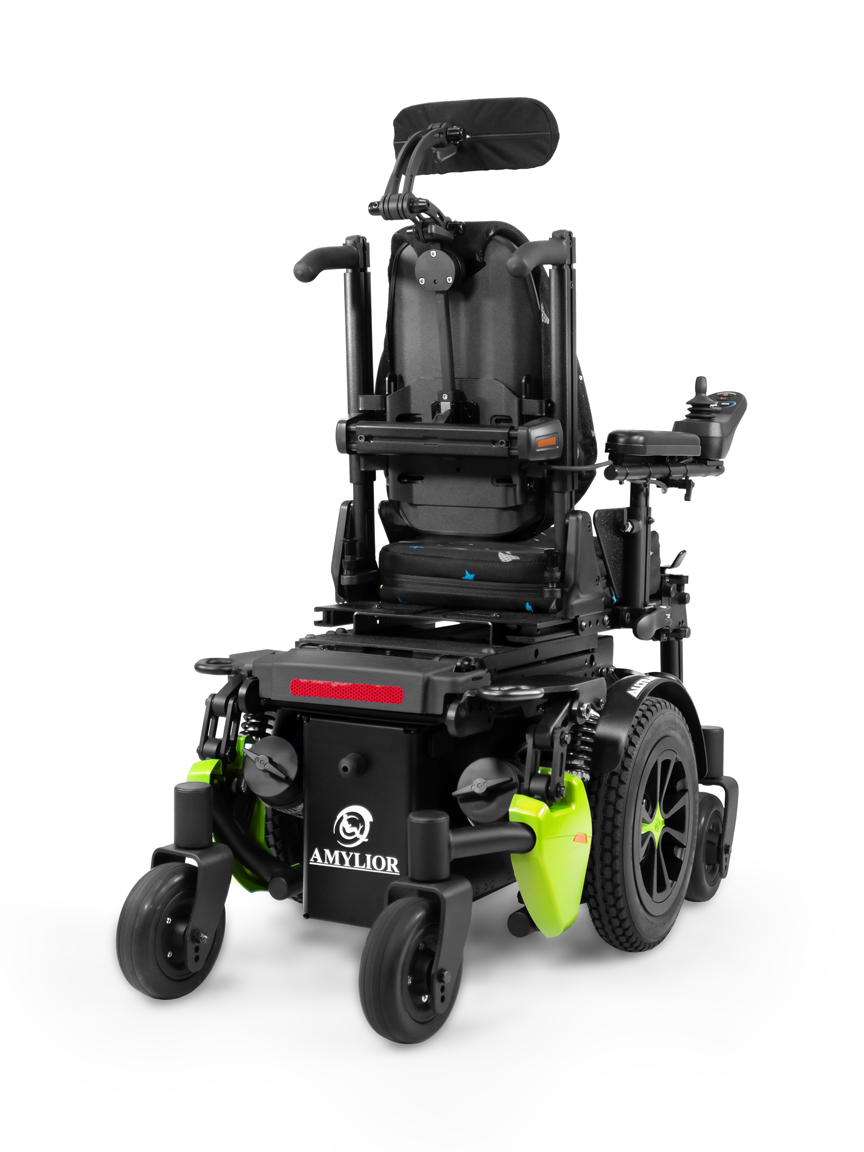

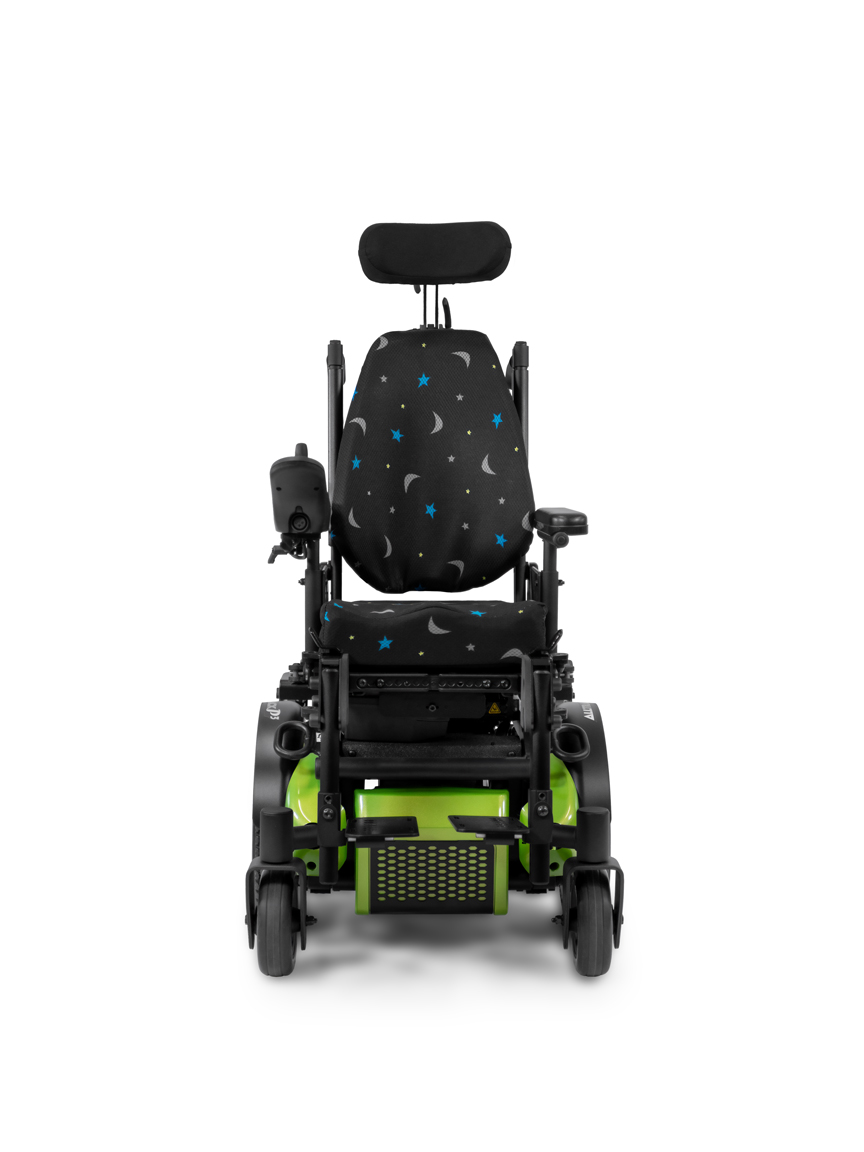

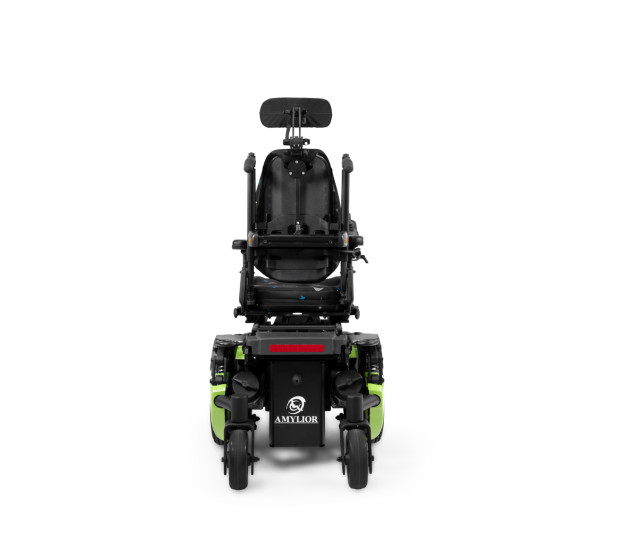

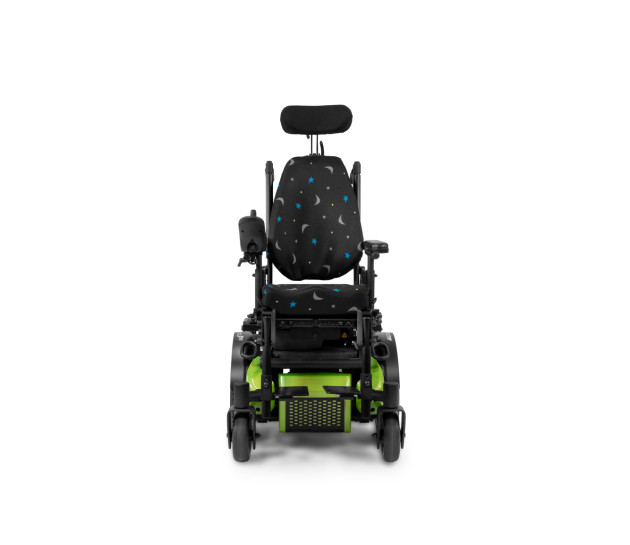

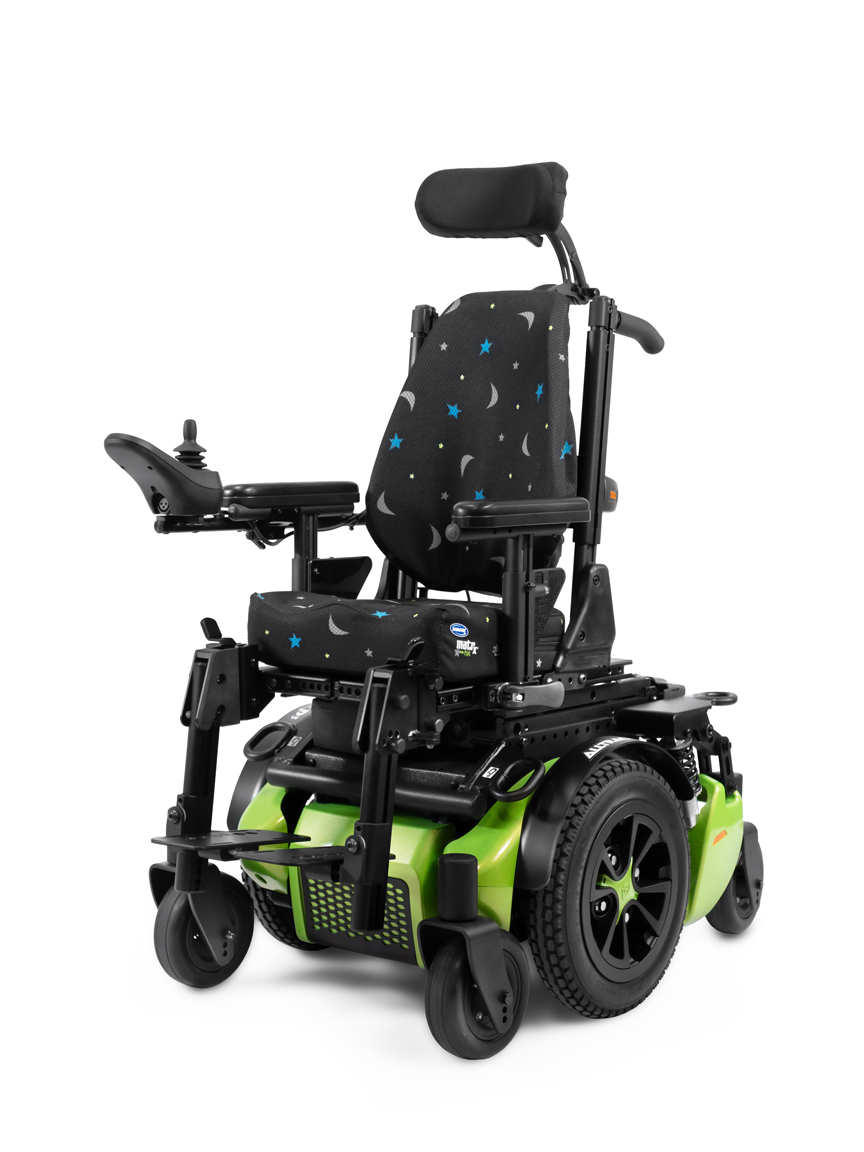

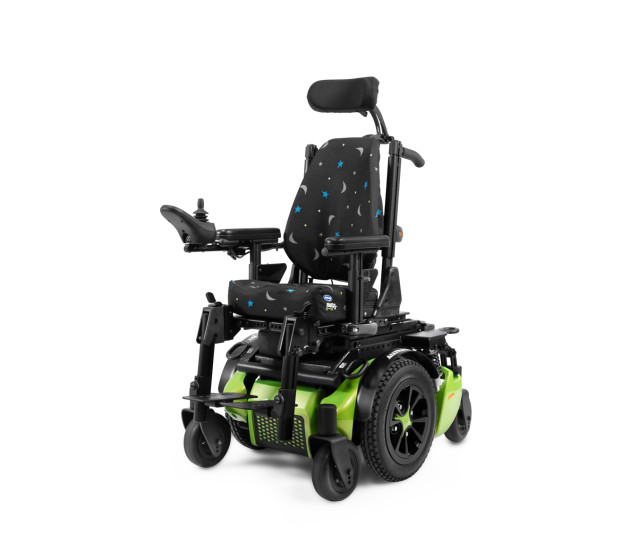

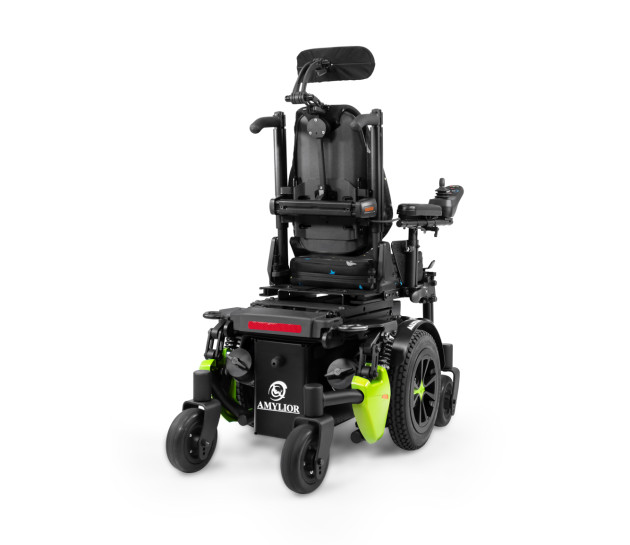

SIGNATURE – Tailored Positioning Solutions

Why Signature?

Our all-new Signature power positioning system has been completely re-imagined, delivering a new modern aesthetic, enhanced adjustability and all the durability and reliability Amylior is known for. Available on every Alltrack model, Signature boasts industry leading modularity and the capability to provide Tailored Solutions for even the most complex positioning needs.

Tailored for the user	Highly modular with adjustments to meet the unique needs of virtually any user. Easier and faster adjustments—without compromising structural integrity.
Durability meets design	High-quality, durable construction designed to maintain structural integrity. Improved aesthetics with a sleek, modern look. Lighter weight for easier handling and transport, yet stronger than ever.
Adjustable and adaptable	Offering adaptable capabilities and high weight capacities up to 550 lb. Minimum seat-to-floor heights remain unchanged and start at 15.5″ on Standard and HD models, and as low as 17″ on VHD model Compact and narrow base options are perfect for pediatric users. Designed to evolve and grow with the user. Simplified, faster and easier adjustment.
Efficiency and reliability	Improved efficiency in production and delivery for quicker lead times and order accuracy. Thoughtfully designed for seamless integration of a wide range of electronic, seating and positioning accessories, making sure both users and technicians experience ease and reliability. Signature is built with the future in mind, with a single manufacturer for your seating, power mobility, and power positioning needs.
Exclusively Amylior	All of our products are engineered and assembled in North America. One manufacturer that can handle all your power mobility needs from simple to complex, pediatric to bariatric.
Custom Solutions	Built with versatility at its core, Signature features a modular design that supports a wide range of custom seating and positioning configurations—including specialized cushions, backrests, and lateral supports. Offers full integration of advanced power positioning solutions including lateral tilt, latitude systems, power headrests, power swing-away mounts, and vertical or flip-up foot platforms — with configurations designed to meet a wide variety of user needs. Extensive adjustability in height, width, depth, and length ensures a truly tailored fit, supporting complex clinical needs while promoting posture, comfort, and long-term mobility.
