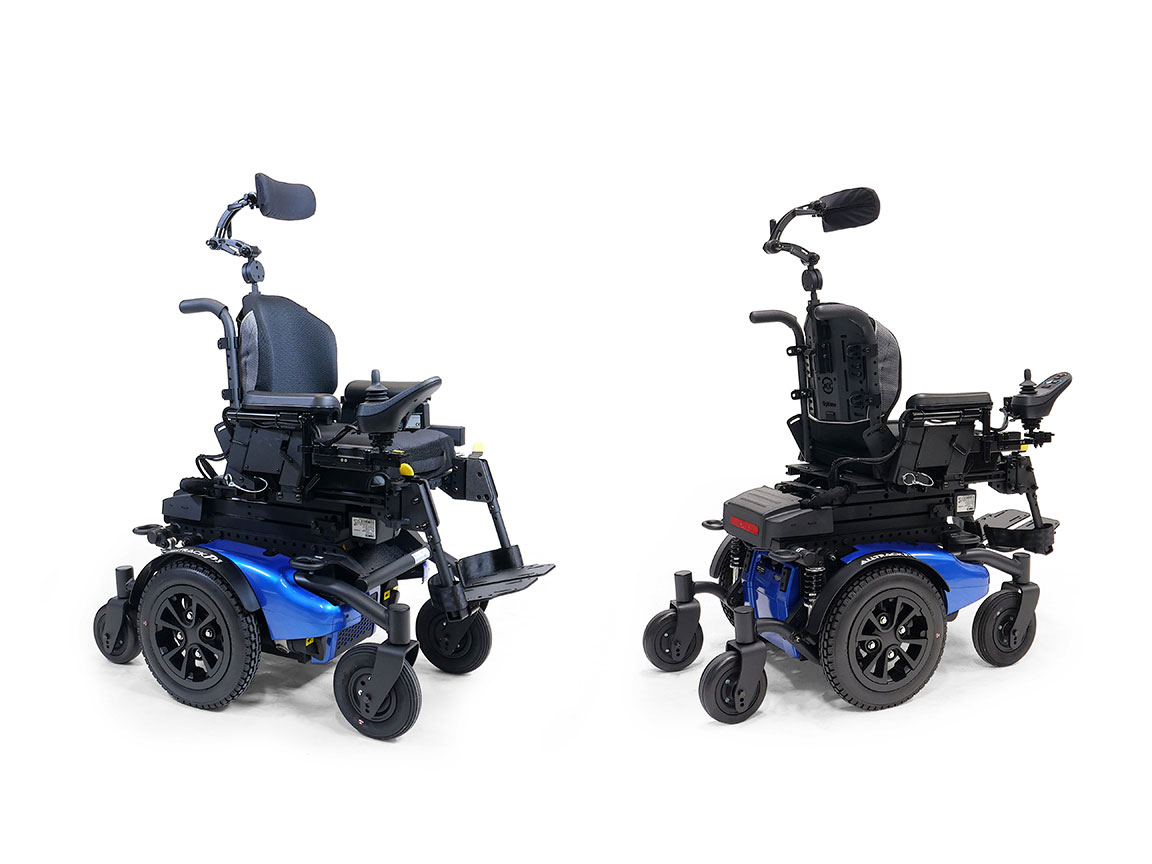

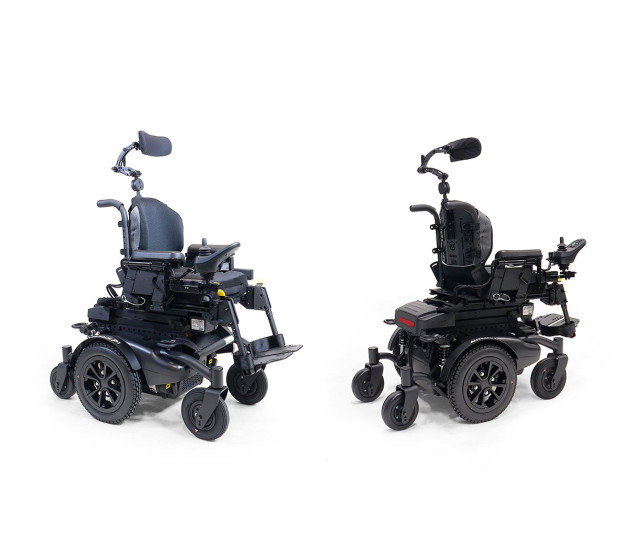

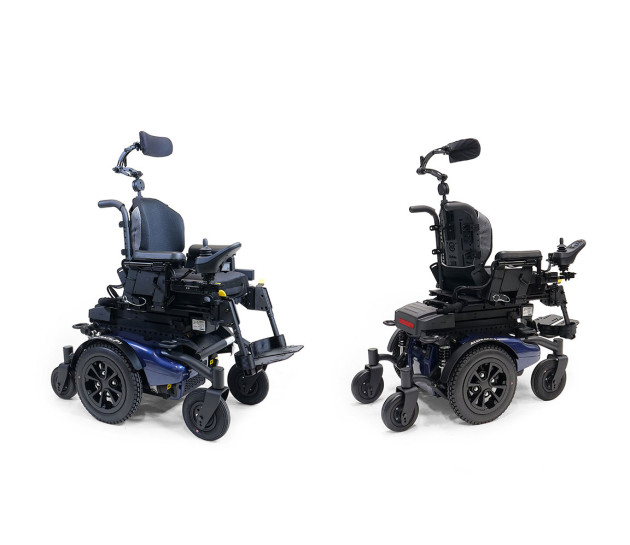

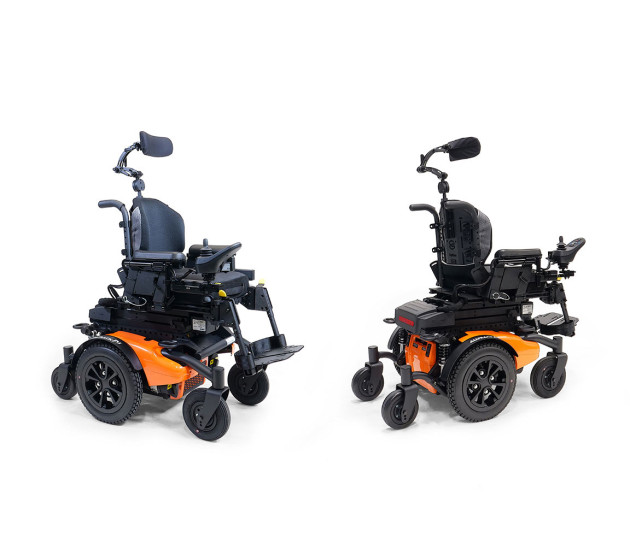

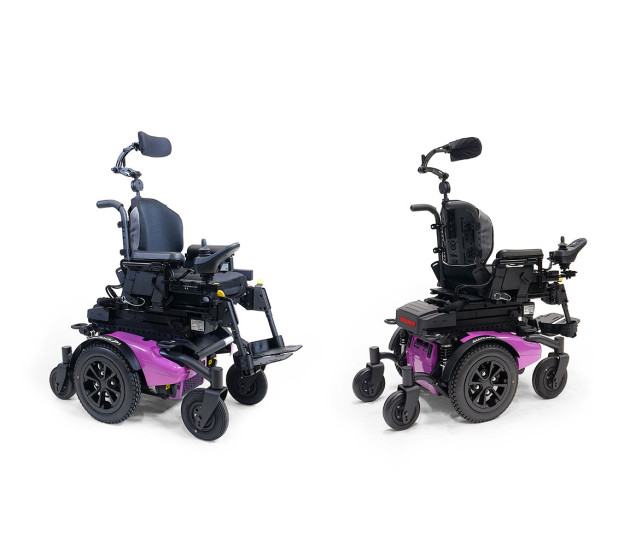

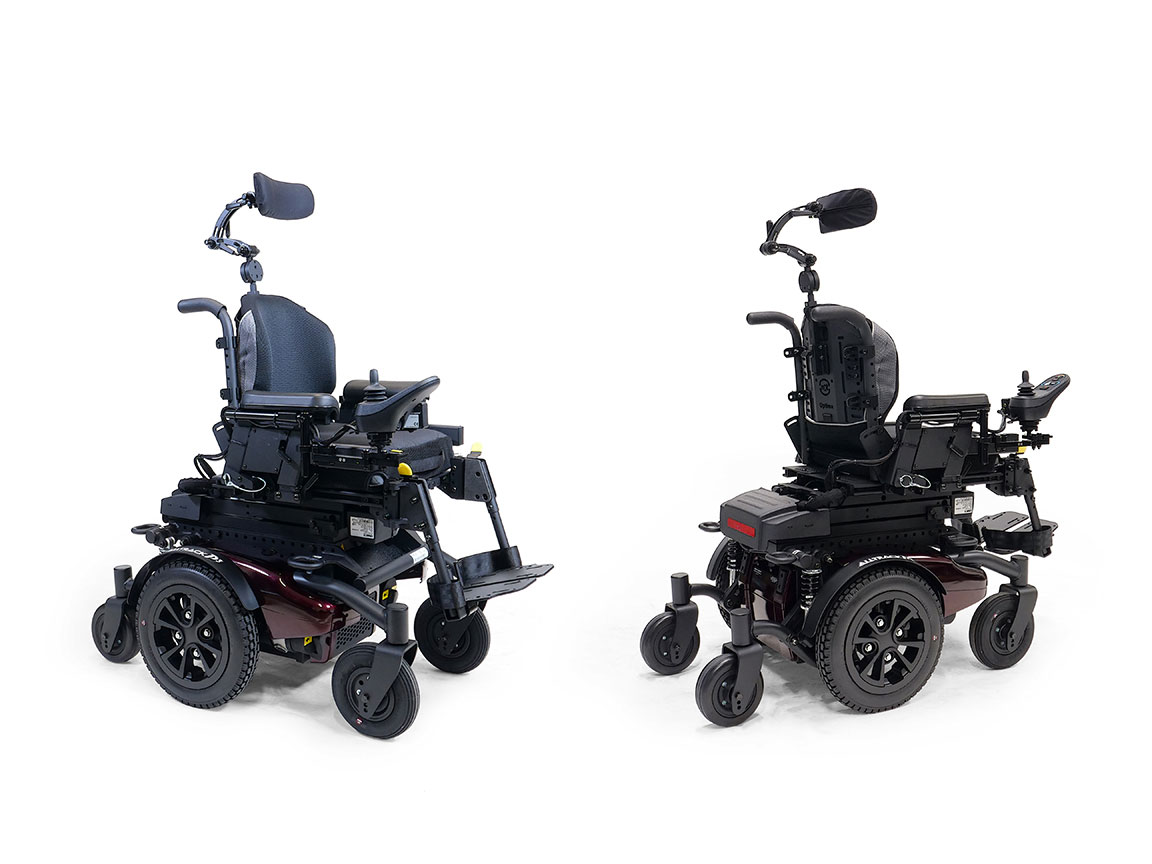

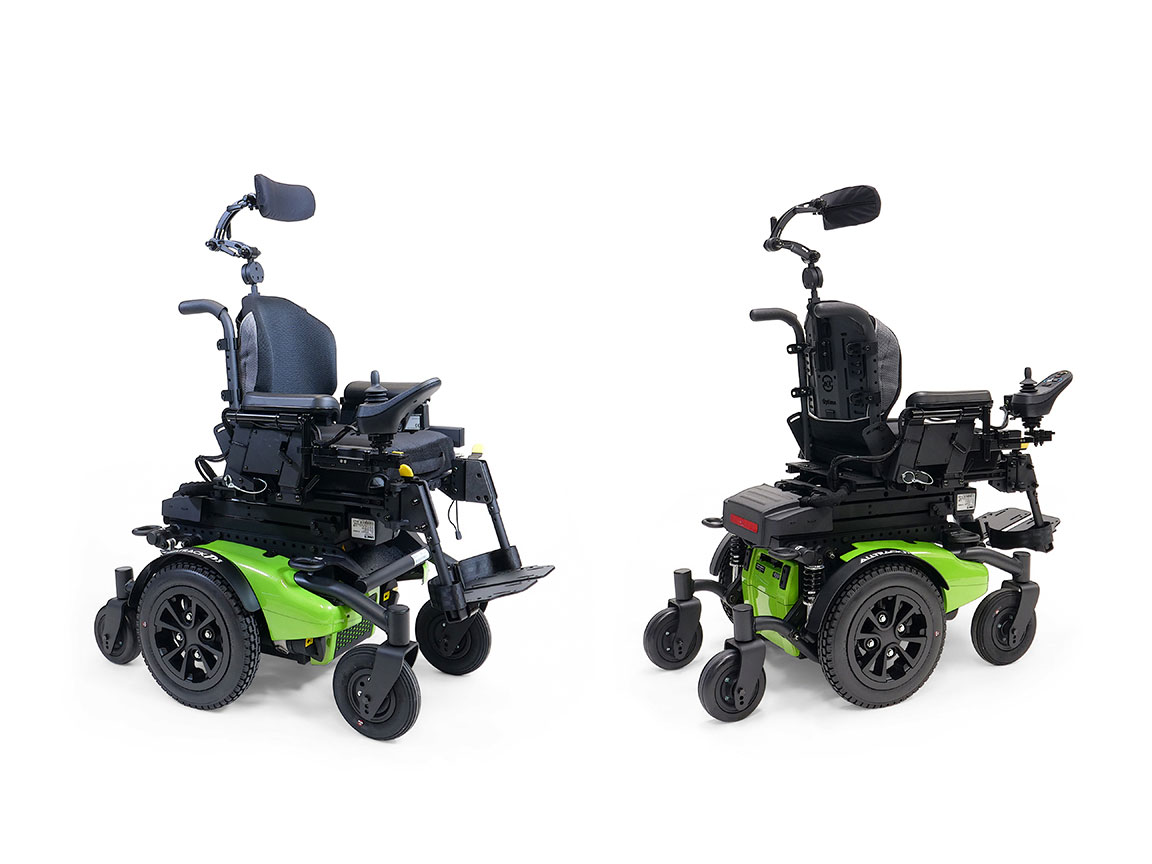

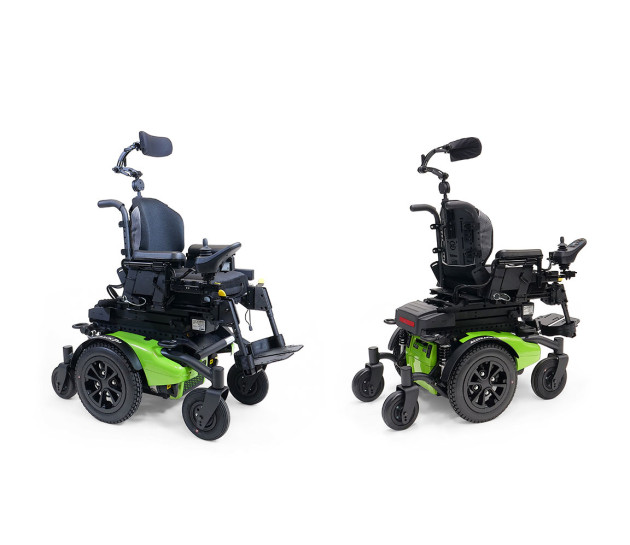

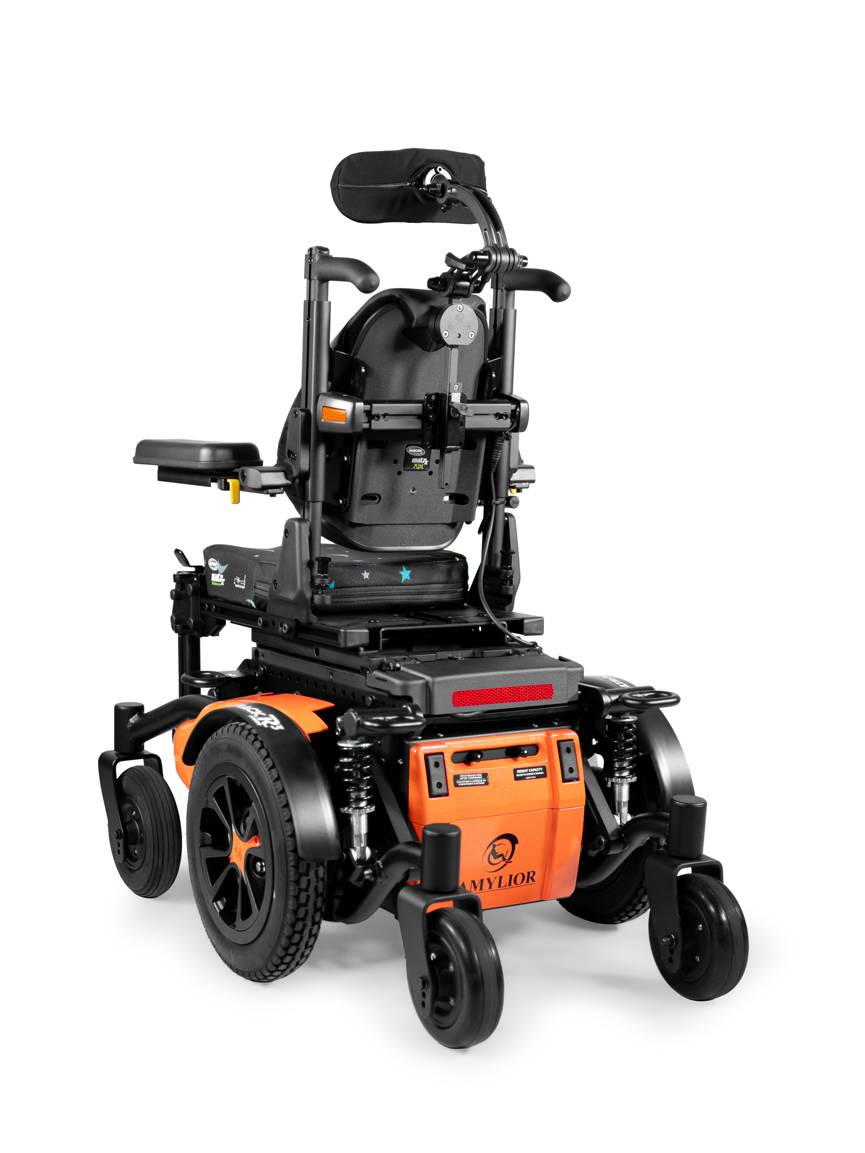

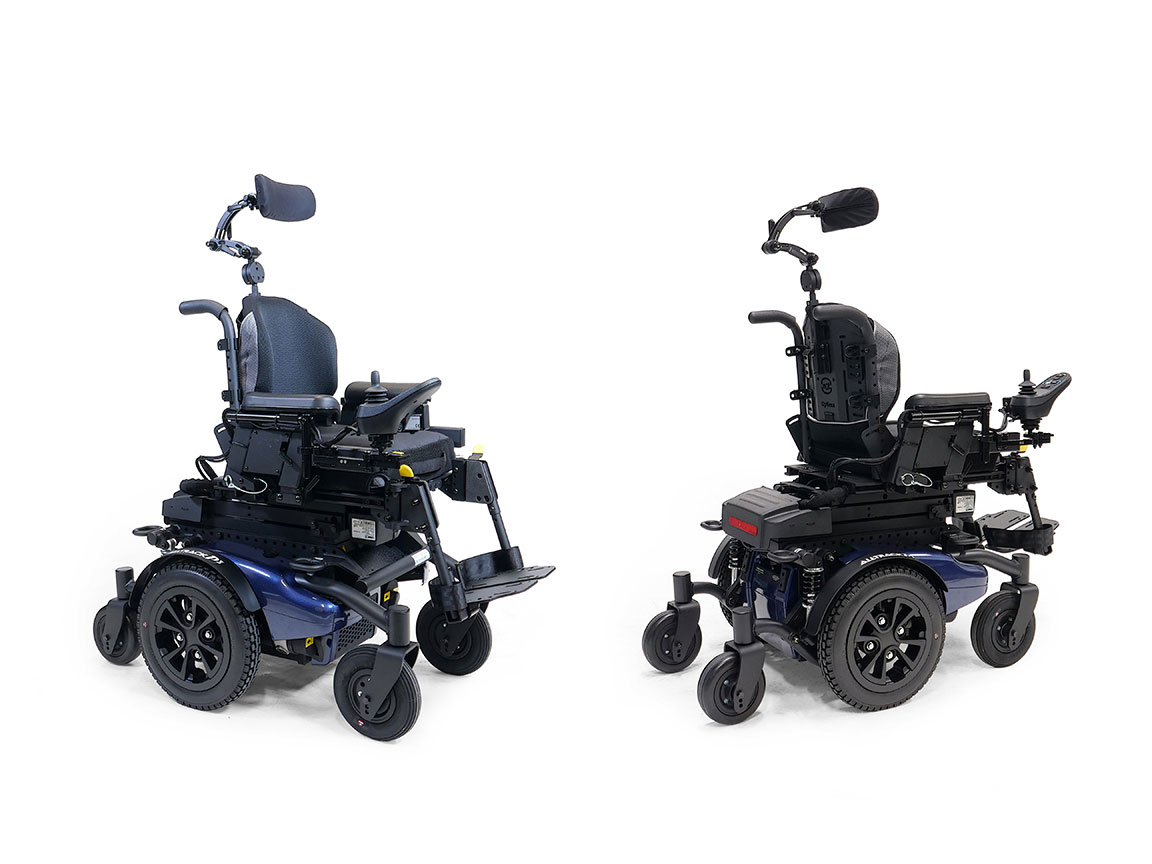

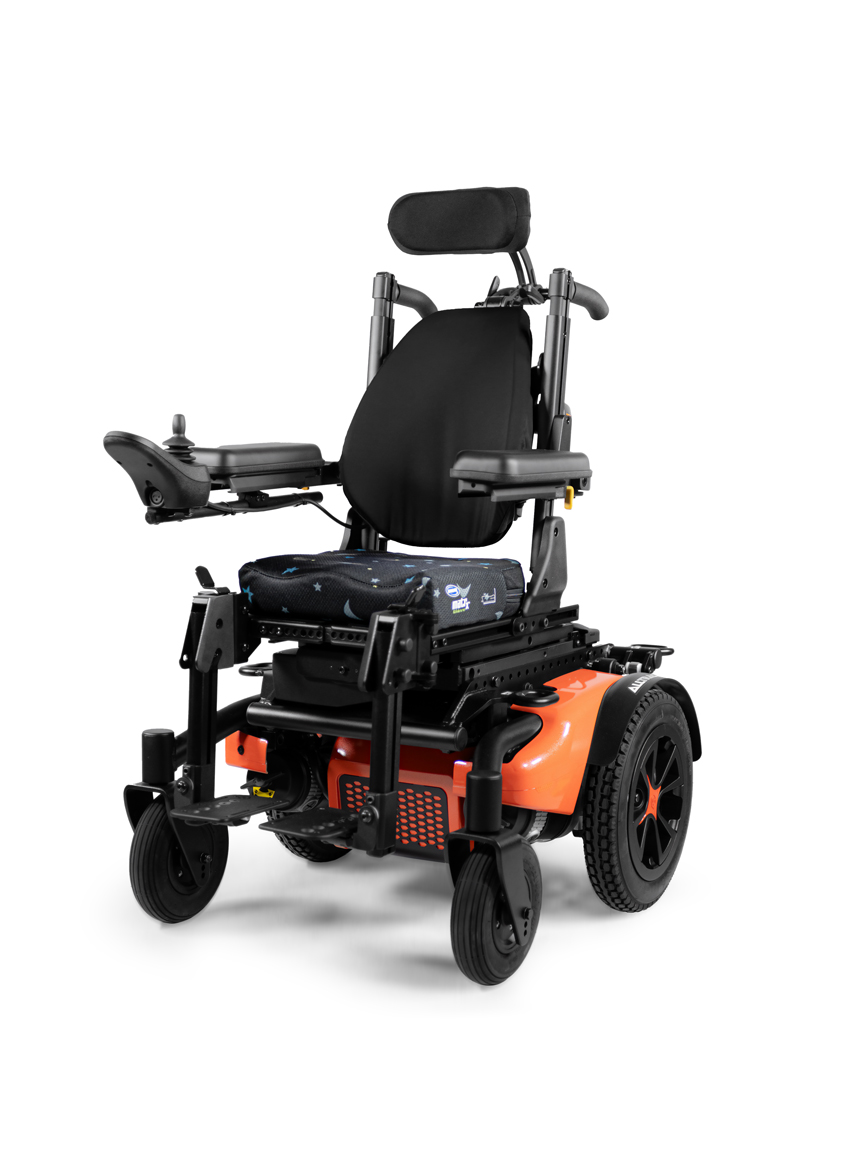

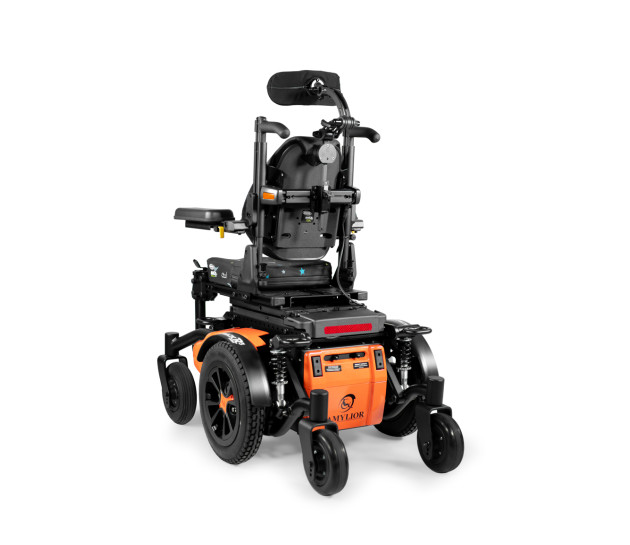

Alltrack P3 HWD Signature

Name: Alltrack P3 HWD Signature
Brand: Amylior
SKU: 3291
Availability: InStock

Brand: Amylior

Enquire Now

If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.

Leading Worldwide Brands

Australia Wide Shipping

High Quality Manufacturing

Custom Made to Measure

Description
Specifications
Signature
Review

PEDIATRIC POWER WHEELCHAIRS
hybrid-wheel drive (HWD)

Power to Play. Freedom to Explore.

The Alltrack P3 HWD is the only true hybrid-wheel drive power wheelchair designed for active smaller users — combining indoor agility with outdoor freedom in one powerful, compact package. Whether cruising through tight spaces or exploring with friends, the P3 HWD delivers smooth, stable performance with a suspension system specially tuned for lighter riders. With base widths starting at just 23.375” and a full suite of power positioning and specialty control options, this chair can evolve with its user and is ready to handle whatever adventures lie ahead.

HIGHLIGHTS

Compact, hybrid-wheel drive performance indoor and outdoor
Base widths as narrow as 23.375” (595 mm) without sacrificing battery size or capability
Seat-to-floor height as low as 15.5” (395 mm)
Optional high-speed 4-pole motors offer speeds up to 8.5 mph (13,5 km/h) for users on the go

Click here to watch the video

Brand	AMYLIOR
Configuration	Pediatric Hybrid-wheel drive (Alltrack P3 HWD)
HCPCS Codes	K0848/K0856/K0861
Suspension system	Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
Ground clearance¹	2.875” (75 mm) with 12.5” (320 mm) drive wheels, 3.5” (90 mm) with 14” (355 mm) drive wheels
Base width²	Compact base width 23.375” (595 mm) with GP 22 batteries
Base length²	35.875” (910 mm)
Base turning radius	21.75” (550 mm)
Weight capacity	0-300 lb (0-136 kg)
4-Pole motor options	6.5 mph (10 km/h) Std 8.5 mph (13.7 km/h) option maximum user weight 250 lb (113 kg)
Transit option	4-point tie-down attachment points compliant with ISO 7176-19
Battery type	Two 12 V, deep cycle Gel cell Group 22NF (50 Ah)
Battery charger	8 A, off board
Electronics	VR2 (non-expandable 90 A) and Rnet (expandable 90 A or 120 A)
Assistive driving package	Available with Smart-Track technology
Specialty controls	Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems
Seat width range	Adjustable from 11” to 19” wide (290 mm to 480 mm)
Power seating options and HCPCS codes³	Power Tilt (E1002), Power Recline with Mechanical Shear Reduction (MSR) (E1004), Combination Power Tilt and Recline with MSR (E1007), Center Mount Elevating & Articulating Foot Platform (E1012), Independent Power Elevating & Articulating Legrests (E1010), Alta Power Seat Elevation (E2298)
Seat to floor height range (With power tilt or Alta Power Seat Elevation)	15.5” to 19.5” (395 mm to 495 mm)
Seat to floor height range (With combo power tilt and Alta Power Seat Elevation)	17.5″, 18.5” or 19.5” (445 mm, 470 mm or 495 mm)
Component weights⁴	Compact base width 23.375”: 127 lb (57 kg) Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg)
Drive wheel diameter	12.5” or 14” (320 mm or 355 mm)
Caster wheel diameter	8” or 9” (205 mm or 230 mm)

1. Subject to variances depending on configuration and manufacturing tolerances.
2. Dimensions listed are for power base only.
3. Custom specialized power seating options available.
4. Contact Customer Service for additional weight information.

SIGNATURE – Tailored Positioning Solutions

Why Signature?

Our all-new Signature power positioning system has been completely re-imagined, delivering a new modern aesthetic, enhanced adjustability and all the durability and reliability Amylior is known for. Available on every Alltrack model, Signature boasts industry leading modularity and the capability to provide Tailored Solutions for even the most complex positioning needs.

Tailored for the user	Highly modular with adjustments to meet the unique needs of virtually any user. Easier and faster adjustments—without compromising structural integrity.
Durability meets design	High-quality, durable construction designed to maintain structural integrity. Improved aesthetics with a sleek, modern look. Lighter weight for easier handling and transport, yet stronger than ever.
Adjustable and adaptable	Offering adaptable capabilities and high weight capacities up to 550 lb. Minimum seat-to-floor heights remain unchanged and start at 15.5″ on Standard and HD models, and as low as 17″ on VHD model Compact and narrow base options are perfect for pediatric users. Designed to evolve and grow with the user. Simplified, faster and easier adjustment.
Efficiency and reliability	Improved efficiency in production and delivery for quicker lead times and order accuracy. Thoughtfully designed for seamless integration of a wide range of electronic, seating and positioning accessories, making sure both users and technicians experience ease and reliability. Signature is built with the future in mind, with a single manufacturer for your seating, power mobility, and power positioning needs.
Exclusively Amylior	All of our products are engineered and assembled in North America. One manufacturer that can handle all your power mobility needs from simple to complex, pediatric to bariatric.
Custom Solutions	Built with versatility at its core, Signature features a modular design that supports a wide range of custom seating and positioning configurations—including specialized cushions, backrests, and lateral supports. Offers full integration of advanced power positioning solutions including lateral tilt, latitude systems, power headrests, power swing-away mounts, and vertical or flip-up foot platforms — with configurations designed to meet a wide variety of user needs. Extensive adjustability in height, width, depth, and length ensures a truly tailored fit, supporting complex clinical needs while promoting posture, comfort, and long-term mobility.
