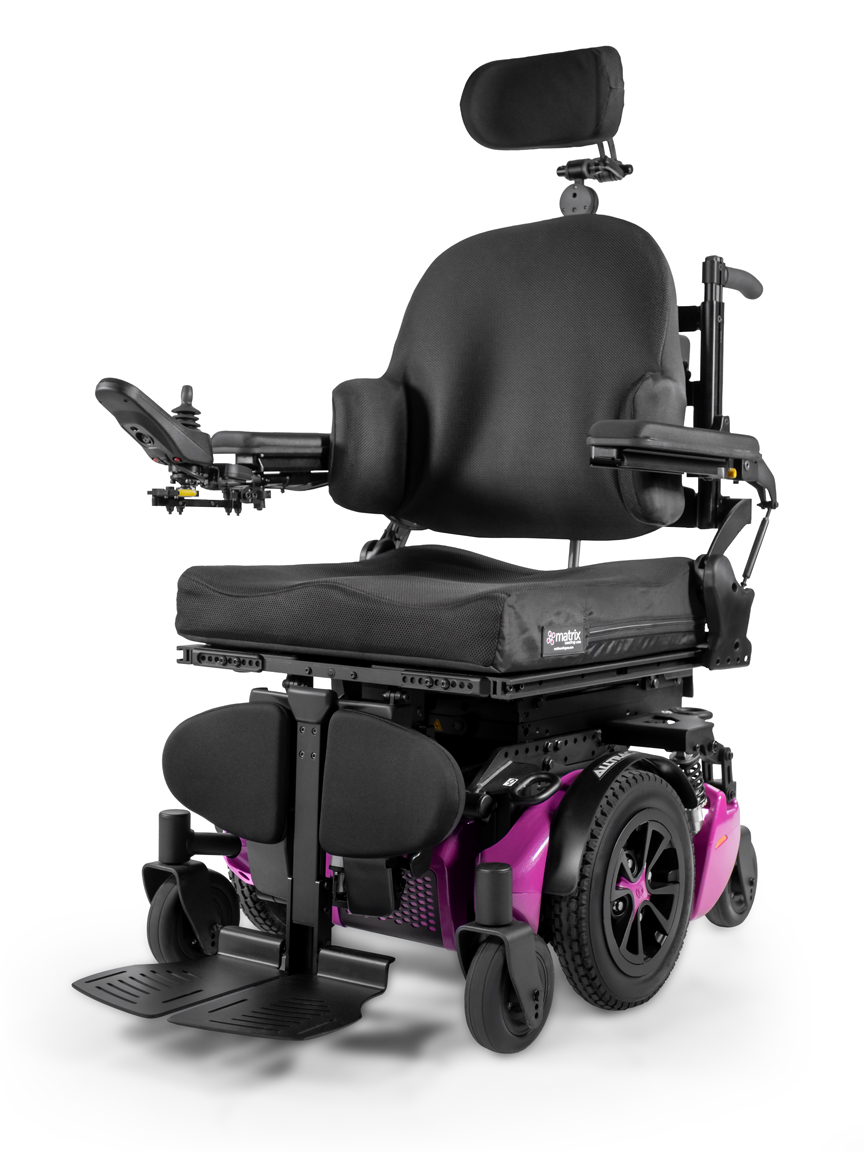

Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature
Alltrack M3HD Signature

Alltrack M3HD Signature

Brand: All The Alltrack

Enquire Now

Enquire Now

Important Note: Available only in NSW. Not available in VIC, SA, or WA.

    call

    If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.

    leading-worldwide-brands

    Leading Worldwide Brands

    australia-wide-shipping

    Australia Wide Shipping

    guaranteed

    High Quality Manufacturing

    custom-measure

    Custom Made to Measure

    • Description
    • Specifications
    • Review

    MID-WHEEL DRIVE HEAVY-DUTY POWER WHEELCHAIRS

    Heavy-Duty Power. Everyday Freedom.

    Engineered to support users up to 450 lb (205 kg), the Alltrack M3-HD delivers heavy-duty performance without sacrificing maneuverability, comfort or function. With the same compact footprint and turning radius as the standard M3, it easily navigates indoor spaces while providing the rugged durability needed for outdoor exploration. Reinforced components and an optimized Dual-Action Suspension system ensure a smooth, stable ride—no matter the terrain. For users who need more, the M3-HD offers strength, confidence, and complete independence in motion.

    HIGHLIGHTS

    • Industry leading low seat-to-floor heights starting at 15.5″ (395 mm)
    • Compact 20″ (510 mm) turning radius ensures excellent indoor maneuverability
    • Weight capacity up to 450 lb (205 kg)
    Configuration Mid-wheel drive – Heavy-duty (Alltrack M3-HD)
    HCPCS Codes K0850/K0858/K0862
    Suspension system Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
    Ground clearance1 3.5” (90 mm) with 14” (355 mm) drive wheels,
    2.875” (75 mm) with 12.5” (320 mm) drive wheels
    Base width2 Standard base width 25.375″ (645 mm) with GP 24 batteries
    Base length2 35.125” (890 mm)
    Base turning radius 20” (510 mm)
    Weight capacity 301-450 lb (136-205 kg)
    400 lb (181 kg) with Alta Power Seat elevation option
    4-Pole motor options 6.5 mph (10 km/h) Std
    5.4 mph (8.7 km/h) option
    Transit option  4-point tie-down attachment points compliant with ISO 7176-19
    Battery types Two 12 V, deep cycle Gel cell Group 24 (70 Ah)
    Battery charger 8 A, off board
    Electronics VR2 (non-expandable 90 A) and Rnet (expandable 90 A or 120 A)
    Assistive driving package Available with Smart-Track technology
    Specialty controls Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems
    Seat width range Adjustable from 17” to 26” (430 mm to 660 mm) wide
    Power seating options
    and HCPCS codes³    		 HD Power Tilt (E1002),
    HD Power Recline with Mechanical Shear Reduction (MSR) (E1004),
    Combination HD Power Tilt and HD Recline with MSR (E1007),
    HD Center Mount Elevating & Articulating Foot Platform (E1012),
    HD Independent Power Elevating & Articulating Legrests (E1010),
    HD Alta Power Seat Elevation (E2298)
    Seat to floor height range
    (HD Tilt)    		 15.5” to 19.5” (395 mm to 495 mm)
    Seat to floor height range
    (HD Seat Elevate)    		 17” to 20″ (430 mm to 510 mm)
    Seat to floor height range
    (Tilt AND HD Seat Elevate)    		 18.5” or 19.5” (470 mm or 495 mm)
    Component weights4 Standard base width 25.375″ (645 mm): 133 lb (60 kg)
    Batteries: Group 24: 2 x 54 lb (24.5 kg)
    Drive wheel diameter 12.5” or 14” (320 mm or 355 mm)
    Caster wheel diameter 6” or 8” (150 mm or 205 mm)

    1. Subject to variances depending on configuration and manufacturing tolerances.
    2. Dimensions listed are for power base only.
    3. Custom specialized power seating options available.
    4. Contact Customer Service for additional weight information
