- Ultra-compact 20″ (510 mm) turning radius for navigating tight indoor spaces
- Low seat-to-floor height starting at 15.5” (395 mm) for easier transfers
- Weight capacity up to 300 lb (136 kg)

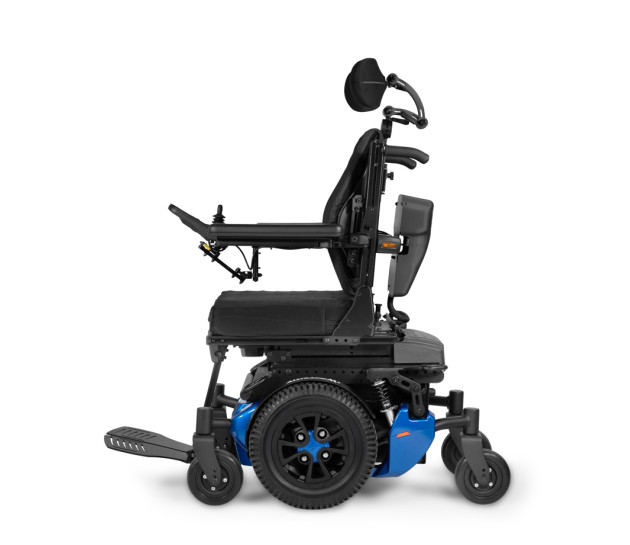

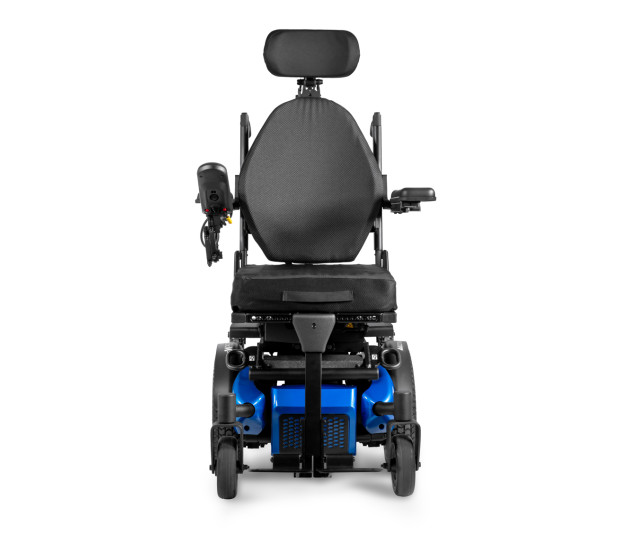

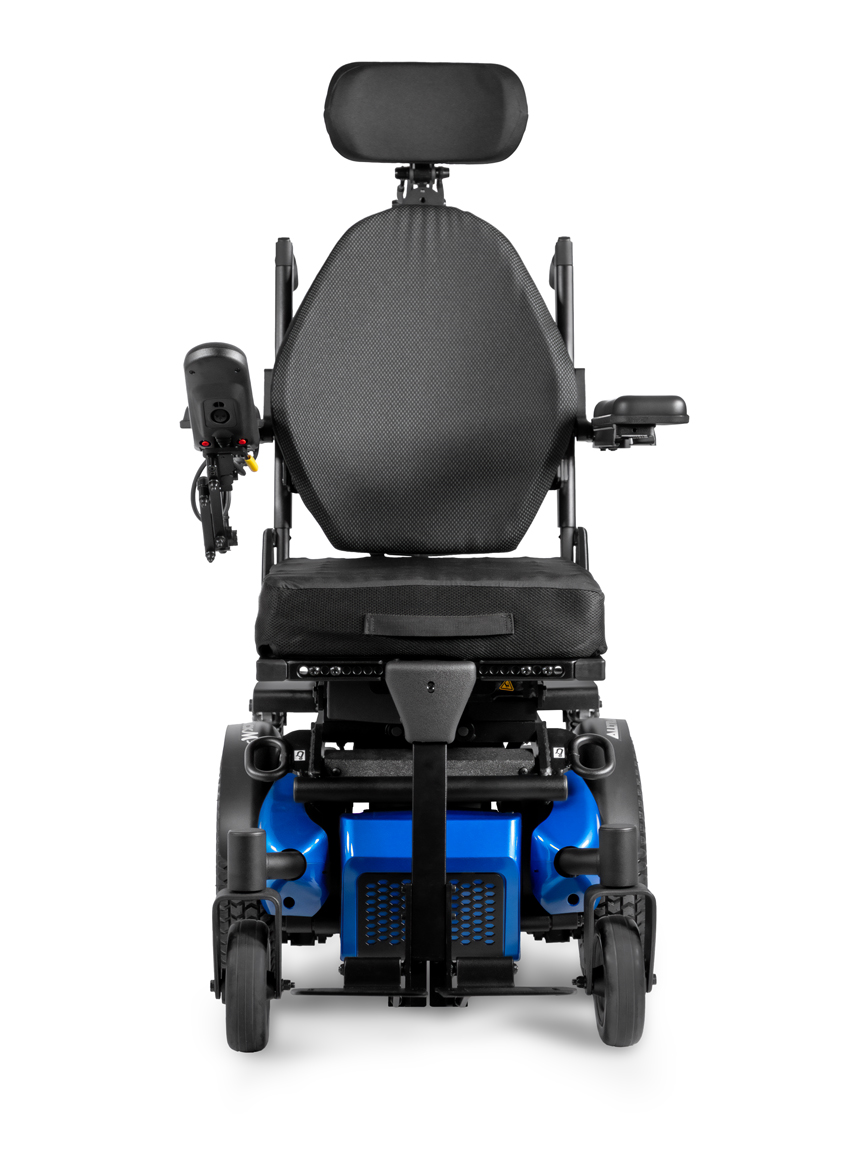

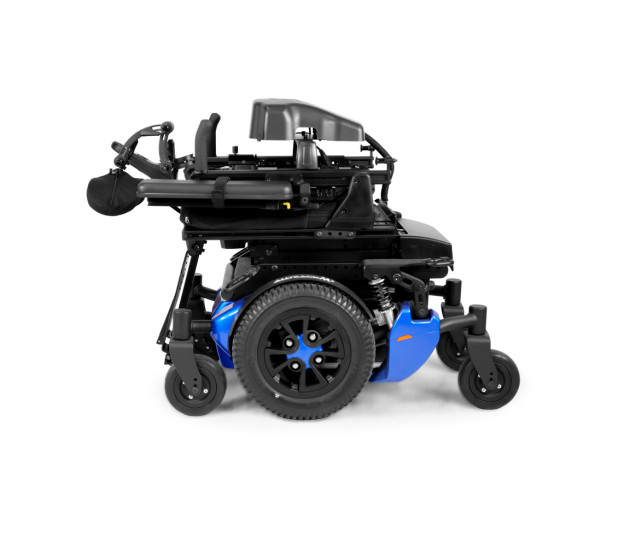

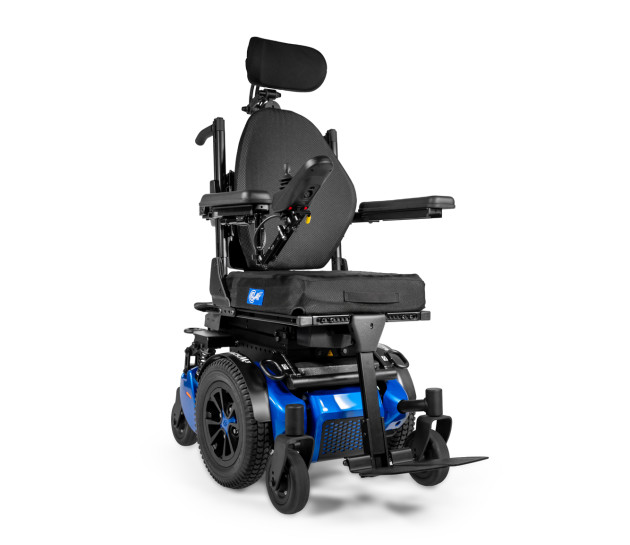

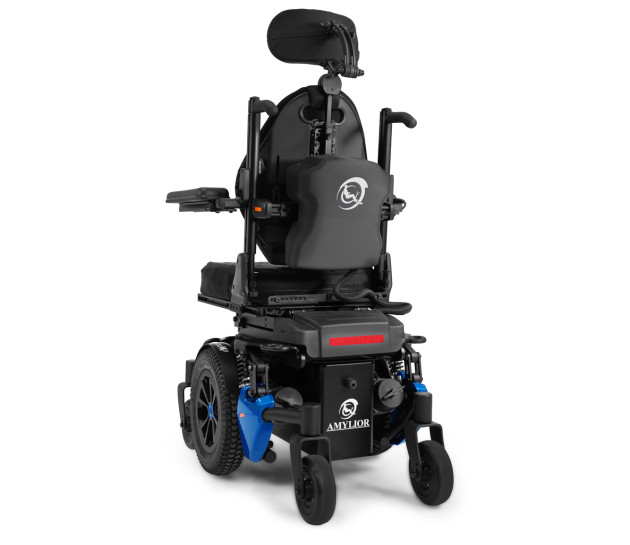

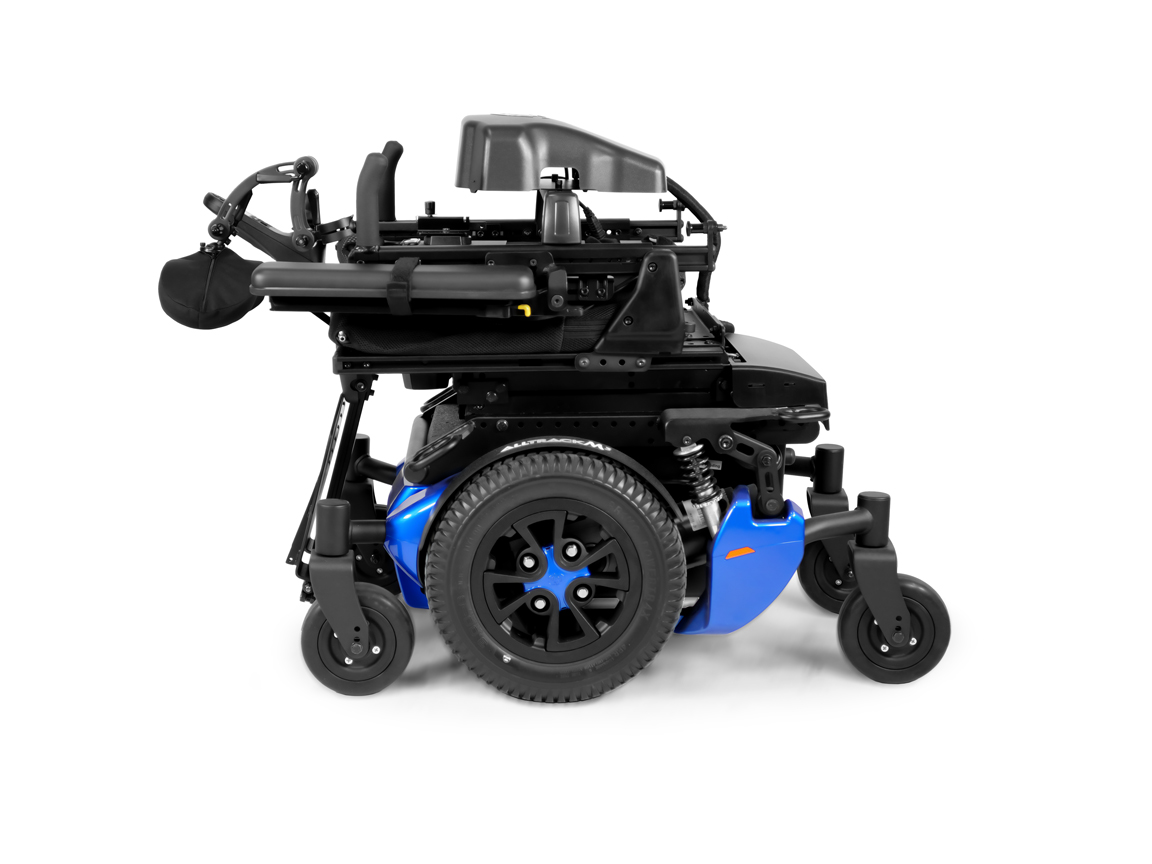

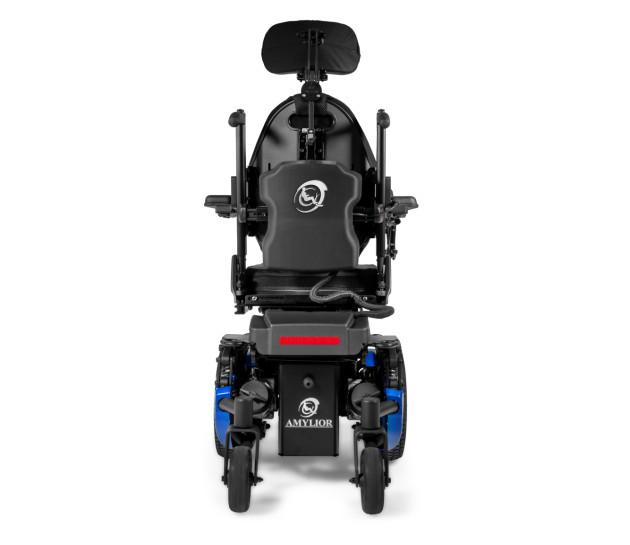

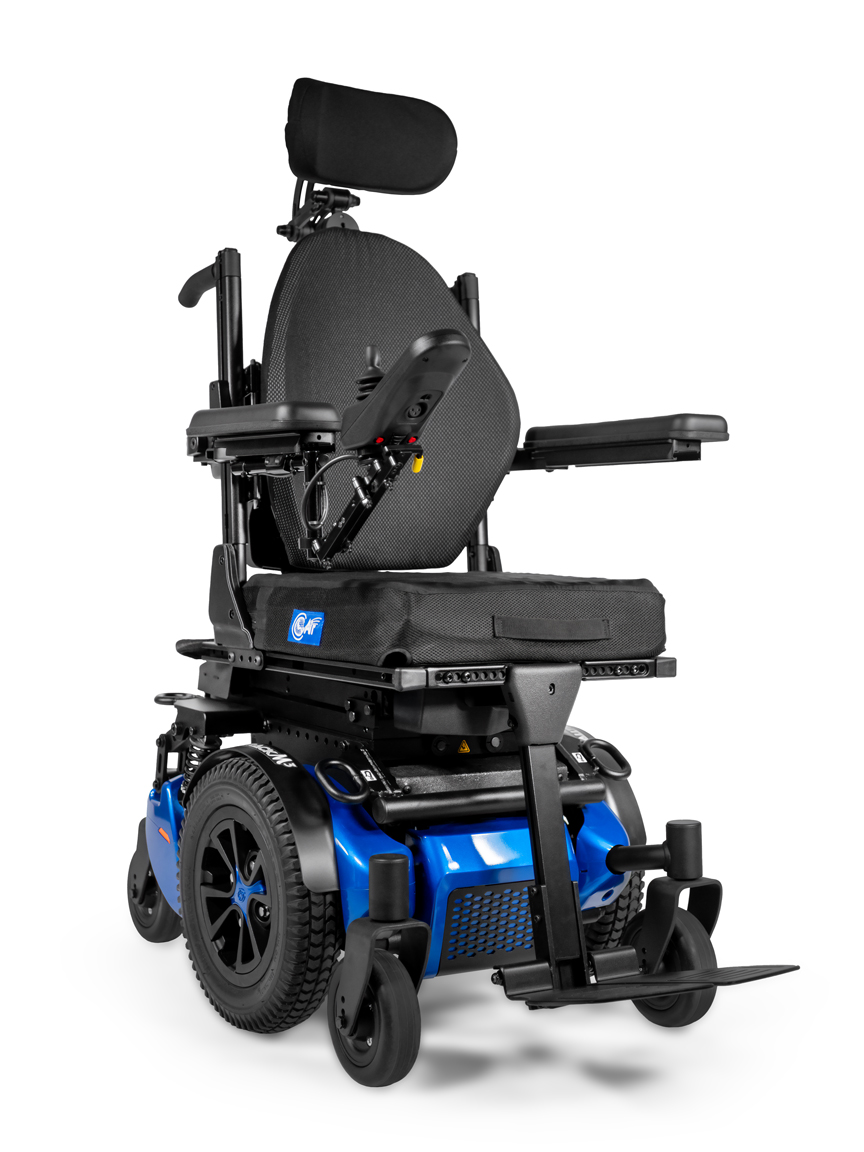

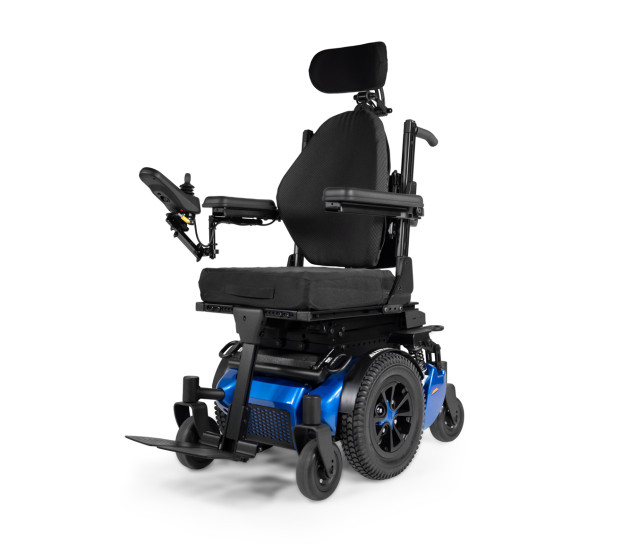

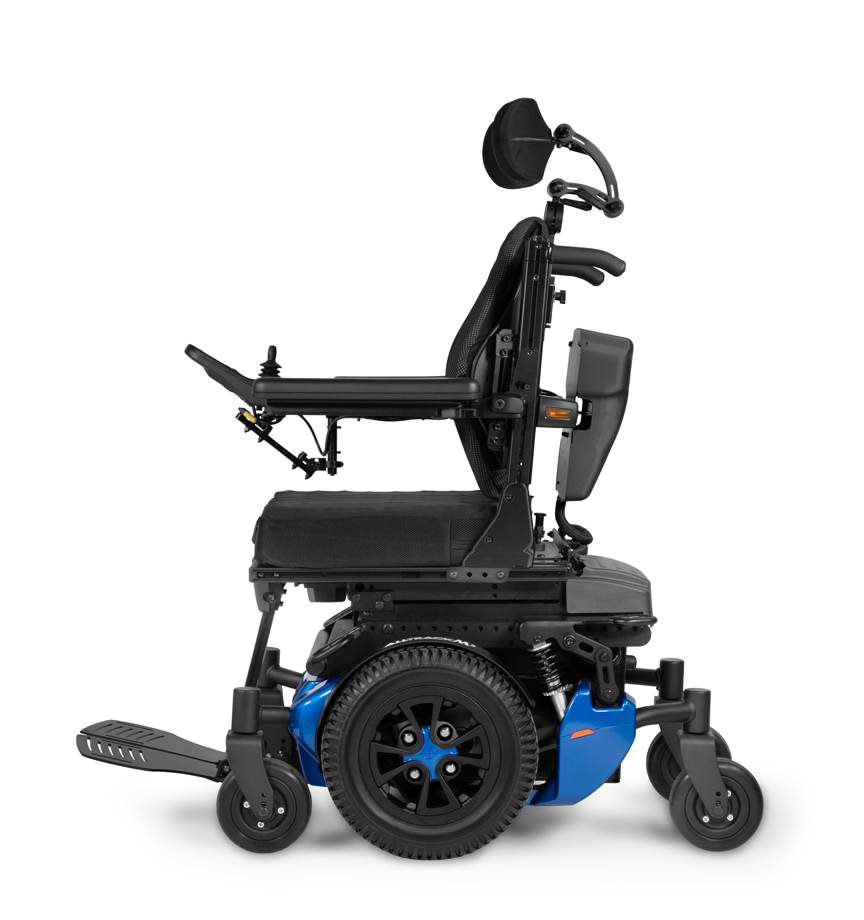

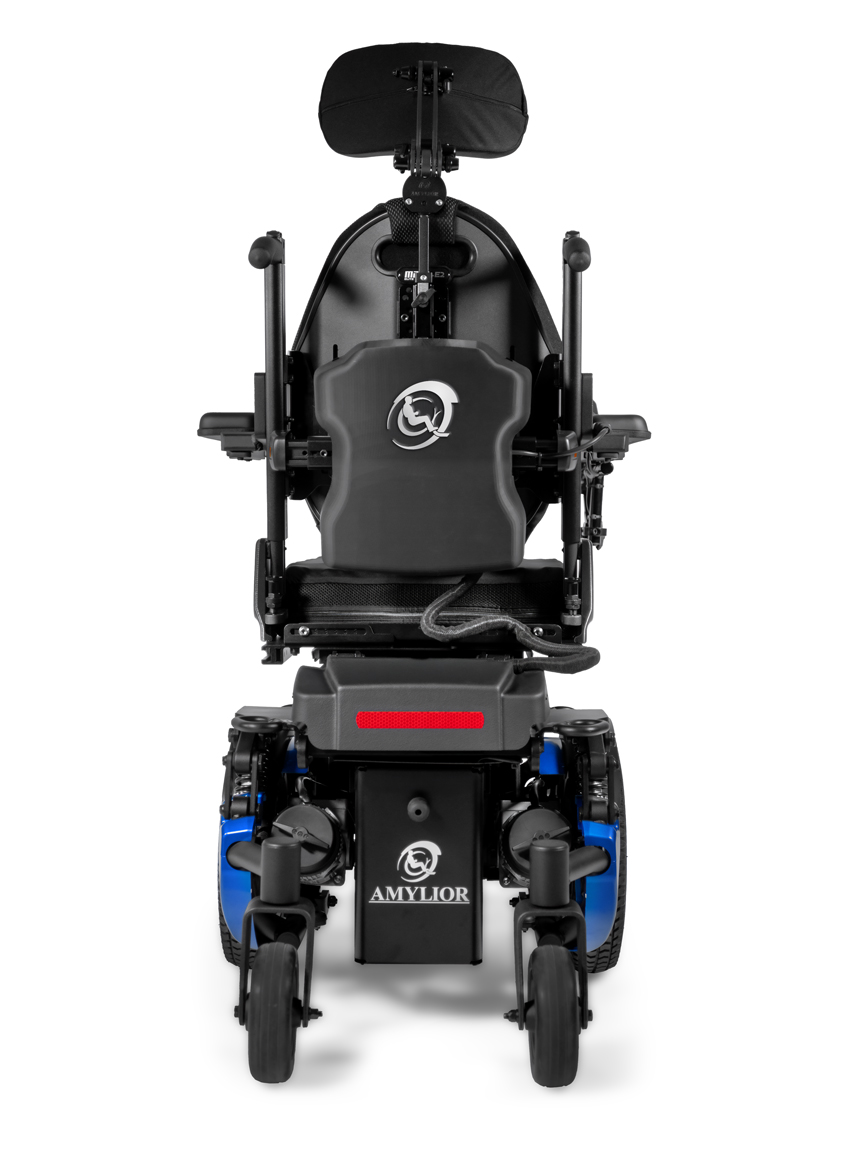

Alltrack M3 Signature (Standard)
Brand: All The Alltrack
Download Brochure
Share This Product
If you require any further information on this product, pricing, shipping or anything else for that matter please don’t hesitate to contact us for a quick reply.
Leading Worldwide Brands
Australia Wide Shipping
High Quality Manufacturing
Custom Made to Measure
-
Description
-
Specifications
-
Review
MID-WHEEL DRIVE POWER WHEELCHAIRS STANDARD
Built to Perform. Designed to Last.
The Alltrack M3 Power Wheelchair is the trusted choice for users seeking unmatched reliability, stability, and versatility. Perfectly balancing tight indoor maneuverability with confident outdoor performance, the M3 is built for everyday life—from tight quarters indoors to unpredictable urban and outdoor terrain. Its patented Dual-Action Suspension effectively absorbs shock and vibration while keeping all six wheels on the ground, delivering a smooth, comfortable and stable ride. With a fully modular design and a wide range of positioning and electronic options, the Alltrack M3 adapts effortlessly to individual needs and lifestyles.
HIGHLIGHTS
| Configuration | Mid-Wheel Drive – Standard (Alltrack M3) |
| HCPCS Codes | K0848/K0856/K0861 |
| Suspension system | Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption |
| Ground clearance1 | 3.5” (90 mm) with 14” (355 mm) drive wheels, 2.875” (75 mm) with 12.5” (320 mm) drive wheels |
| Base width2 | Compact base width 23.375″ (595 mm) with GP 22 batteries Standard base width 25.375″ (645 mm) with GP 24 batteries |
| Base length2 | 35.125” (890 mm) |
| Base turning radius | 20” (510 mm) |
| Weight capacity | 0-300 lb (0-136 kg) |
| 4-Pole motor options | 6.5 mph (10 km/h) Std |
| Transit option | 4-point tie-down attachment points compliant with ISO 7176-19 |
| Battery types | Two 12 V, deep cycle Gel cell Group 22NF (50 Ah) or Group 24 (70 Ah) |
| Battery charger | 8 A, off board |
| Electronics | VR2 (non-expandable 90 A) and Rnet (expandable 90 A or 120 A) |
| Assistive driving package | Available with Smart-Track technology |
| Specialty controls | Compatible with Mo-Vis, ASL, Switch-It and Stealth as well as other current systems |
| Seat width range | Adjustable from 14” to 24” (355 mm to 610 mm) wide |
| Power seating options and HCPCS codes³ |

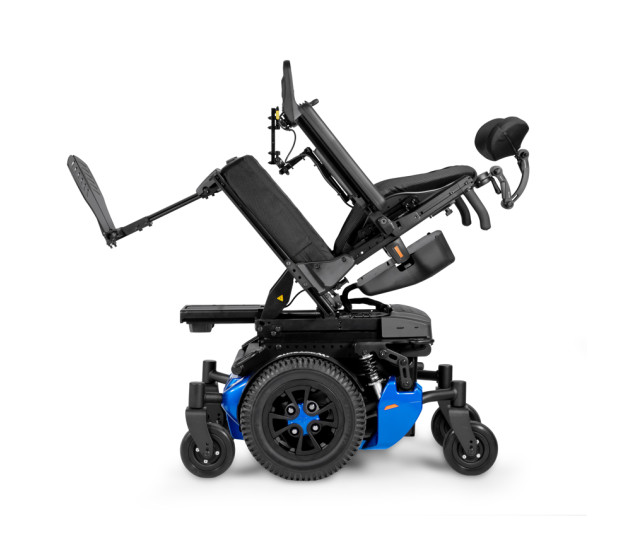

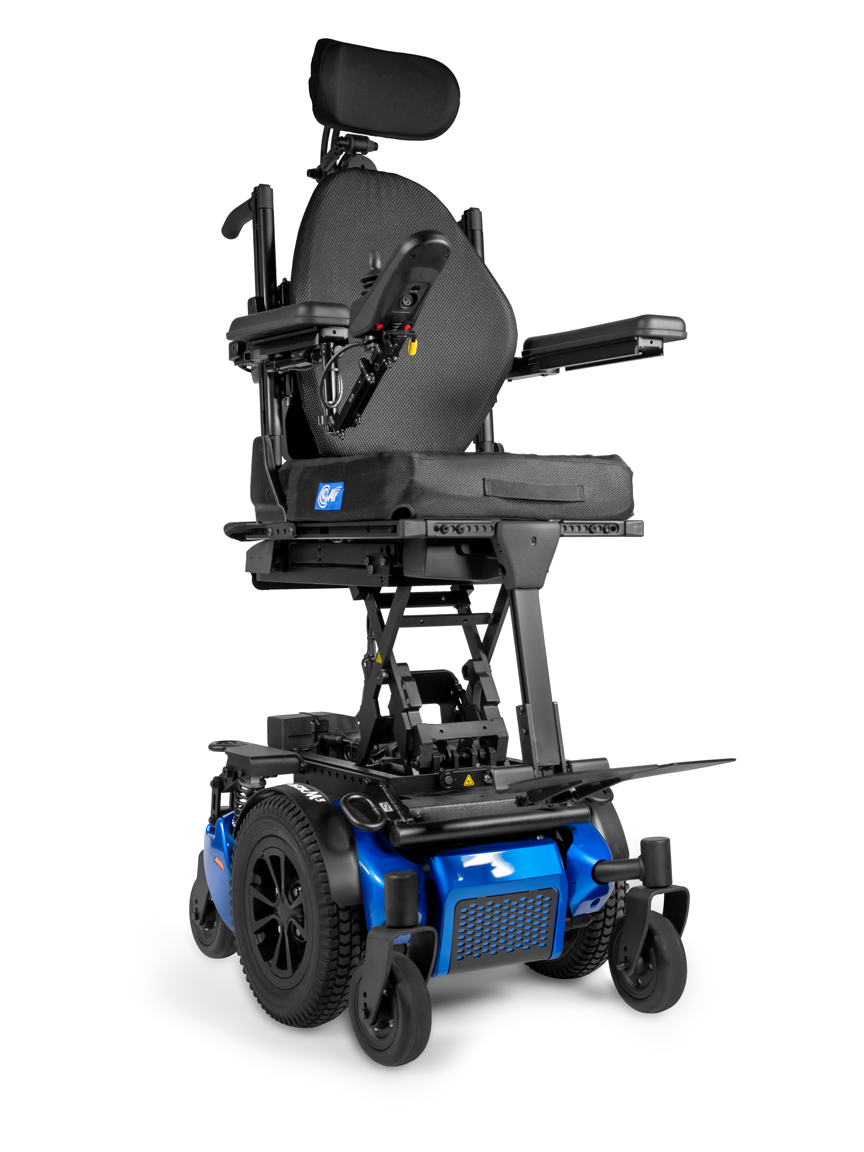

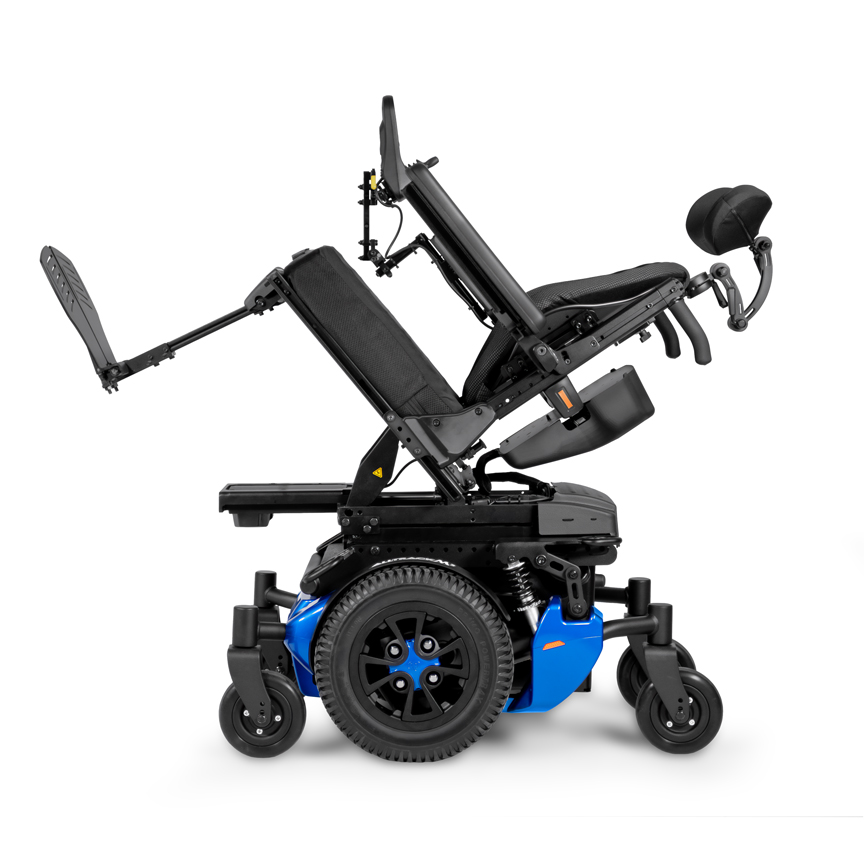

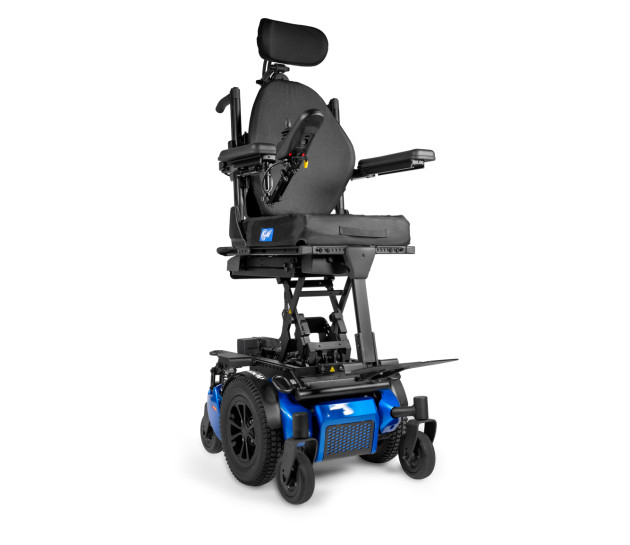

Power Tilt (E1002), Power Recline with Mechanical Shear Reduction (MSR) (E1004), Combination Power Tilt and Recline with MSR (E1007), Center Mount Elevating & Articulating Foot Platform (E1012), Independent Power Elevating & Articulating Legrests (E1010), Alta Power Seat Elevation (E2298) |
| Seat to floor height range (Tilt OR Seat Elevate) |
15.5” to 19.5” (395 mm to 495 mm) |
| Seat to floor height range (Tilt AND Seat Elevate) |
17.5″, 18.5” or 19.5” (445 mm, 470 mm or 495 mm) |
| Component weights4 | Compact base width 23.375″ (595 mm): 128 lb (58 kg) Batteries: Group 22NF: 2 x 36.6 lb (16.6 kg)Standard base width 25.375″(645 mm): 133 lb (60 kg) Batteries: Group 24: 2 x 54 lb (24.5 kg) |
| Drive wheel diameter | 12.5” or 14” (320 mm or 355 mm) |
| Caster wheel diameter | 6” or 8” (150 mm or 205 mm) |
1. Subject to variances depending on configuration and manufacturing tolerances.
2. Dimensions listed are for power base only.
3. Custom specialized power seating options available.
4. Contact Customer Service for additional weight information.
